Page 12 For technical questions, please call 1-800-444-3353. Item 91062
SAFETY OPERATION MAINTENANCESETUP
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Make sure that the Trigger is in the off-position and unplug the tool from its
electrical outlet before performing any procedure in this section.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• loose hardware,
• misalignment or binding of moving parts,
• damaged cord/electrical wiring,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces
of the tool with clean cloth.
3. For Knife changing instructions see Knife
Installation and Adjustment on page 9.
4.
WARNING! If the supply cord of this
power tool is damaged, it must be replaced
only by a qualified service technician.

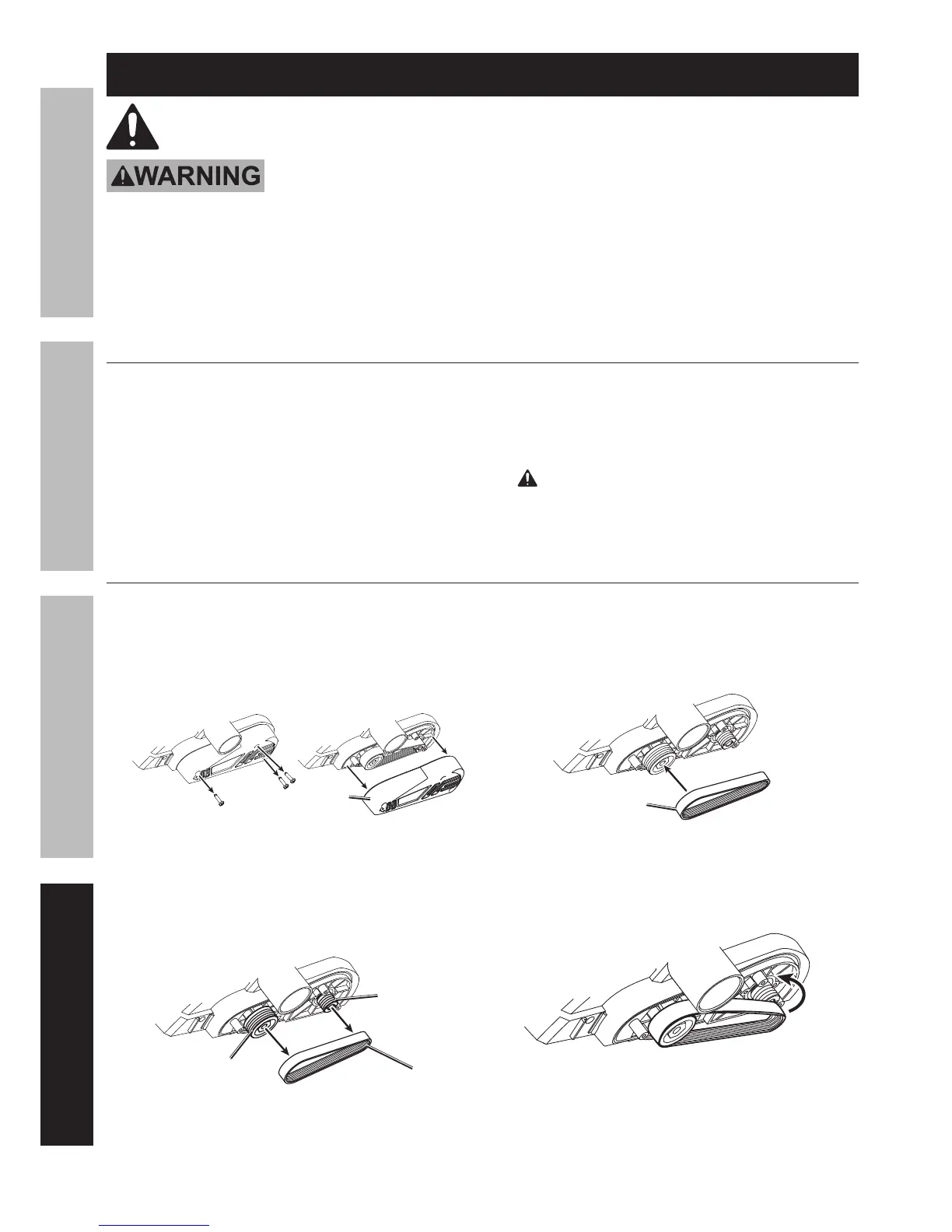

Replacing the Belt
Before beginning, turn the Depth
Adjustment Knob to the “0” setting.
1. Remove the Screws (2) that attach the
Belt Cover (3) to the Planer, then remove
the Belt Cover. See Figure I.
Belt
Cover
(3)
Figure I
2. Remove the worn or broken Belt (4) from
the Large and Small Pulleys (9 and 10).Use
a screwdriver or similar tool to stretch the
Belt slightly to remove it. See Figure J.
Large
Pulley
(9)
Old
Belt
Small
Pulley
(10)
Figure J
3. Clean the Pulleys and the area around them.
4. Place the new Belt around the Large
Pulley, making sure that the Belt is
centered on the Pulley. See Figure K.
New
Belt
Figure K
5. Use a screwdriver or similar tool to stretch the Belt
all the way over the Small Pulley. See Figure L.
Figure L
