SKU 93440 For technical questions, please call 1-800-444-3353. Page 11
To Install And Remove A Drill Or Screwdriver Bit:
Make sure the Trigger (19) is in its “OFF” position, and remove the Battery (27) 1.
from the Drill. (See Figure G.)
Insert a drill or screwdriver bit (not included) into the Keyless Chuck (25), and 2.
secure the bit in the Keyless Chuck by turning the Chuck Sleeve clockwise. To
remove the bit, turn the Chuck Sleeve counterclockwise. (See Figure G.)
The Drill Torque Selector:
1. Set the Torque Selector located on the Gear Box (14). The Torque Selector dial
is indicated by the numbers 1 through 15. The lowest torque position is 1. The
highest torque position is 15. For example, position 1 (lowest torque) is
appropriate for driving screws into wood without stripping the screw. Positions 10
and up (high torque) are appropriate for drilling. Make sure the Drill is completely
stopped before changing torque. (See Figures F and G.)

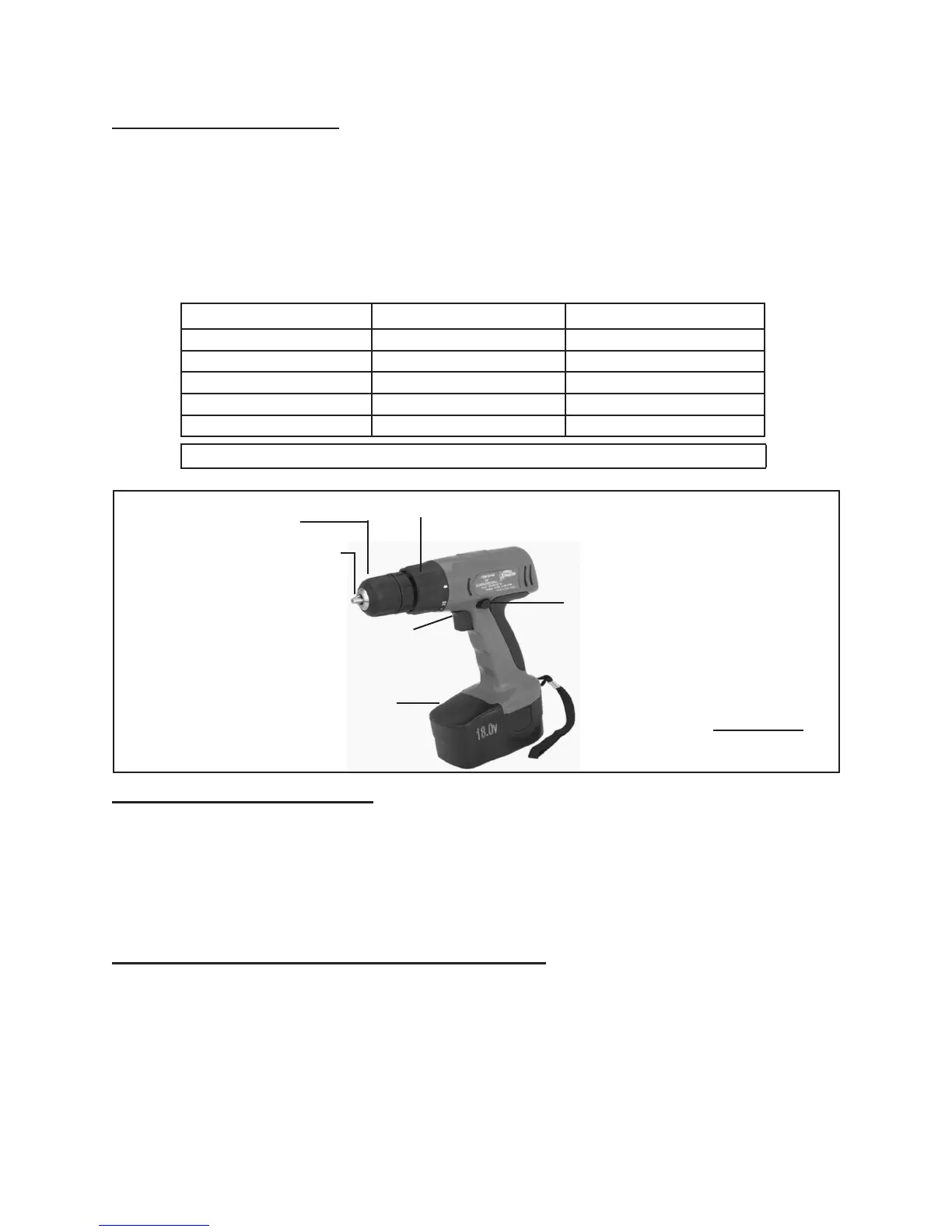

TORQUE SELECTOR
KEYLESS CHUCK
(25)
TRIGGER
(19)
FORWARD/REVERSE SWITCH
(3)
CHUCK SLEEVE
BATTERY
(27)
FIGURE G
The Forward/Reverse Switch:
For a 1. clockwise rotation of the Drill, push the Forward/Reverse Switch (3) to the
left. For a counterclockwise rotation of the Drill, push the Forward/Reverse
Switch to the right. Make sure the Drill is completely stopped before changing
rotational directions. (See Figure G.)
FIGURE F
Torque Setting Guide*
Torque Setting #1 = 16 inch/lbs. Torque Setting #6 = 22 inch/lbs Torque Setting #11 = 27 inch/lbs.
Torque Setting #2 = 17 inch/lbs. Torque Setting #7 = 23 inch/lbs. Torque Setting #12 = 28 inch/lbs.
Torque Setting #3 = 18 inch/lbs. Torque Setting #8 = 24 inch/lbs. Torque Setting #13 = 29 inch/lbs.
Torque Setting #4 = 19 inch/lbs. Torque Setting #9 = 25 inch/lbs. Torque Setting #14 = 30 inch/lbs.
Torque Setting #5 = 20 inch/lbs. Torque Setting #10 = 26 inch/lbs. Torque Setting #15 = 35 inch/lbs.
* All torque settings are + or - 2 inch/lbs.
