SPECIFICATIONS
Input 120 V~, 60 Hz, 4.2 A
Motor 2,800 RPM; double insulated
Impact
Performance
44,800 BPM
Trigger forward / reverse lever; Trigger lock button
Chuck Keyed,
1
/
16
” to
1
/
2
” capacity
Side Handle Adjustable 360°; Adjustable depth rod
Power Cord Six feet long, 2-prong polarized plug
UNPACKING
When unpacking, check to make sure that the following parts are included: Impact Drill,
Side Handle, Chuck Key, and Depth Rod. Refer to the Assembly section, and the Assembly
Drawing and Parts List at the end of this manual. If any parts are missing or broken, please
call Harbor Freight Tools at the number on the cover of this manual as soon as possible.

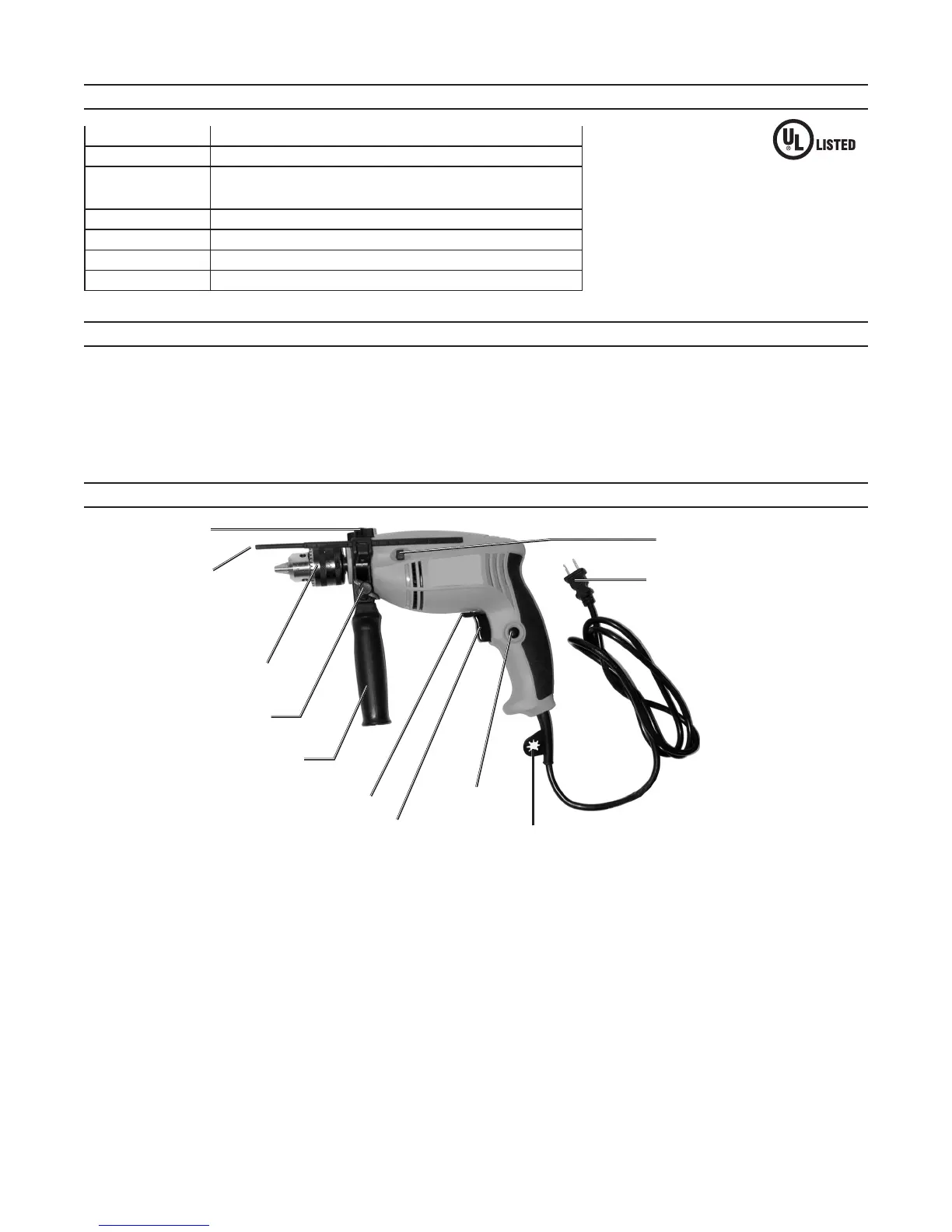

CONTROLS AND INDICATORS
Depth Rod (30)
Chuck (3)
Side Handle (31)
Adjustment Knob
Side
Handle (31)
Forward / Reverse Lever
Trigger
Switch (23)
Lock-on
Button
Two-prong Power Cord (27)
Drill / Impact Button (15)
Chuck Key
Holder
Depth Rod Nut
REV 06f, 10g
E194601
18JU
