DRI-STEEM GTS Humidifier Installation, Operation, and Maintenance Manual • Page 9
Dimensions

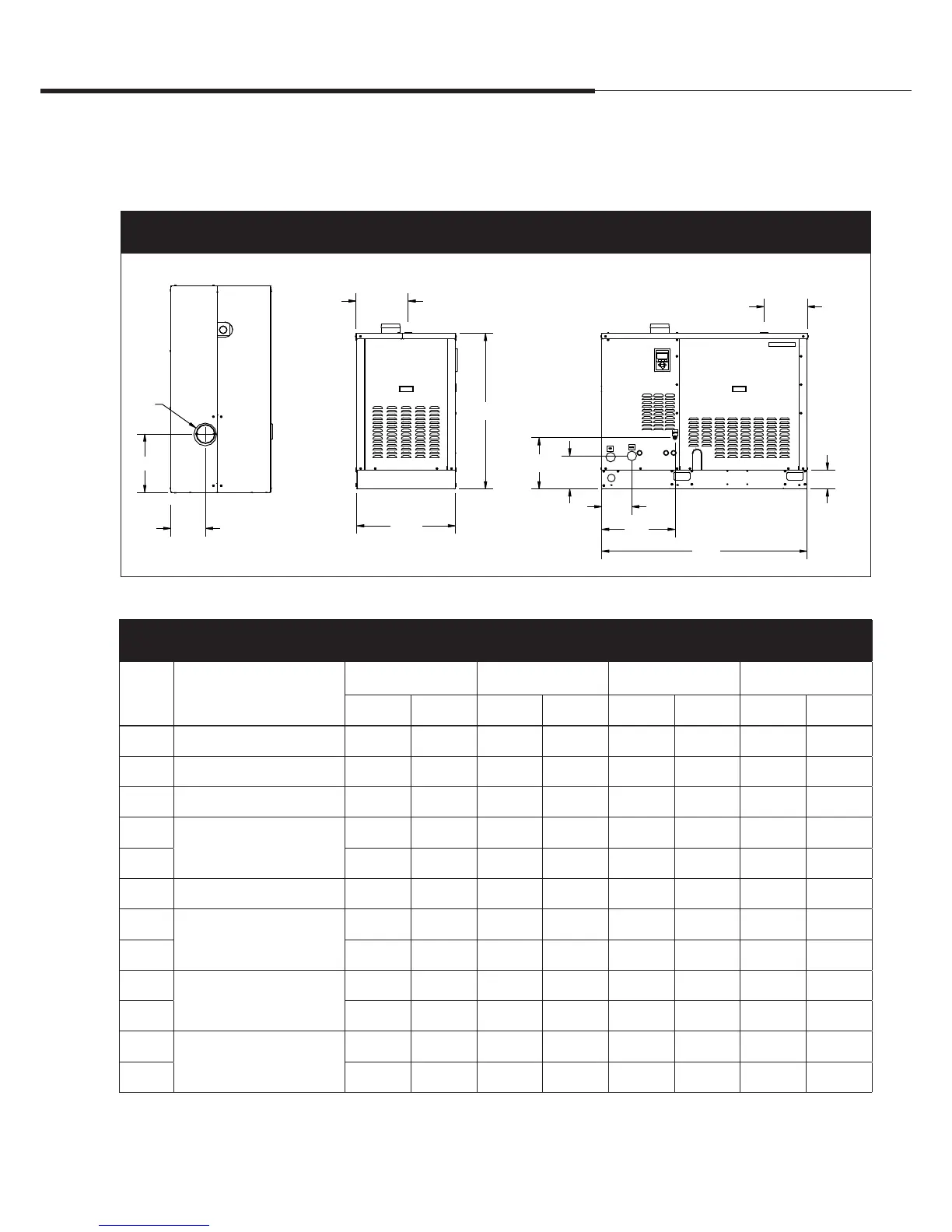

Figure 9-1:
Dimensions
J
E
F
D
G
C
K
A
B
Side viewFront viewTop view
Table 9-1:
Dimensions
Description
GTS-100
GTS-200
GTS-300
GTS-400
GTS-500
GTS-600
GTS-700
GTS-800
inches mm inches mm inches mm inches mm
A Overall length 54.35 1380 54.35 1380 54.35 1380 54.35 1380
B Overall width 26.38 670 32.38 822 42.38 1076 48.38 1229
C Shroud height 41.00 1040 41.00 1040 41.00 1040 41.00 1040
D
Flue position
18.00 457 17.00 432 17.00 432 16.25 413
E 13.00 330 15.63 397 18.63 475 21.00 533
F Flue diameter 5.00 127 7.00 178 8.00 203 10.00 254
G
Steam outlet position
14.00 356 20.50 521 29.25 743 35.25 895
H 11.63 295 11.63 295 11.63 295 11.63 295
J
Fill valve connection position
13.00 330 13.00 330 13.00 330 13.00 330
K 13.00 330 13.00 330 13.00 330 13.00 330
L
Drain position
8.75 222 8.75 222 8.75 222 8.75 222
M 8.00 203 8.00 203 8.00 203 8.00 203
OM-1203
H
L
M
5"
(127 mm)
