DRI-STEEM GTS Humidifier Installation, Operation, and Maintenance Manual • Page 17

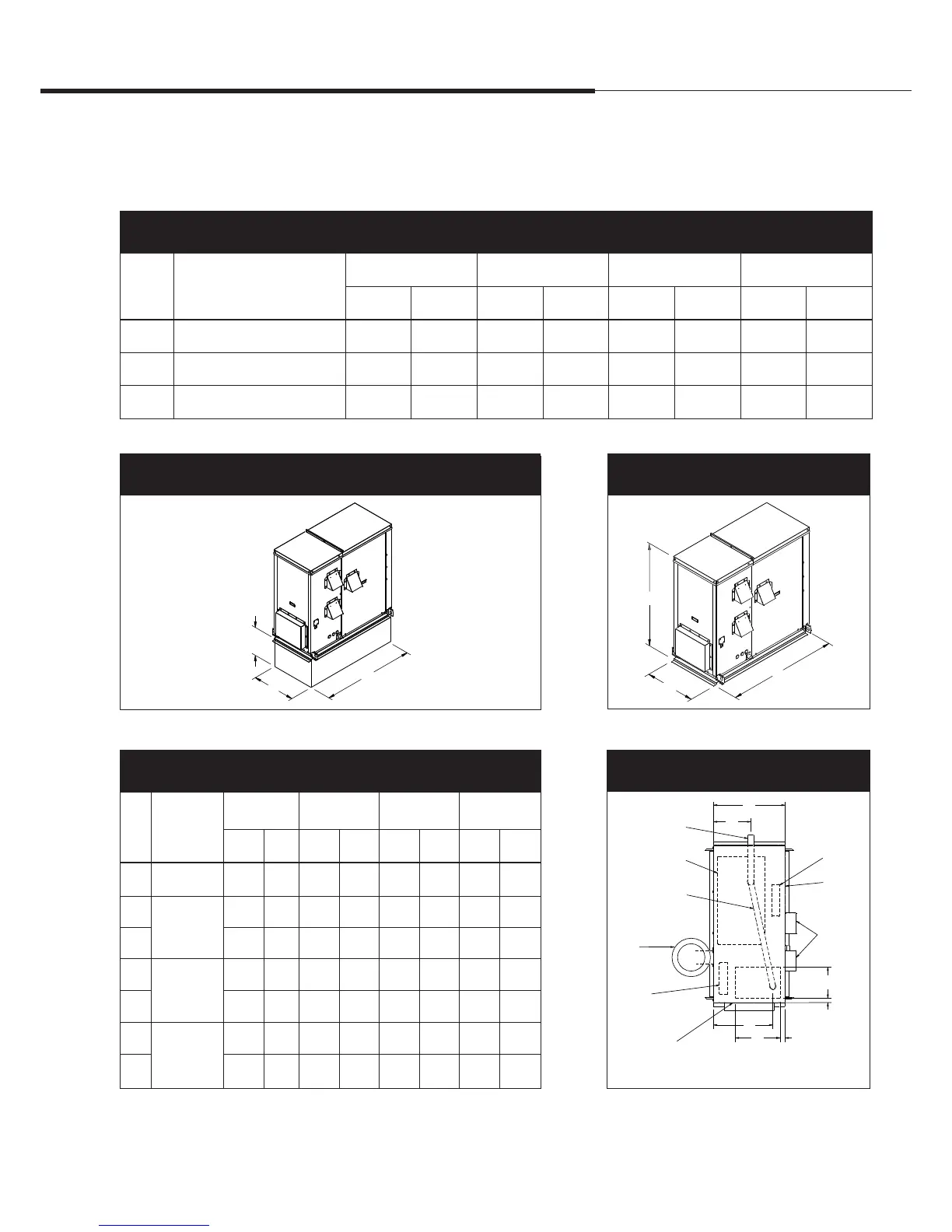

Outdoor enclosure mounting
Table 17-1:
Outdoor enclosure dimensions
Description
GTS-100
GTS-200
GTS-300
GTS-400
GTS-500
GTS-600
GTS-700
GTS-800
inches mm inches mm inches mm inches mm
A Enclosure height 54.63 1388 54.63 1388 54.63 1388 54.63 1388
B Enclosure width 26.00 660 32.00 813 42.00 1067 48.00 1219
C Enclosure length 57.25 1454 57.25 1454 57.25 1454 57.25 1454
OM-7431
Figure 17-1:
Outdoor enclosure mounted on a curb
14"
(356 mm)
C
B
Figure 17-2:
Outdoor enclosure mounted flush
OM-7430
A
B
C
Table 17-2:
Outdoor enclosure top view dimensions
Description
GTS-100
GTS-200
GTS-300
GTS-400
GTS-500
GTS-600
GTS-700
GTS-800
inches mm inches mm inches mm inches mm
T
Enclosure
width
26.00 660 32.00 813 42.00 1067 48.00 1219
U
Pipe chase
position
3.00 76 3.00 76 3.00 76 3.00 76
V 3.00 76 3.00 76 3.00 76 3.00 76
W
Pipe chase
size
16.00 406 16.00 406 16.00 406 16.00 406
X 11.00 279 11.00 279 11.00 279 11.00 279
Y
Steam pipe
position
14.12 359 20.12 511 30.12 765 36.12 917
Z 21.00 533 27.00 686 37.00 940 43.00 109
Figure 17-3:
Outdoor enclosure top view
Y
T
Control
panel
heater
Access
panel
door
Exit for standard
steam outlet
GTS
humidifier
Exit for optional
steam outlet
(through pipe chase)
X
Z
W
U
V
Access panel
door
Intake
ventilation
fans
Burner
section
heater
Flue
(by installer)
OM-7432
Installation
