DRI-STEEM GTS Humidifier Installation, Operation, and Maintenance Manual • Page 29

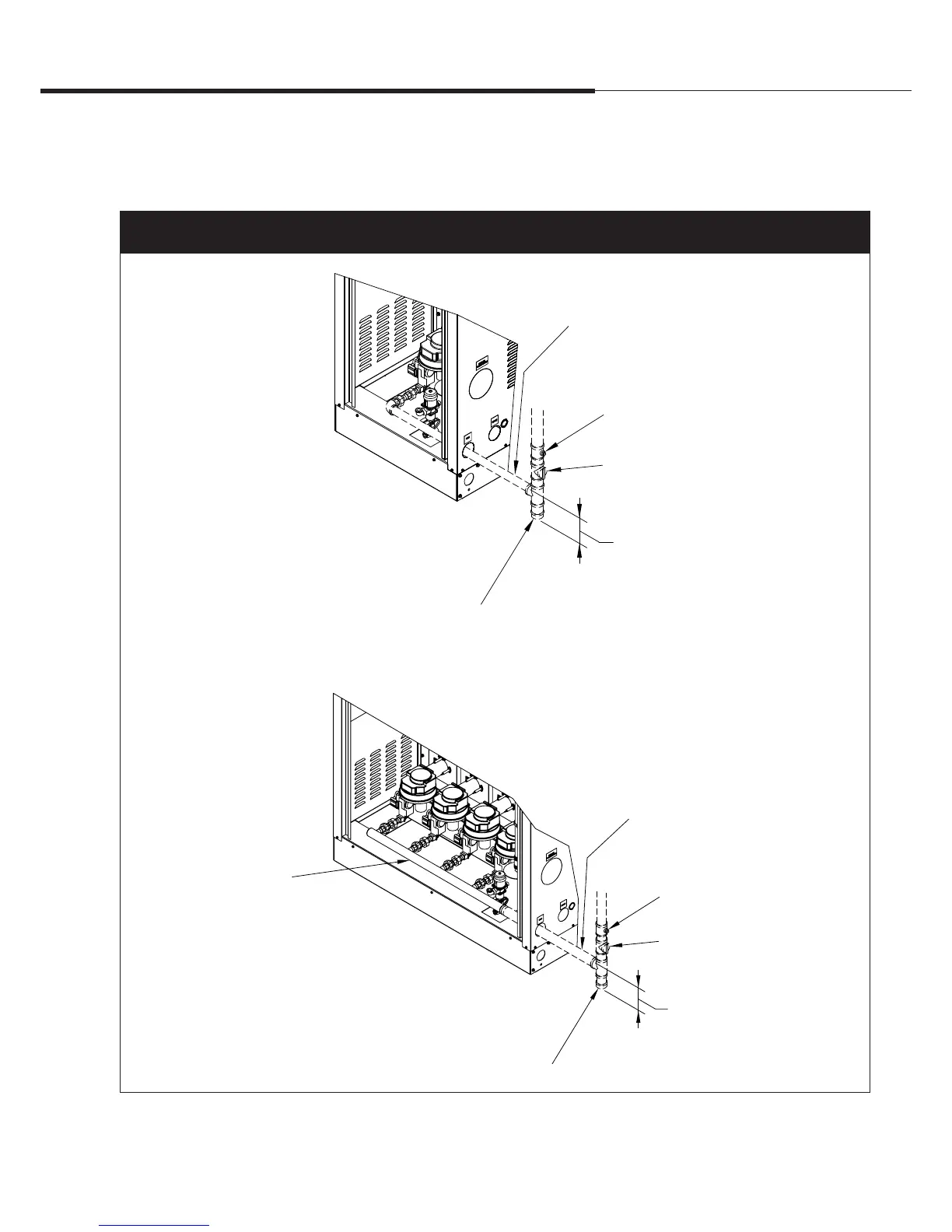

Figure 29-1:
GTS gas piping
OM-1236
GTS or GTS-DI models 100, 200
OM-1235
GTS or GTS-DI models 300-800
Note:
Dashed lines indicate supplied by installer
Drip pocket
3” (76 mm) min.
Plugged test
gauge connection
½” pipe thread (DN15) piping
Manual gas shutoff valve
Drip pocket
3” (76 mm) min.
Plugged test
gauge connection
See Table 22-1 for
pipe size by model
Gas manifold (by DRI-STEEM)
Installation
Piping:
Gas piping
Manual gas shutoff valve
