Drive Ambassador User Manual

Ambassador Electric Scooter Page 10 of 16 Owner’s Handbook (Code: Ambassador_IFU)

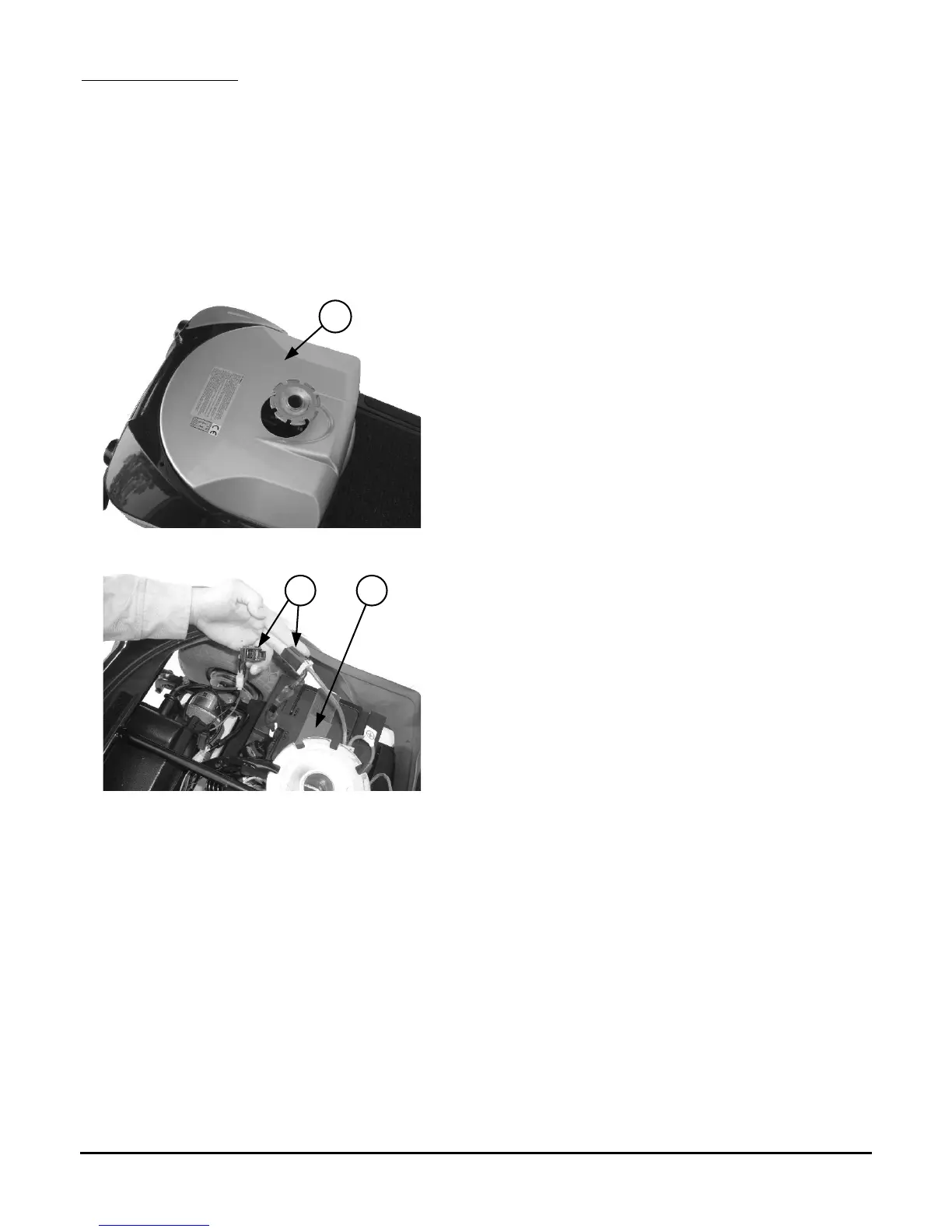

Removing the Batteries
1. Switch off the scooter at the ignition and
remove the seat.
2. Lift up the battery cover (A)
3. Disconnect the black battery connectors (B)
and red battery connectors.
4. Remove the velcro straps (C) from the
battery and pull the battery out.
A
B C
Cleaning the Battery
If the batteries are contaminated by water, battery acid,
dust or other substances, they will discharge quickly.
The batteries supplied with the scooter are sealed and
as such are maintenance free with no risk of battery
leakage. Please follow the steps below to clean the
battery:
1. Remove the batteries following the procedure
above.
2. Clean the battery with a clean cloth. If the
terminal is covered by white powder, wipe it
clean using warm water.

Drive Ambassador Specifications

General

Weight Capacity	120 kg
Overall Length	1200 mm
Overall Width	600 mm
Drive Wheels	Rear
Range	40 km
Max Load	120 kg
