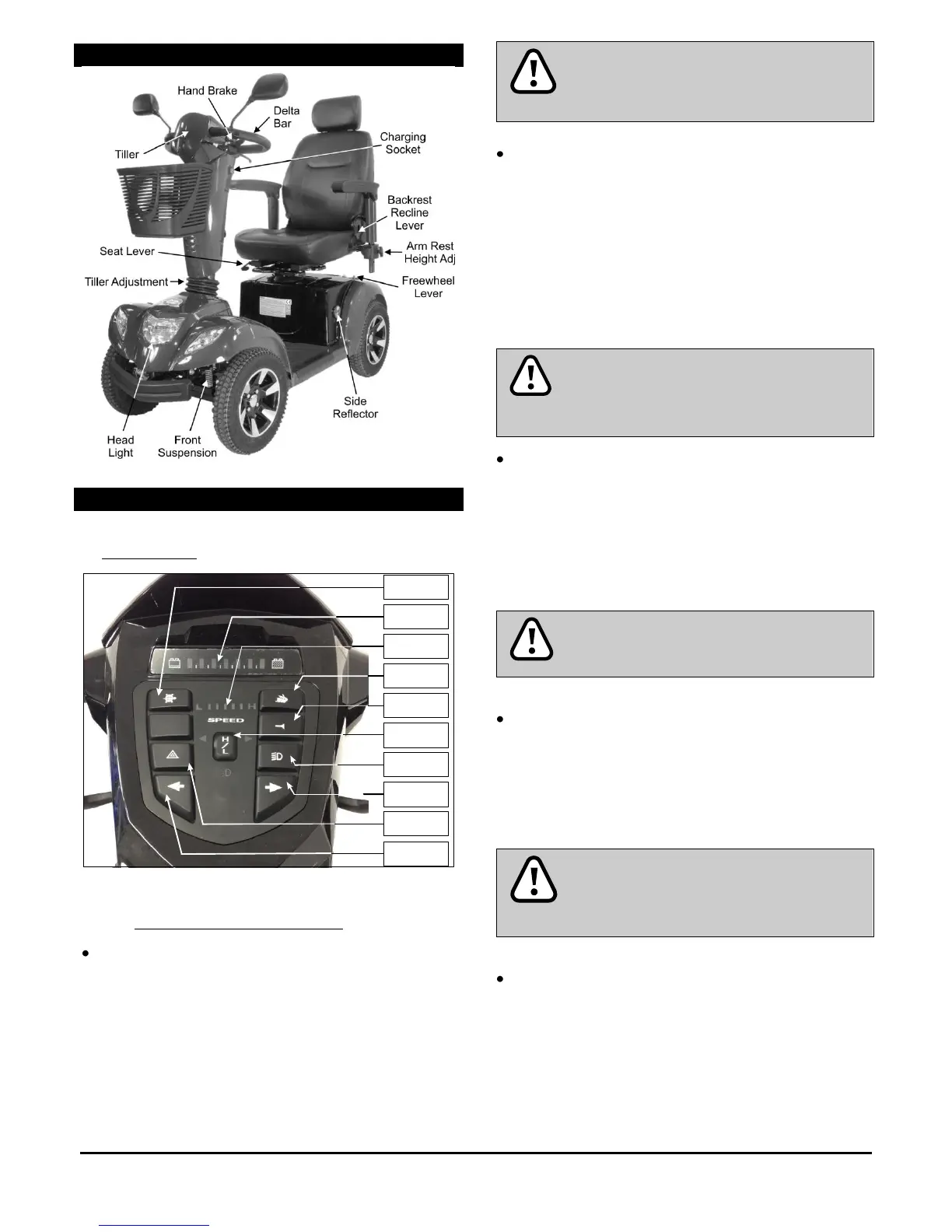

Ambassador Electric Scooter Page 5 of 16 Owner’s Handbook (Code: Ambassador_IFU)
3. PARTS INTRODUCTION
4. OPERATION
4.1 Control Panel
LOW SPEED
TOP SPEED
DISPLAY
HARE
BUTTON
HORN
HIGH / LOW
SPEED
LIGHTS
BUTTON
RIGHT
INDICATORS
HAZARD
WARNING
LEFT
INDICATORS
BATTERY
GAUGE
LOW SPEED
TORTOISE
BUTTON
4.2 How To Operate Your Scooter
Key Ignition. The key ignition acts as the power
switch for the scooter. To switch the power on, turn
the key clockwise and control panel should
illuminate. To switch the power off, turn the key
anticlockwise, after which the control panel should
switch off and the key can be removed.
Do not turn the ignition off whilst driving
as this will lead to an emergency stop and
possible risk of damage or injury.
Wigwag Paddle. The scooter is propelled by the
user operating the wigwag paddle at the bottom of
the control panel. To move the scooter forward,
move the right hand side of the paddle towards the
user. To reverse the scooter, move the left hand
side of the lever. The further the paddle moves, the
faster the scooter will travel. To stop the scooter,
release the wigwag paddle and the
electromagnetic brake will apply automatically.
Warning
Do not push both left and right hand
sides of the wigwag simultaneously. You
will not be able to control the scooter.
Braking. The electromagnetic brake will stop the
scooter when the wigwag paddle is released. The
brake is also automatically applied when the
scooter is switched off. In the event of an
emergency, the user can stop the scooter by
operating the hand brake located on the left hand
side of the tiller handlebars.
When on a gradient, never set the vehicle
to freewheel mode. The brakes will not be
applied.
Top Speed Setting. The top speed of the scooter
can be increased by pressing the Hare button, or
reduced by pressing the Tortoise button. The top
speed is displayed on the control panel. The more
segments of the display that are lit, the faster the
scooter will go.
Do not adjust the speed setting whilst
driving as this could result in loss of
control. Do not set the highest speed
whilst driving indoors.
High / Low Speed Setting. When the scooter is
used indoors or in pedestrian environment (such as
on the pavement or in a shopping mall) the Low
speed setting should be engaged. When the scooter
is used on the road, the high speed setting may be
engaged.
