Ambassador Electric Scooter Page 6 of 16 Owner’s Handbook (Code: Ambassador_IFU)
To engage the Low Speed Setting, press the bottom
half of the button (marked ‘L’) and this will limit the
scooter’s top speed to 4mph.
To engage the High Speed Setting, press the top
half of the button (marked ‘H’) and this will allow the
scooter to have an 8mph top speed.
Warning
Always engage the Low Speed setting
when travelling indoors or the
pavement. This is a legal requirement.
Horn Button. Press the horn button to sound the
horn, Release the button to stop the horn.
Indicator Buttons. Use the relevant indicators when
making a turn to show your direction of travel. Press
the Right or Left Indicator button once to operate
the relevant indicators. Press the same button
again to stop the indicators.
Lights Button. Press the Lights button once to
switch on the lights. Press the button again to
switch off the lights.
Hazard Warning Button. Press the Hazard Warning
button once to switch on the warning function.
Press the button again to switch off the function.
When operating the Hazard Warning will flash all
of the indicators and sound the horn.
Battery Gauge. The amount of power remaining in
the battery is shown by this gauge. A fully charged
battery will show all the segments of the gauge lit,
and the number of segments lit will reduce as the
power decreases.
If the battery gauge flashes but the scooter will still
drive, then this indicates low battery power and the
batteries should be recharged immediately. If the
battery gauge flashes and the scooter will not drive,
the LED will flash a number of times then pause.
Count the number of flashes to determine the
problem, and refer to the troubleshooting guide.
Contact your dealer if the error persists after
following the recommendations in the
troubleshooting guide.

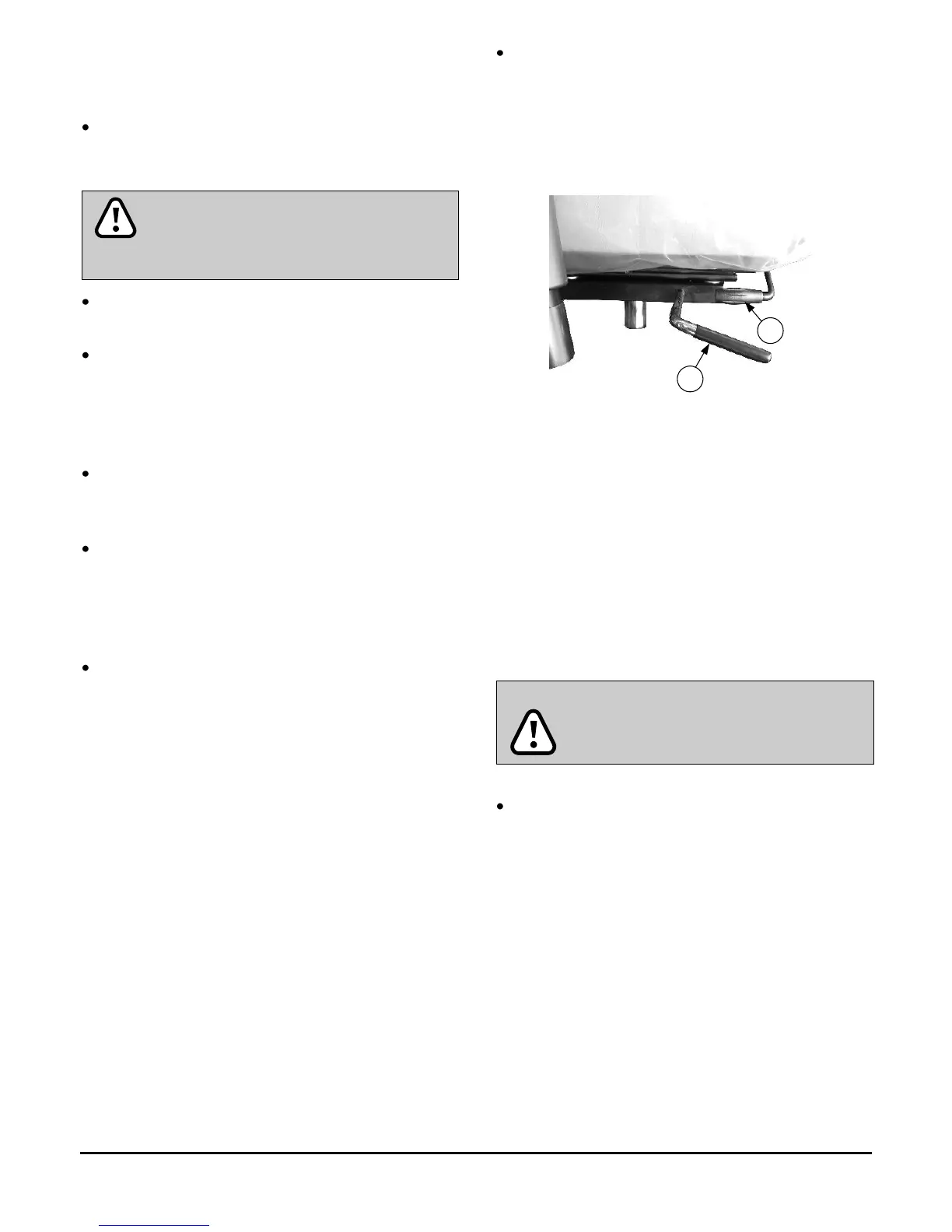

Seat.
The seat can rotate 360° and locks in 45° settings. To
rotate, lift up the lever (A) located underneath the
right hand side of the seat and swivel seat. Release
the lever and carry on swivelling the seat until it
locks in position.
A
B
You can adjust the amount of legroom on the
scooter by sliding the seat back and forth. To slide
the seat, lift up the seat sliding handle (B). Then
adjust the seat to correct position, release the
handle and continue sliding the seat until it locks in
position.
To alter the backrest angle, pull up on the seat
recline lever, then adjust the backrest to the
required position and release the lever. Please note
if nobody is using the backrest when the lever is
operated, it will automatically spring the backrest
forward to fold the seat.
Attention.
Return the seat to the forward position
before driving.
Armrest Adjustment.
To adjust the height of the armrest, loosen the
adjustment knob on the side of the armrest by
turning anticlockwise. Adjust the armrest to the
required height and tighten the adjustment knob by
turning clockwise.
To adjust the angle of the armrest, flip up the
armrest and reposition the jam nut with a spanner to
alter the angle of the armrest.

Drive Ambassador Specifications

General

Weight Capacity	120 kg
Overall Length	1200 mm
Overall Width	600 mm
Drive Wheels	Rear
Range	40 km
Max Load	120 kg
