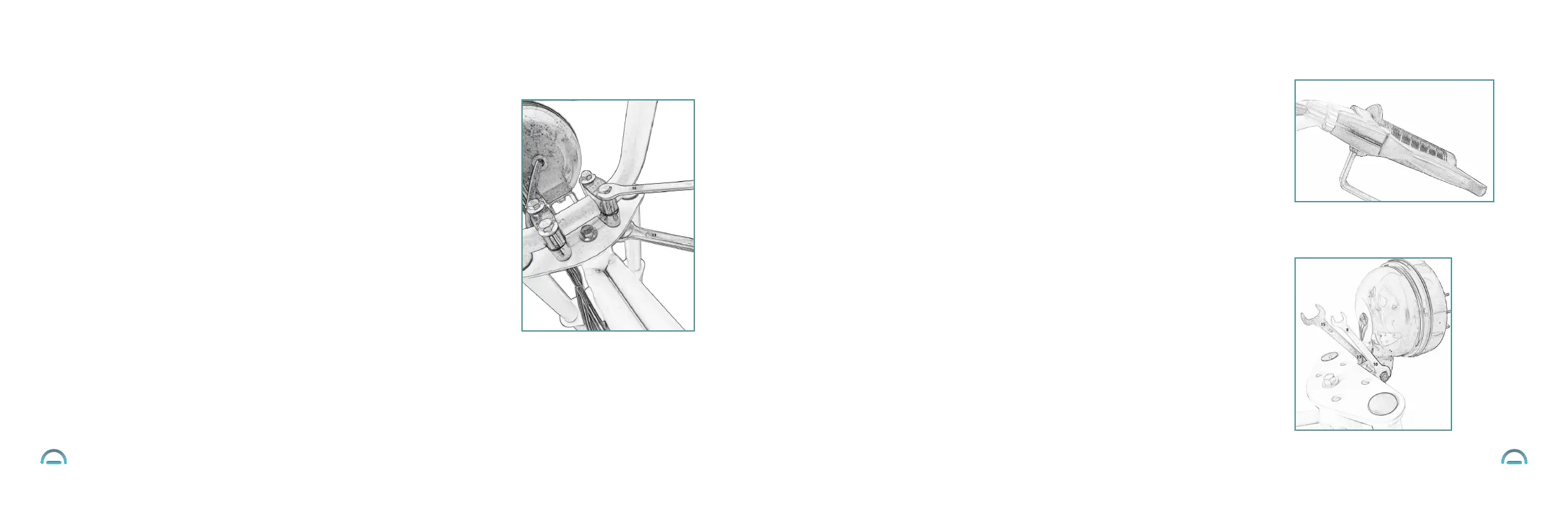

Step two: Installing the handlebar
• Locate the handlebar, handlebar clamps, 10 mm wrench, and 13 mm wrench.
•
Position the handlebar so that the accelerator lever is on the right and brake lever
•
Place the handlebar directly on top of the bracket behind the headlight.
•
Position the top and bottom ends of the clamps onto the center of the handlebar,
so the bottom ends are beneath the handlebar, and the top ends sit directly over
the handlebar. (The clamps are identical, so each one can be affixed on either
side.) The holes in both sets of clamps should align with the holes in the bracket.
•
Locate all four handlebar screws and pass each screw through the aligned holes
•
Thread each nut onto each screw from the bottom.
•
Simultaneously use the 13 millimeter wrench to brace each screw from the bottom,
•
Ensure that the handlebar is fully and tightly installed by pulling on it.
There should be no looseness.
Step three: Tightening the brake lever
• Locate the brake lever and 5 mm allen wrench.
• The brake lever is already pre-installed on the left side of the handlebar,
with the lever facing outward.
• Ensure the brake lever screw hole is aligned.
• Using the 5 mm allen wrench, fully tighten the screw from the bottom.
•
Ensure that the brake lever is fully and tightly installed by pulling on it.
There should be no looseness.
Step four: Adjusting the headlight
•
Locate the 10 mm wrench and 13 mm wrench.
•
The headlight is already pre-installed onto the frame, folded in the
downward position.
•
Fold the headlight up, so the headlight is facing outward.
•
Locate the pre-installed screw and nut at the base of the headlight.
•
Simultaneously use the 13 mm wrench to brace the screw, and use the 10 mm
wrench to tighten the nut. Continuously rotate the wrench until the nut is fully tightened.
•
Ensure that the headlight is fully and tightly installed by pulling on it.
There should be no looseness.
•
The headlight switch is located beneath the battery level indicator on the
right handlebar. (Note that the headlight switch will NOT turn on the headlight
while the product is powered off.)
•
Disassemble the handlebar clamps, so that all parts - including screws and nuts -
are separated.
is on the left.
from the top.
and use the 10 millimeter wrench to tighten each nut from the top. Continuously
rotate the wrench until all nuts are fully tightened.
