The six installation possibilities
B
A
1
3
2

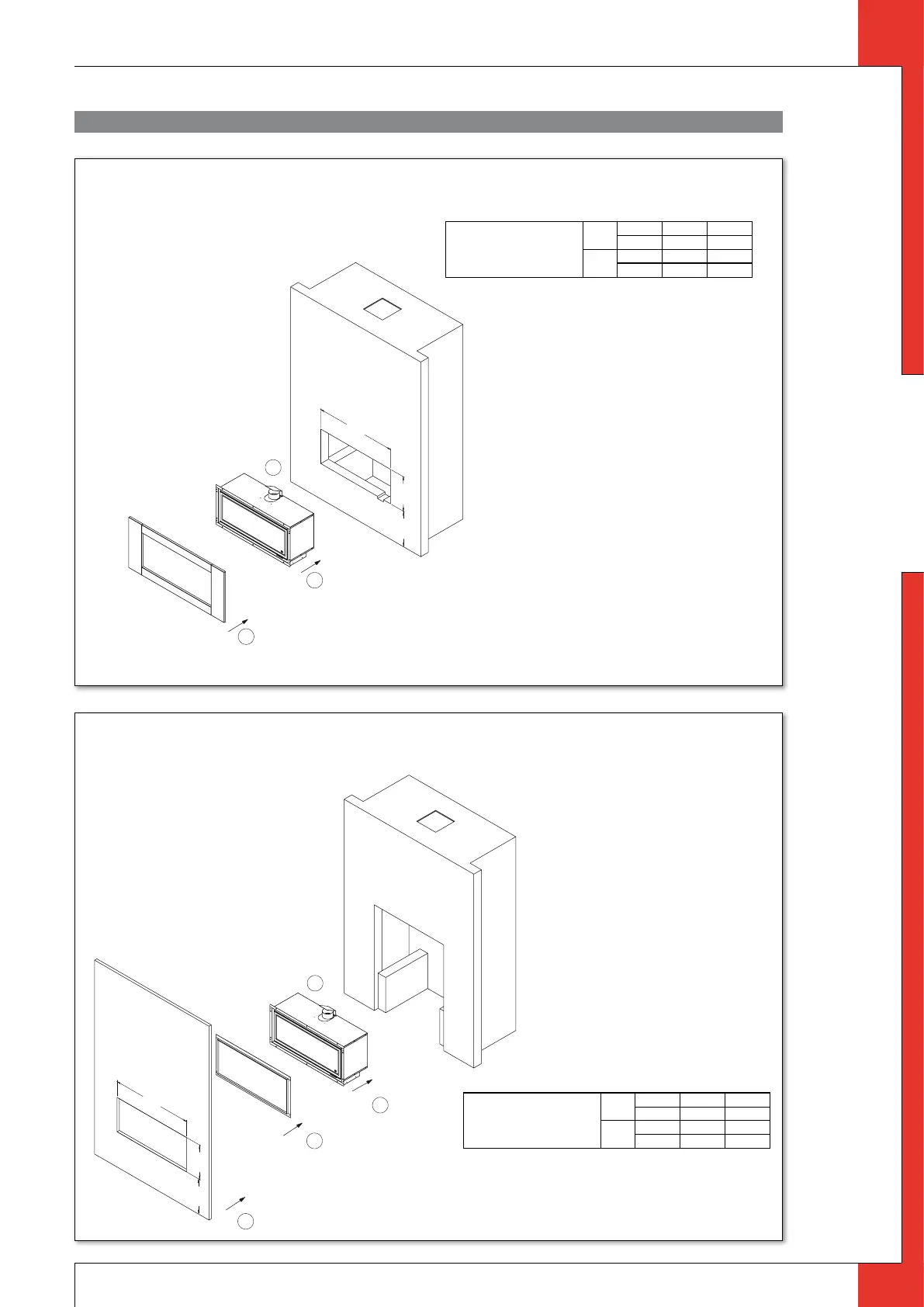

I Class 1 chimney, linerless with frame
1 Position convection box and fix to the wall
2 Mount debris shield
3 Gastechnical installation, then mount frame
Min.
180
2
1
4
3
A
B
II Class 1 chimney, linerless and frameless
1 Mount built-in plaster frame on the convection box
2 Position convection box and fix to the wall
3 Mount debris shield
4 Gastechnical installation then place cover panel
Min.
180
Dimentions gap (mm)
(see for opening battybox
installation instructions)
G90 G70
A Min 922 734
Max 932 744
B Min 401 662
Max 411 672
Dimentions gap (mm)
G90 G70
A Min 915 726
Max 920 731
B Min 395 656
Max 400 661
