Dru Global 90 CF - Page 6

6
English
c o n c i s e i n s ta l l at i o n
3
1
2
B
A

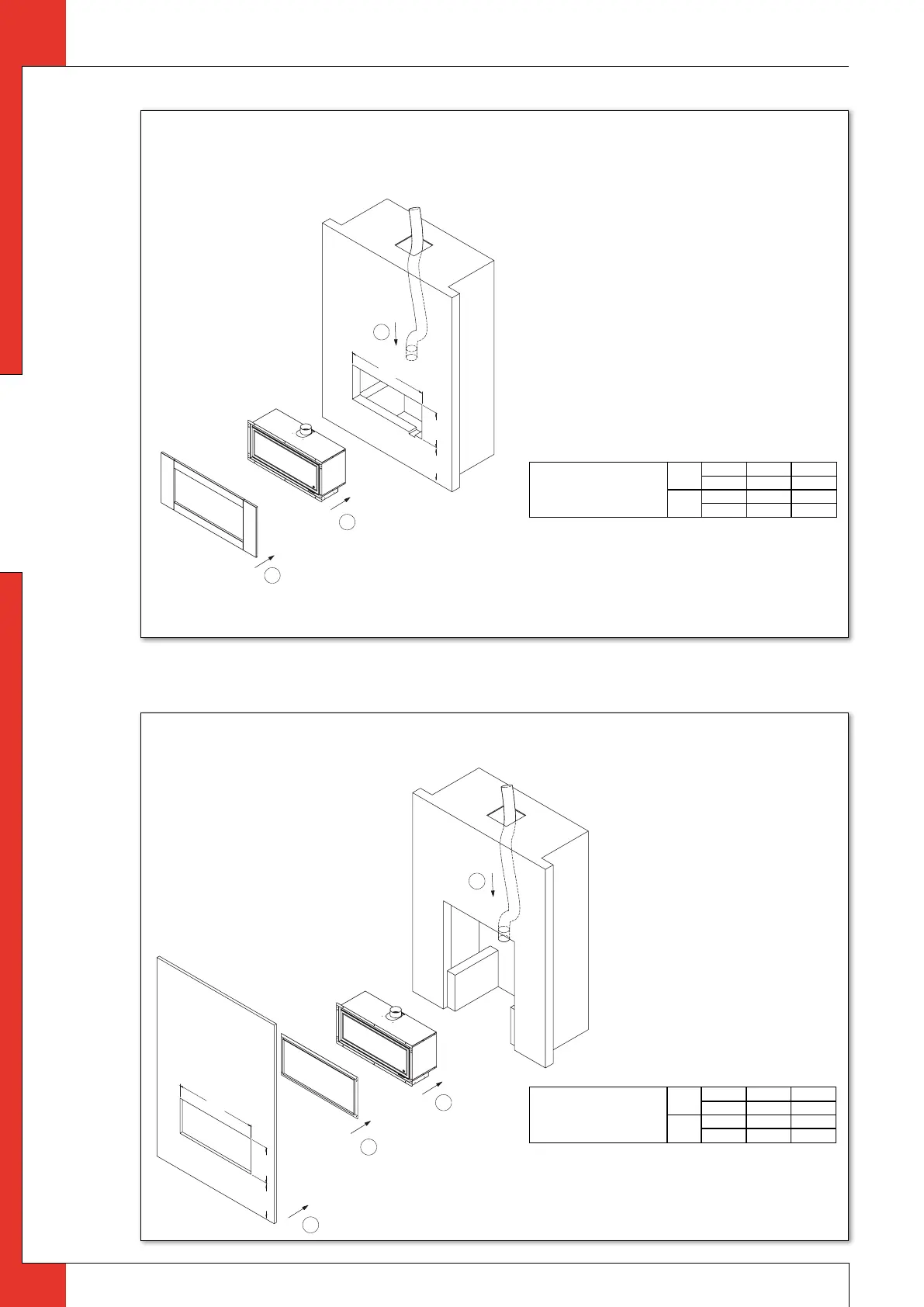

III Class 1 chimney, with flex flue liner and frame
1 Position convection box and fix to the wall
2 Mount flex flue liner
3 Gastechnical installation, then mount frame
Min.
180
2
3
1
4
1 Mount built-in plaster frame on the convection box
2 Position convection box and fix to the wall
3 Mount flex flue liner
4 Gastechnical installation then place cover panel
A
B
IV Class 1 chimney, with flex flue liner and frameless.
Min.
180
Dimentions gap (mm)
(see for opening battybox
installation instructions)
G90 G70
A Min 922 734
Max 932 744
B Min 401 662
Max 411 672
Dimentions gap (mm)
G90 G70
A Min 915 726
Max 920 731
B Min 395 656
Max 400 661
UK
