7
English

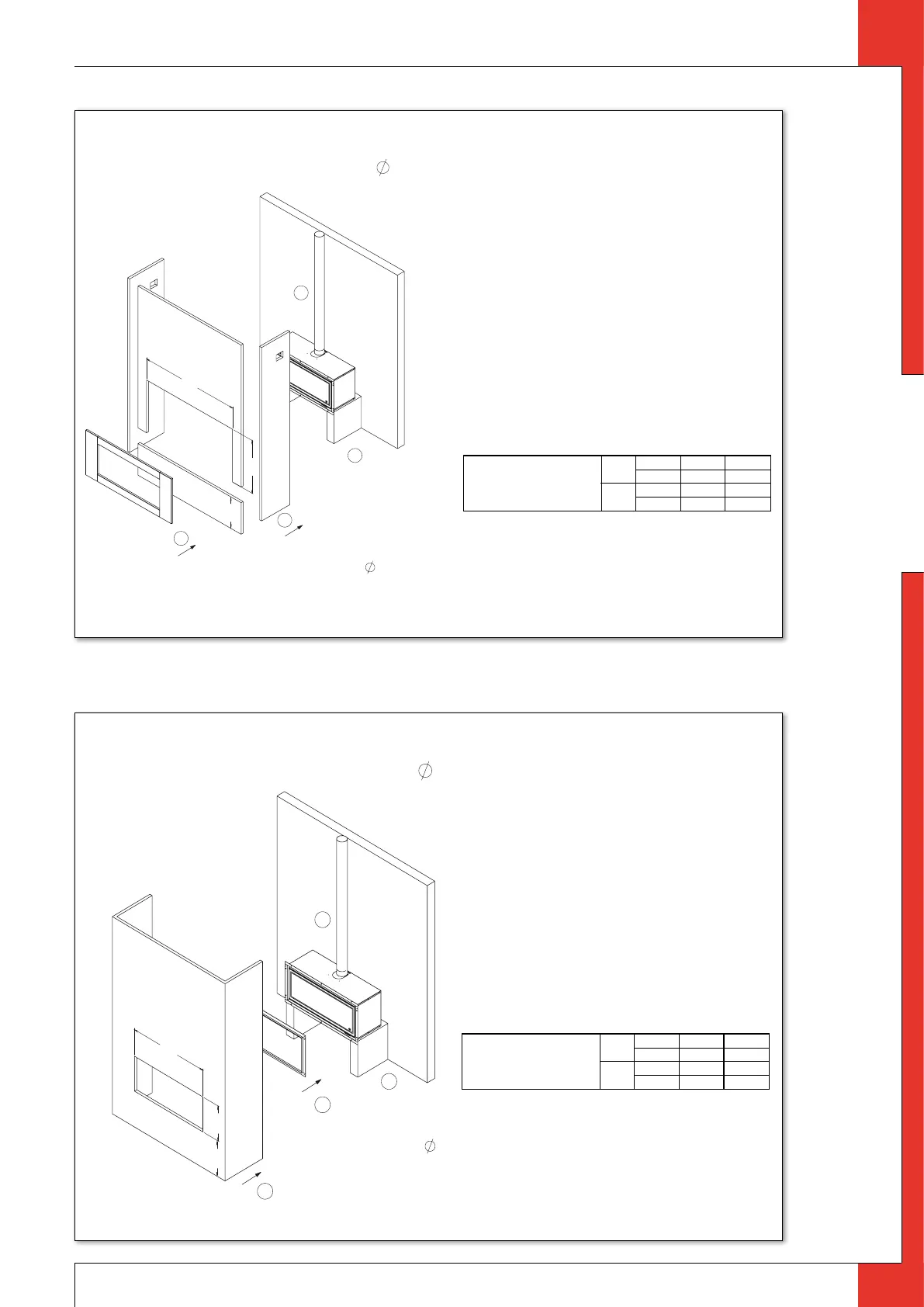

c o n c i s e i n s ta l l at i o n
1 Position convection box and fix to the wall
2 Mount flue pipe
100
3 Gastechnical installation, then make false chimney breast
4 Mount frame
1
2
3
4
A
B
V False chimney breast, flue pipe
100 and frame.
Min.
180
1
2
3
4
1 Position convection box and fix to the wall
2 Mount flue pipe
100
3 Mount built-in plaster frame on the convection box
4 Gastechnical installation, then make chimney breast
VI False chimney breast, flue pipe
100 and frameless.
A
B
Min.
180
Dimentions gap (mm)
G90 G70
A Min 915 726
Max 920 731
B Min 395 656
Max 400 661
Dimentions gap (mm)
(see for opening battybox
installation instructions)
G90 G70
A Min 922 734
Max 932 744
B Min 401 662
Max 411 672
UK
