DS18 RY-HARNESS.HD - Harness Component Details; Radio Connector Identification; Converter Module and Power Harness; RCA Audio Output and Speaker Wires

4
1
2
7
5
6
4
3

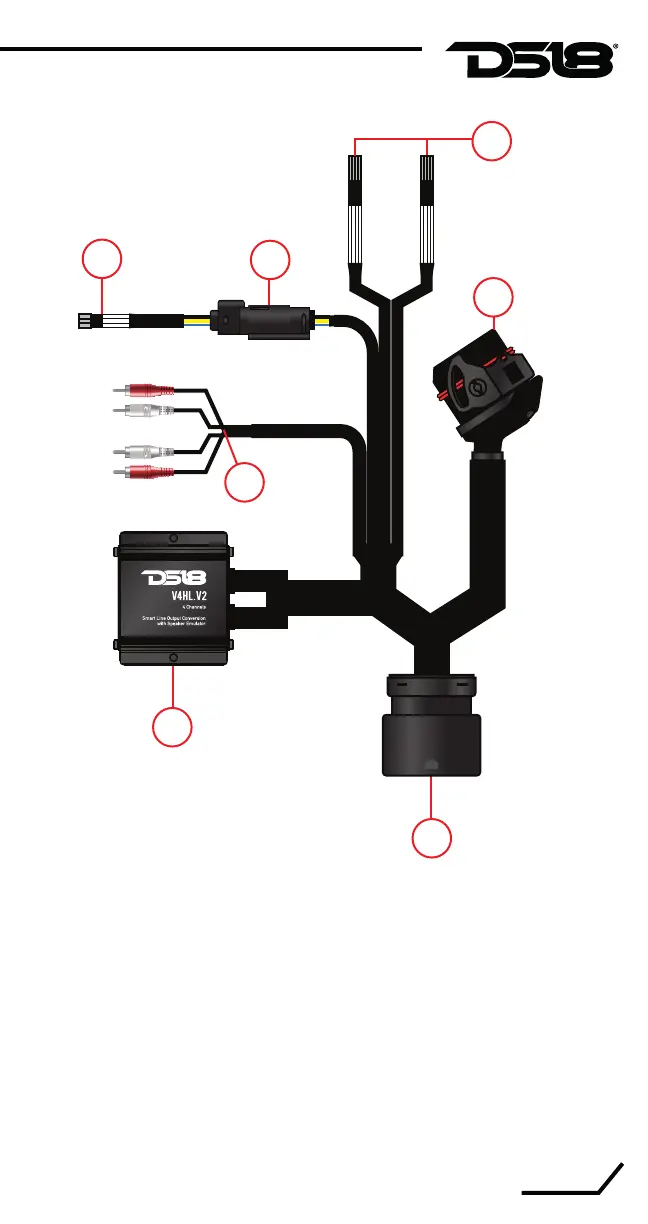

1. Radio Female Connector, connect this to the Factory radio
harness from the bike side.
2. Hi to low converter with speaker emulator module (V4HL.V2).
3. DSP power harness, connect this to power up a DSP optional, or us
the remote to turn on the aftermarket amplifier.
4. RCA Audio Output, connect this to the DSP/Amplifier low
level input.
5. Fast connector for the DSP power line.
6. Speaker Wires from the factory speaker location, connect this to
the aftermarket amplifier.
7. Radio Male Connector, connect this to the factory radio connector
from the unit side.
HARNESS DESCRIPTION:
