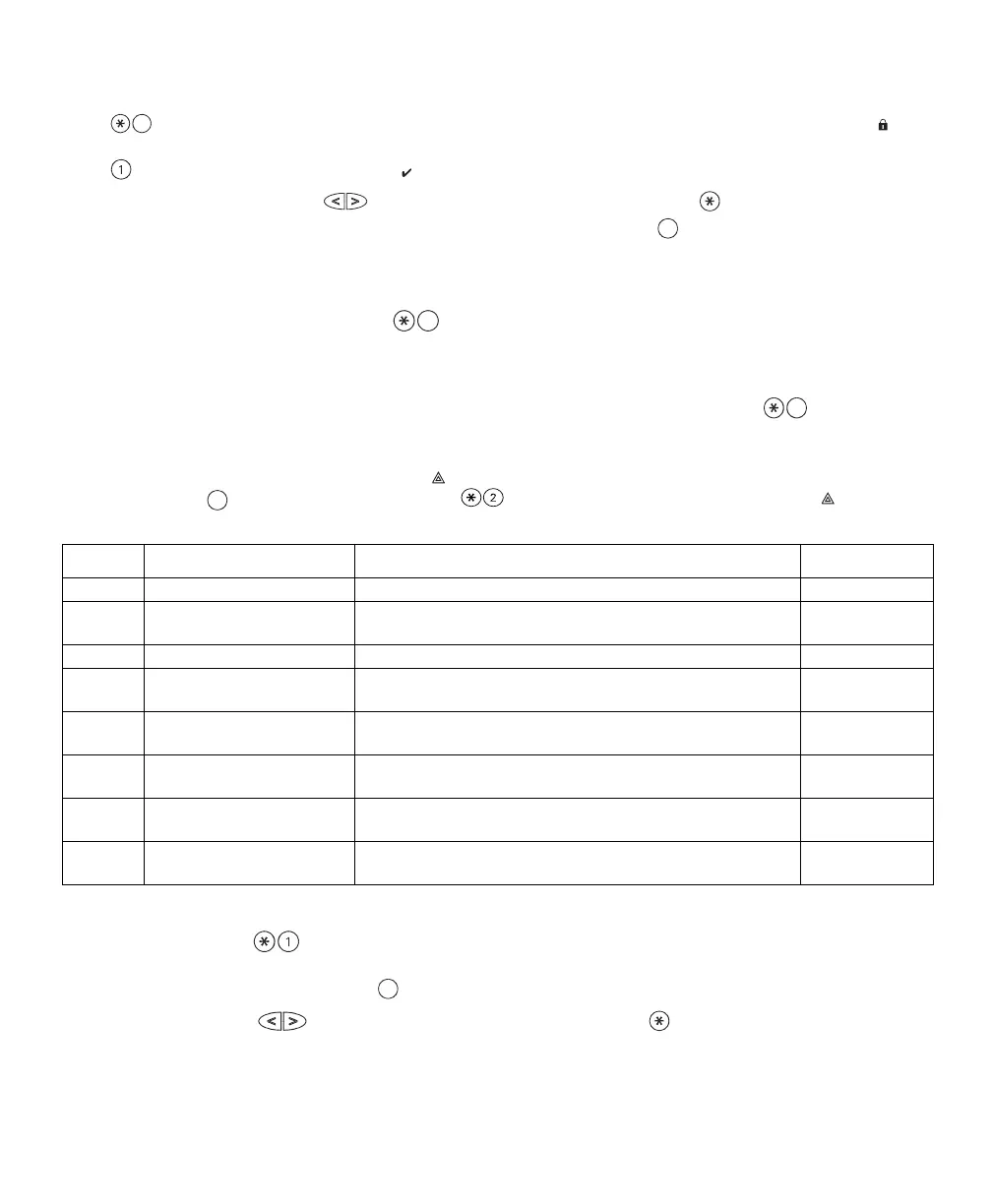

DSC LCD5501Z User Manual

10
Time & Date Programming
Press , plus your Master Access Code. The Program or System indicator will begin to flash, and the Armed ( ) indi-
cator will turn on.
Press to select Time and Date. The Ready ( ) indicator will turn on.
When using the LCD5500, use the scroll keys to find the menu option and press to select.
Enter the time in 24-hr format (HH:MM), followed by the date (MM:DD:YY). Press to exit programming.
Quick Exit
If the system is armed and you need to exit, use the Quick Exit function to avoid disarming and rearming the system. Press
and hold the
Exit key for 2 seconds or press . You now have 2 minutes to leave the premises through your exit
door. When the door is closed again, the remaining exit time is cancelled.
Door Chime (Entry/Exit Beeps)
To turn the door chime function on or off, press and hold the Chime key for 2 seconds or press .
Trouble Conditions
When a trouble condition is detected, the Trouble ( ) or System indicator will turn on, and the keypad will beep every 10
seconds. Press the key to silence the beeps. Press to view the trouble condition. The Trouble ( ) or System
indicator will flash. The corresponding trouble will be represented by numbers 1-8.
Bypassing
To bypass a sensor, press . The bypass or system indicator will flash.
Enter the 2-digit number for the sensor to be bypassed (i.e. 03 for sensor number 3). To bypass an additional sensor, enter
another 2-digit entry for that sensor.
Press to exit. The bypass or system indicator will stay on.
For the LCD5500, use the scroll keys to find the specific sensor and press to bypass.
LED/DIGIT
Trouble Condition Comments Action
1 Service Required Call for service
2
Loss of AC Power
If the building and/or neighborhood has lost electrical power, the
system will continue to operate on battery for several hours.
Call for service
3 Telephone Line Fault The system has detected that the telephone line is cut. Call for service
4
Failure to Communicate
The system attempted to communicate with the monitoring sta-
tion, but failed. This may be due to Trouble 3.
Call for service
5
Sensor (or Zone) Fault
The system is experiencing difficulties with one or more sensors
on the system.
Call for service
6
Sensor (or Zone) Tamper
The system has detected a tamper condition with one or more
sensors on the system.
Call for service
7
Sensor (or Zone) Low Battery
If the system has been equipped with wireless sensors, one or
more has reported a low battery condition.
Call for service
8
Loss of Time & Date
If complete power was lost (AC and Battery), the time and date
will need to be re-programmed.
Call for service
