4

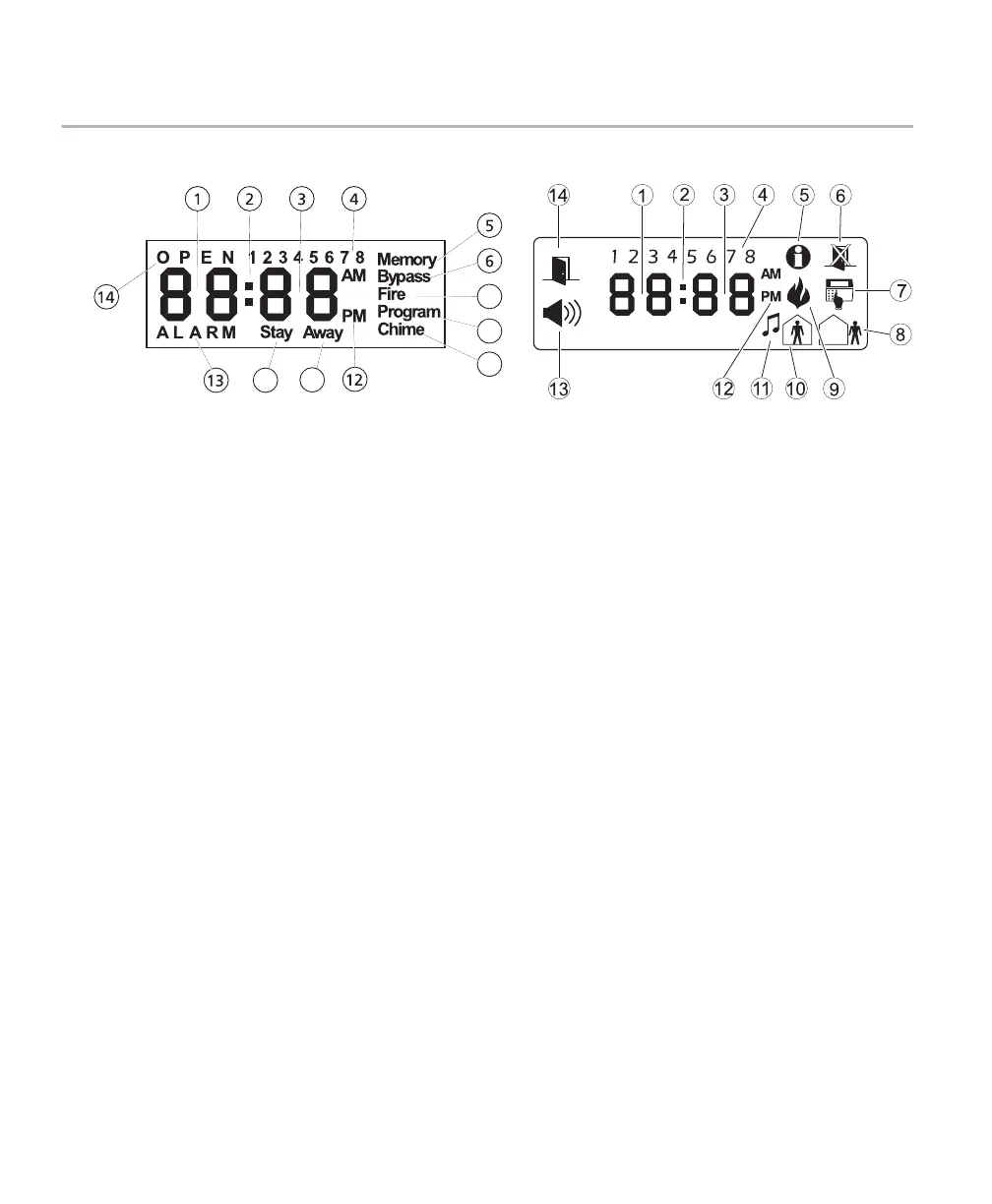

Liquid Crystal Display (LCD)
1 Clock Digits 1, 2 – These two 7 segment clock digits indicate the hour digits when the local clock is active,
and identify the zone when the OPEN or ALARM icons are active. These two digits scroll one zone per second
from the lowest zone number to the highest when scrolling through zones.
2: (Colon) – This icon is the hours/minutes divider and will flash once a second when the local clock is active.
3 Clock Digits 3, 4 – These two 7 segment displays are the minute digits when the local clock is active.
4 1 to 8 – These numbers identify troubles when [*][2] is pressed.
5 Memory – Indicates that there are alarms in memory.
6Bypass – Indicates that there are zones automatically or manually bypassed.
7 Program – indicates that the system is in Installer’s Programming, or the keypad is busy.
8Away – Indicates that the panel is armed in the Away Mode. It will turn on at the beginning of the Exit Delay.
9 Fire – Indicates that there are fire alarms in memory.
10 Stay – Indicates that the panel is armed in the Stay Mode. It will turn on at the beginning of the Exit Delay.
11 Chime – This icon turns on when the chime function key (F3) is pressed to enable Door Chime on the system.
It will turn off when the chime function key (F3) is pressed again to disable Door Chime.
12 AM, PM – This icon indicates that the local clock is displaying 12 Hr. time. These icons will not be on if the
system is programmed for 24 Hr. time.
13 ALARM – This icon is used with clock digits 1 and 2 to indicate zones in alarm on the system. When a zone is
in alarm, the ALARM icon will turn on, and 7 segment displays 1 and 2 will scroll through the zones in alarm.
14 OPEN – This icon is used with clock digits 1 and 2 to indicate violated zones (not alarm) on the system. When
zones are opened, the OPEN icon will turn on, and 7 segment displays 1 and 2 will scroll through the violated
zones.
9
810
7
11
Fixed Message
Icon
