DSC PowerSeries Neo 3G2080E User Manual

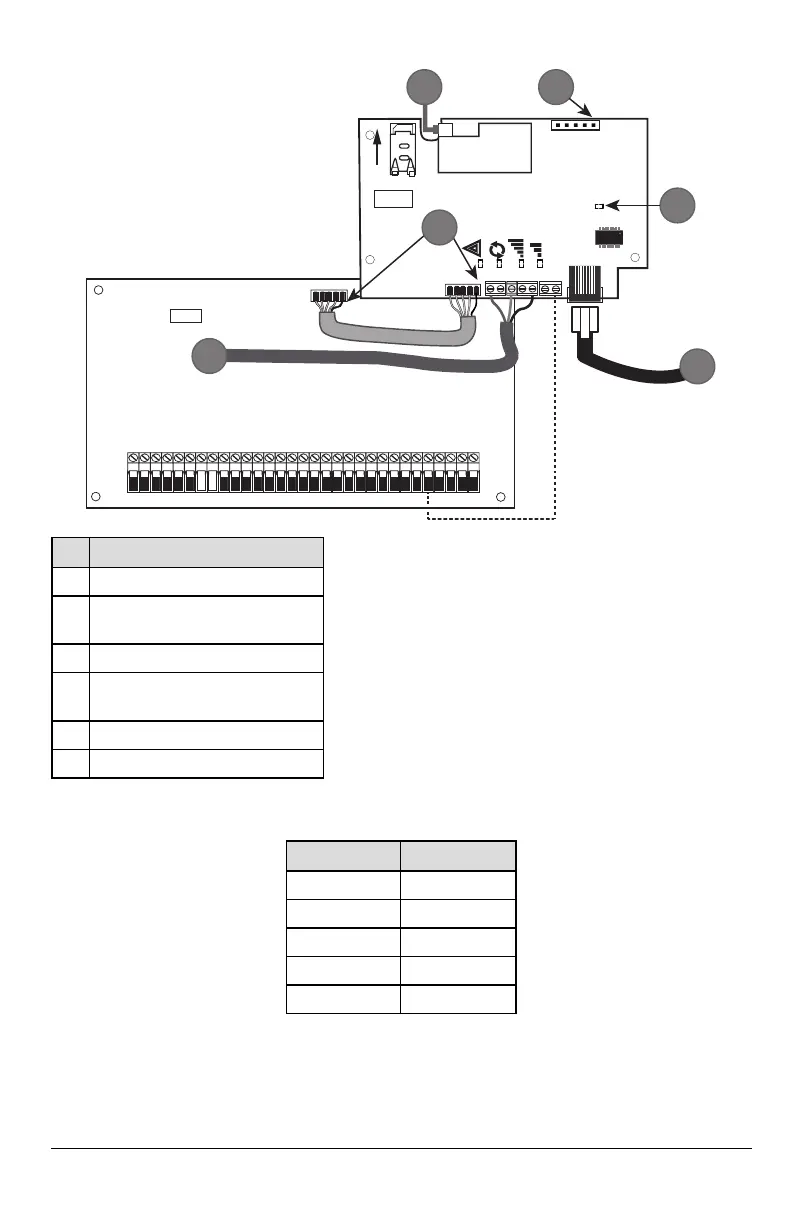

Figure 3: Communicator Wiring Diagram
AUDIO/DEFAULT
DSC
UA685
PC-LINK
PCLINK_2
COM
TL2803G(R)E
3G2080(R)E
TL280(R)E
TL280LE(R)
LE2080(R)
AC AC
Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8
AUX+
BELL +
PGM1 PGM3
RING T-1
HS2016/2032/2064/2128
3G/LTE Radio
UA621
L
o
c
k
1
RJ-45
GRN YEL
TIP R-1
BLK
RED AUX -
BELL - EGND
TX+
GND
TX-
RX+ RX-
SHLD
SIM
PGM2 PGM4
4
1 2
3
5
6
Item Description
1 To External Antenna
2
AUDIO / DEFAULT
Jumper pins 4 and 5 to reset
3 Network Link - Yellow
4
From NID use only CAT5 supervised
maximum cable length 100m (328 feet)
5 RS-232 to third party device
6 RED Wire
Input Ratings:
l +10.8V ~ +12.5VDC
l 90mA 3G2080(R)E/120mA TL2803G(R)E standby
l
90mA 3G2080(R)E/ LE2080(R)
l
120mA TL2803G(R)E/TL280LE(R)
l 100mA TL280(R)E
l 400mA alarm
DSC Panel minimum power requirements:
l 16.5 VAC 40 VA transformer
l 12 VDC 7Ah battery
Table 3: RS-232 Connections
3rd Party Device Communicator
TX (RED)* RX+
Unused RX-
RX (GRN)* TX+
Unused TX-
GND (BLK)* GND
* Wire colors based on the cable provided in the productbox.
6.
Perform the following steps for initial power on of the panel with communicator installed:
a.
Reconnect the AC power, telephone line, and battery + connector to the panel.
(The communicator and panel will power up together).
13
