DSC PowerSeries PK5500 User Manual

[120]-[151] Command Output Labels
Default: “Command_O/P_1” - “Command_O/P_4”
[201]-[264] Door Chime Sound Programming
You can program the keypad to make up to four different door chime sounds for individual zones.
ex. For Zone 1 enter section [201], for Zone 2 enter section [202] etc.
[994][,] Initiate Global Keypad Chime Broadcast
[995][,] Reset Keypad Options to Factory Default
[996][,] Label Default
[997] View Software Version
[998][,] Initiate Global Label Broadcast
[999][,] Reset Keypad EEPROM to Factory Defaults

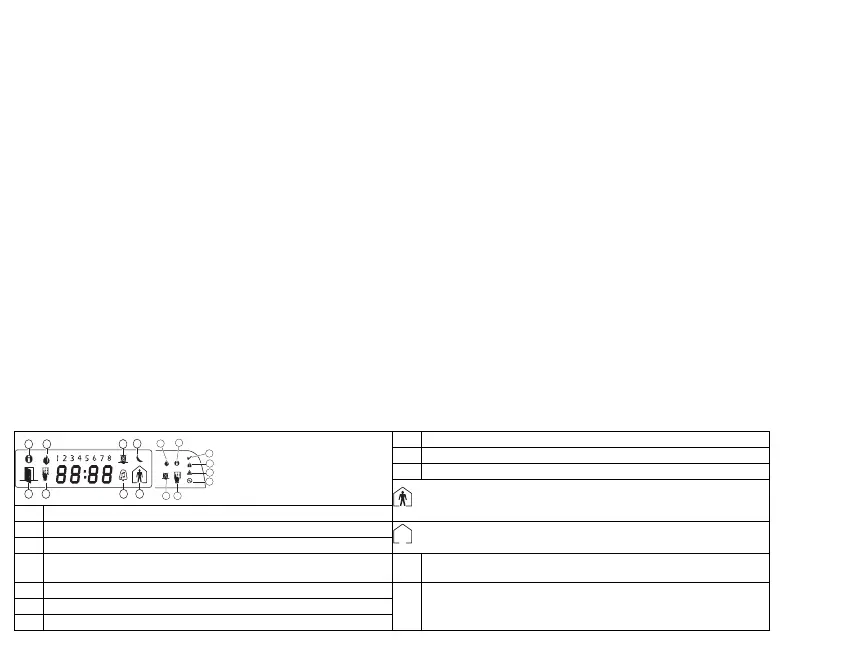

Keypad Display Symbols
For Partition 1 Command O/P 1 to 4 enter [120] to [123] For Partition 5 Command O/P 1 to 4 enter [136] to [139]
For Partition 2 Command O/P 1 to 4 enter [124] to [127] For Partition 6 Command O/P 1 to 4 enter [140] to [143]
For Partition 3 Command O/P 1 to 4 enter [128] to [131] For Partition 7 Command O/P 1 to 4 enter [144] to [147]
For Partition 4 Command O/P 1 to 4 enter [132] to [135] For Partition 8 Command O/P 1 to 4 enter [148] to [151]
Section Part
Cmd.
Output
Label
[120]-[151] 1to8 1to4
I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
Default Option ON OFF
ON I____I 1 6 Beeps Disabled
OFF I____I 2 “Bing-Bing” Sound Disabled
OFF I____I 3 “Ding-Dong” Sound Disabled
OFF I____I 4Alarm Tone Disabled
OFF I____I 5-8 For Future Use
8 Bypass – Indicates that there are zones automatically or manually bypassed.
9 For Future Use
10 Arm Mode – Indicates the mode the panel is armed in.
Stay – Indicates that the panel is armed in the Stay Mode. It will turn on at the beginning of the Exit
Delay
1 Fire – Indicates that there are fire alarms in memory.
2 Memory – Indicates that there are alarms in memory.
Away – Indicates that the panel is armed in the Away Mode. It will turn on at the beginning of the
Exit Delay
3 Ready Light (green) – If the Ready light is on, the system is ready for arming.
4 Armed Light (red) – If the Armed light is on, the system has been armed successfully. 11
Chime – This icon turns on when Door Chime is enabled on the system and will turn off when Door
Chime is disabled.
5 System Trouble – Indicates that a system trouble is active.
12 Open – When zones are opened, the open zones will be displayed.6 AC – Indicates that AC is present at the main panel.
7 Program – Indicates that the system is in Installer’s Programming, or the keypad is busy.
1
2
3
4
5
6
7
8
12
9
10
11
12
7
8

DSC PowerSeries PK5500 Specifications

General

Compatibility	PowerSeries control panels
Fire, Auxiliary, Panic Keys	Yes
Buzzer	Yes
Tamper	Yes
Communication	Wired
Display	LCD
Backlight	Yes
