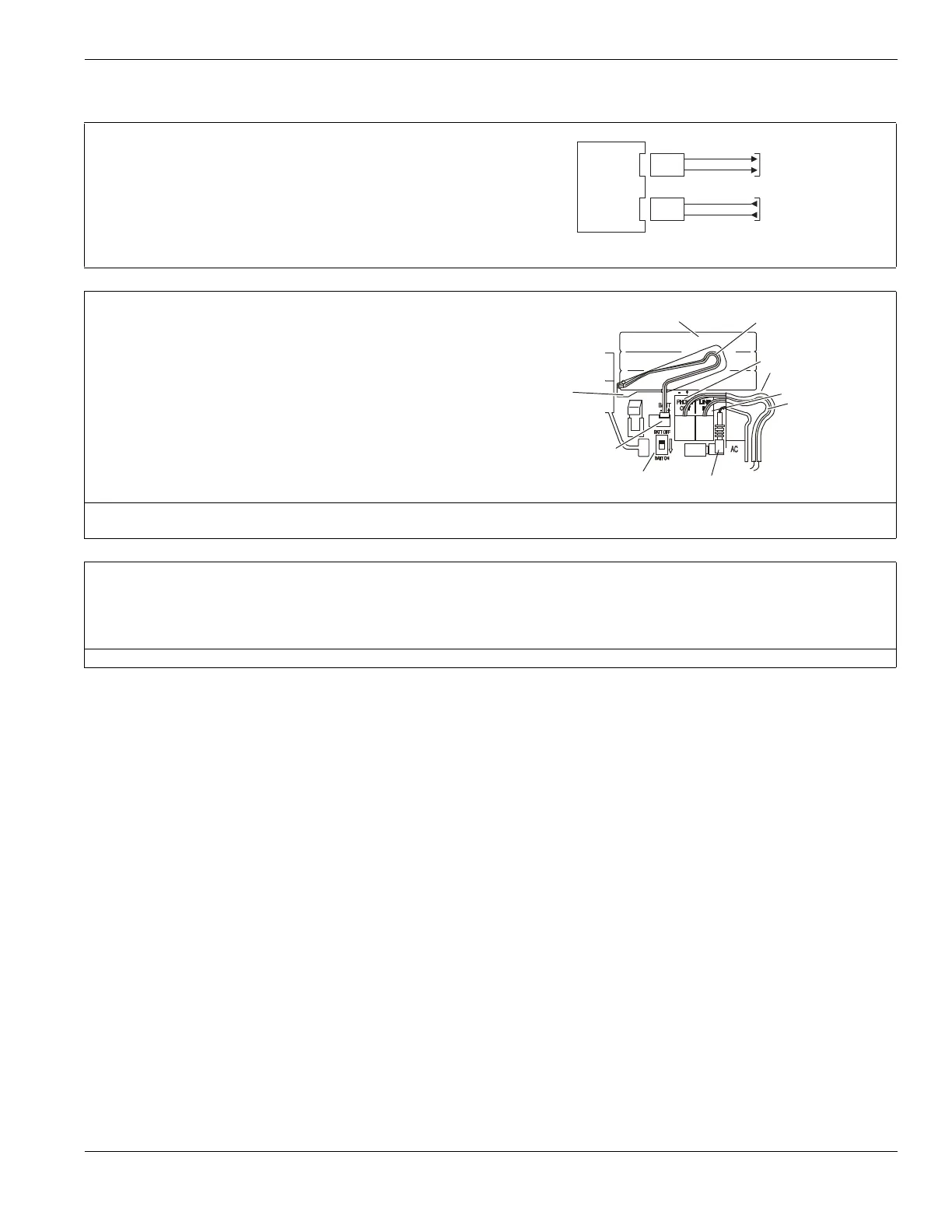

1.2 Wiring
3
1.2 Wiring
1. Telephone Line Wiring
Connect Line IN and Line Out to RJ-11 Connectors as indicated.
Line In: For the Alarm System to seize the line in an emergency situation, Line
In must be connected directly to the incoming telephone line before connection
to additional devices.
Line Out: Connect Line out to the first telephone or device, wire additional
extensions in series.
Communication format is programmed in section [350].
Telephone Call Directions are programmed in section [351]-[376].
2. Battery Pack
A 1500 mA Hr Ni-Mh battery pack is included to provide 24 Hr standby power.
Battery Removal/Replacement
1. Set Battery Switch to OFF.
2. Gently disconnect battery connector from unit.
3. Insert a small flathead screwdriver in the slot on bottom left of battery.
4. Gently pry battery free of unit.
Dispose of battery in accordance with local regulations
5. Plug-in replacement battery connector. Observe correct polarity.
6. Route connector wiring through the battery clip and channel guide.
7. Position battery in the space provided with battery leads located at bottom
left hand corner of the enclosure.
8. Set Battery Switch to ON.
NOTE: Battery life is 4-5 years under typical operating conditions. Replace Battery every 4-5 years. Battery capacity deteriorates with age and
number of charge/discharge cycles.
3. AC Wiring
AC Transformer Requirements:
Primary: 240V
AC, 50Hz., 0.06 A
Secondary: 16.5VAC/0.95 A 15.02VA
DSC recommends that the following transformer shall be used:
A41609AC (50Hz.) Right Angle Barrel Connector (supplied)
NOTE: Do not connect transformer to a receptacle controlled by a switch.
RJ11
ALARM
SYSTEM
RJ11
In from
Telephone Company
Out to
Premise Telephone
Line Out
Line In
Phone Line Out
Wiring channel guide
Phone Line In
Wiring channel guide
AC right angle barrel plug
Battery
Connector
Battery (Ni MH)
7.2VDC, 1500 maHr
Battery Cable
Channel Guide & Clip
Insert
Screwdriver
Here
To Next Page
