DSE 503 PLATINUM - Wiring Diagram and Connections; 15-Pin Connector Pinout; 8-Pin Connector Pinout

1 2
3
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
15P CONNECTOR
1- BLACK...................Ground (-) input
2- GREEN/WHITE ..... To parking lights (+) or (-)
of the vehicle
3- WHITE ..................Polarity selection for
the parking light
Must connect to +12v
or (-) ground
4- WHITE/BLACK ......Lock (-) output
5- GREEN .................. Unlock (-) output
6- PINK ...................... Siren/Horn programmable
(-) 500 mA output
7- BLUE .....................Second Ignition (-) output
8- BROWN/WHITE ...Door (-) trigger input
(see jumpers)
9- RED/WHITE ..........Brake pedal (+) input
10- PURPLE ................. Passkey (-) output
(before, during, after ignition)
11- YELLOW/WHITE ..Factory alarm disarm
(-) output 1.5 sec,
0.5 sec or 3 sec (opt. 3.07)
12- YELLOW ...............Trunk release (-) output
13- BLACK/GREEN ....Hood switch (-) input
14- GREY ....................Pulse (-) to re-arm
15- BLACK/WHITE .....Tach input
8P CONNECTOR
2 RED.........................+12V fused input
BROWN .....................Heater/Air conditionner
(+) output
ORANGE....................Starter (+) output
BLUE..........................Ignition(+)output
GREEN.......................2
nd
AUX(+/-)Output
YELLOW....................2
nd
AUX(+/-) Input
or
YELLOW....................Starter kill ‘‘motor side’’
PURPLE......................Starter kill ‘‘key side’’
*IgnorethePURPLEiftheStarterKillisnotused.
87
2
nd
ignition+
+12V
30
85 86
WHITE
WHITE RED
BLACK
WHITE
TELEMATIC PORT
FOR SMART PHONE
BY PASS DATA PORT
LED
ON/OFF/ TOGGLE SWITCH
PROGRAMMING / VALET BUTTON
ANT. LED
ANT. CABLE
BLACK
UNCUT = MANUAL
CUT = AUTOMATIC
STARTER TRIGGER
INPUT OPT 2.11
WHITE/BLUE
(HAND BRAKE, AUTOMATIC = NO / MANUAL = YES)
GREEN/BLACK (AUX 2)
WHITE/RED (AUX 1)
BLUE
CUT = GM STARTER KICK
(-) DOOR TRIGGER
WITH = NORMAL TACH
WITHOUT = LOW TACH
WITH = AM
WITHOUT = FM
(+) DOOR TRIGGER
INSTALLATION GUIDE 503 PLATINUM

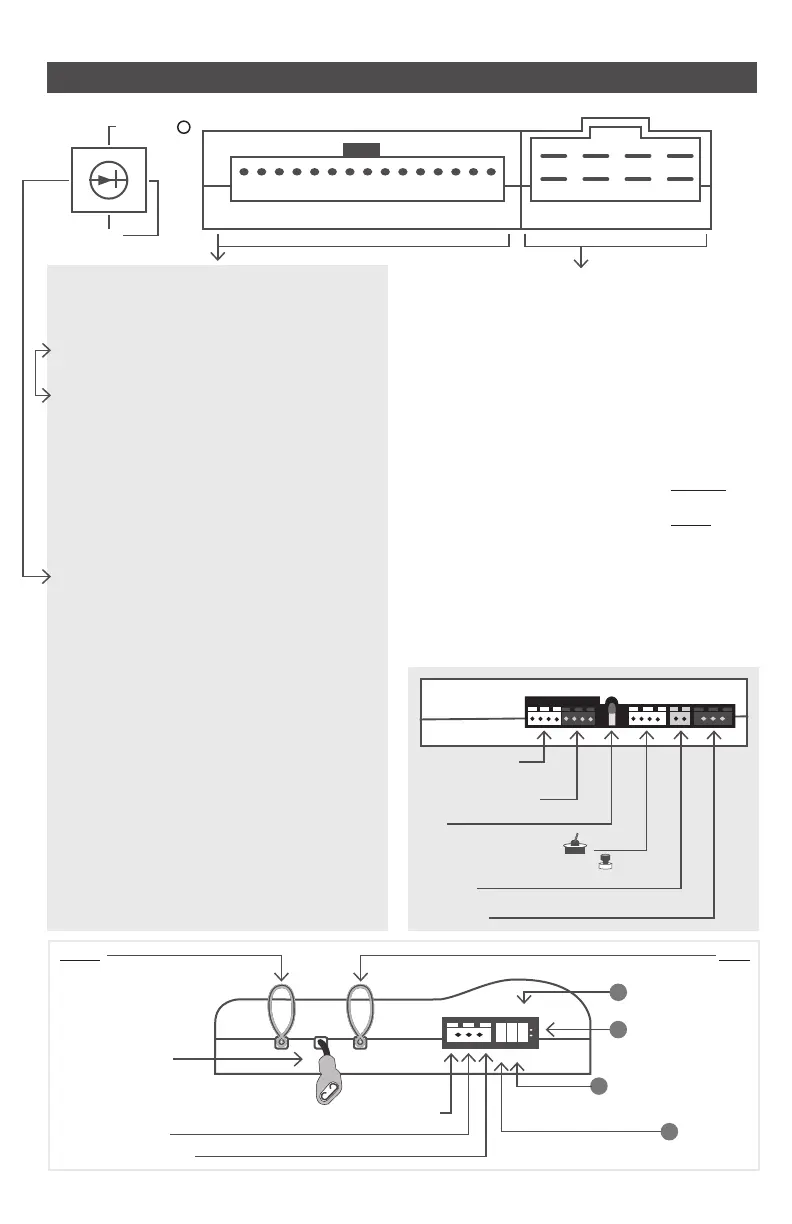

WIRING DIAGRAM
3
2
4
1
Version 5V-3
