DSE 503 PLATINUM - Remote Starter Functions; Instant Diagnostic Codes

503 PLATINUM FM & AM | Automatic & manual with alarm
Remote Starters and Alarm Systems

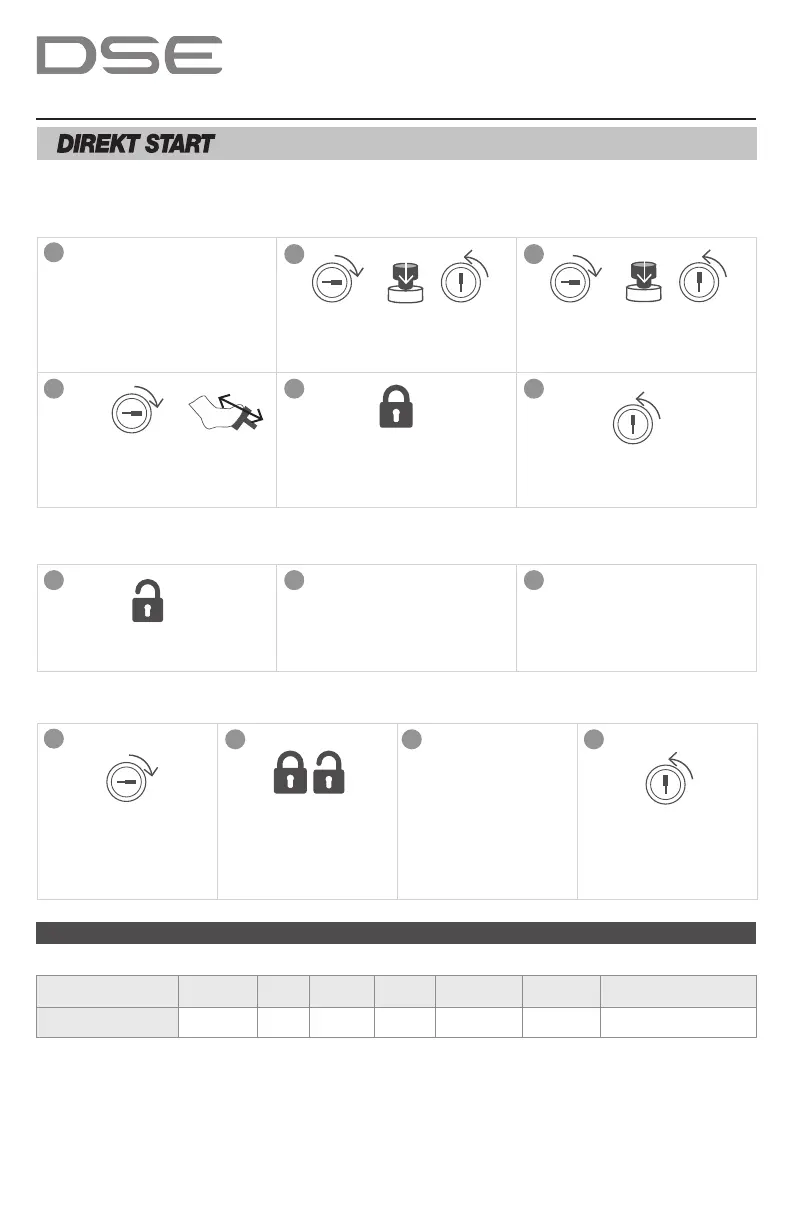

INSTALLATION GUIDE
STEP 1 - CODING AM / FM TRANSMITTERS
The system can store up to 3 different remote control codes in memory.
LED on the module and antenna are
ashing when the unit is power on.
Turn the Ignition On, press the
programming button once, you see
and hear 1 parking light and horn
conrmation, turn Ignition Off.
Turn Ignition back On, press the
programming button once, you see
and hear 2 parking light and horn
conrmations, turn Ignition Off.
Within one minute, turn Ignition On
and within 3 seconds tap the foot brake
3 times, the LED on the module and the
antenna will blink rapidly.
Press the Lock button of each transmitter
you want to code one after the other. When
the unit receives the transmitter conrmation
it will ash the parking lights and sound the
horn* each time.
Ignition Off.
STEP 2 - CODING ADDITIONAL TRANSMITTERS (with existing transmitter)
Press Unlock button of the existing
transmitters.
Repeat step 4, 5 & 6 of the above
section.
NOTE :
Everytime you re-code a new transmitter
you must code all existing transmitters in
the same time or the older transmitters will be
bumped off for security reason
TACH LEARNING ** MANDATORY **
Key Start / LED stays solid.
• Press and hold the Lock +
Unlock buttons on the remote
transmitter until the parking
lights start ashing.
• Then re-lease the buttons.
Parking lights will ash 6 times,
pause and 1 time if the tach signal is
read correctly. You will then hear
1 horn conrmation* (if horn wire is
connected). The tach is programmed
NOTE : in manual transmission
mode the process will be the
same, except of 1 horn conr-
mation, you will hear 6 horn
conrmation
Ignition Off
IGN IGN
IGN
OFF
OFF
OFF
OFF
1
1
1
2 3 4
4 5 6
2
2
3
3
x1
x1
1 min
x3
*Optional
*Optional
x1
INSTANT DIAGNOSTIC
REMOTE STARTER
PARKING LIGHT
Stay on 2 sec
then Off
2 Flash 4 Flash 5 Flash 6 Flash 7 Flash 8 Flash
Press START
Toggle switch
is Off
Valet Not ready* Hood Foot Brake Hand Brake RS-232 Code *
*AUTOMATIC  a)startwithkeytoconrmTachsignal
b) check if the loop is cut
c) do not connect hand brake
* MANUAL TRANSMISSION a)startwithkeytoconrmTachsignal
b) the black loop must be uncut
   c)nomanualsettingsequencesareperformed
d) hand brake wire must be connected
e) release ( down 2 sec ) and pull ( up 2 sec ) hand brake
*RS-232 CODE ERROR  RS-232issendingingearsignal
Version 5V-3
