Controls:
Switches:
- Bypass Switch: Toggles between the effect and the input signal. Note: Be
aware that DI levels are lower than instrument/preamp level. The level knob will
help you get the right DI signal level, but if you bypass the pedal, the level may
be much higher.
- Cab size Switch: Select 3 cabinet sizes:
- Stack: 4x12 cabinet low end response with a peak
resonance at 95Hz. All Rock and metal tones.
- Combo: 1x10 combo with rich low mids centered at
160Hz. Great for blues and vintage tones
- Fridge: 8x10 Bass monster with a peak resonance of
65Hz.

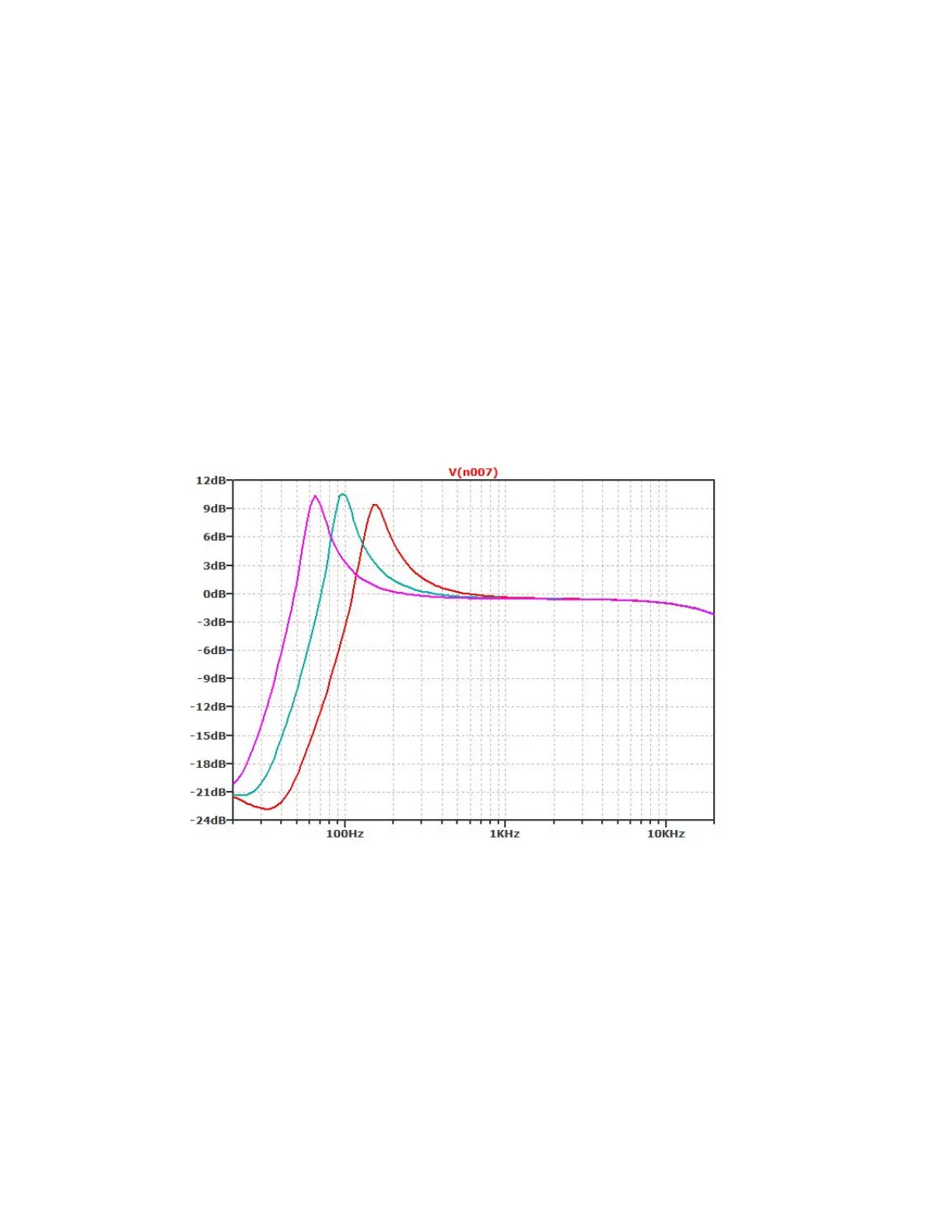

Cab Size Switch resonance peaks.
- ¼ output Switch: Select the TR (¼) output function between the Cabinet
simulation or the unaffected input signal. Great to send your unaffected signal to
your guitar or bass amp (or DAW, for later reamping).
- Ground Switch: Connects and disconnects (Lift) the ground signal from the XLR
cable shield. Use only if having ground loop issues.
