3.2 Schematic diagram of connection of interface on MAG6812 terminal
In addition to the self-contained MP3 player and network sound source, this machine is also equipped with
one channel of auxiliary input, one channel of auxiliary output used to connect the other sound sources and power
amplifiers. The personalized design of this machine can meet the needs of the terminal for large power and
multiple sound sources at the site. In the application without such personalized needs, it is allowed not to connect
the external sound source and other power amplifiers. The MP3 player and network audio stream in this machine
can meet the requirement for sound amplification in most of the public places.

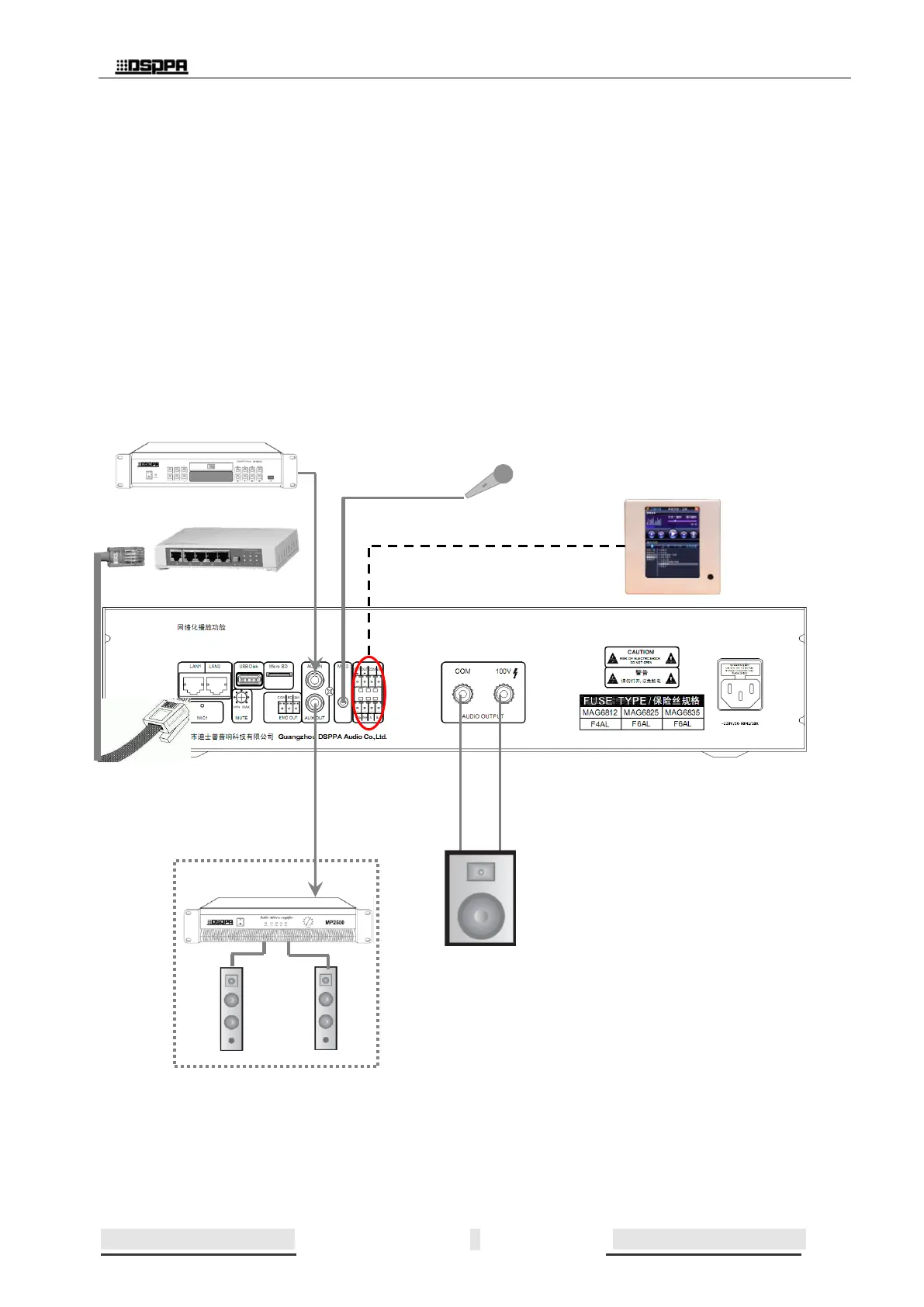

The schematic diagram of connection of the interface on this machine is shown as follows:
On-demand playing terminal
Sound box with line
transformer
