DSPPA MP200PIII - Product Features; Front Panel Description

1
1. Features
 Three microphone inputs, two auxiliary inputs, and one AUX output for link.
 Transformer for the speaker outputs at 100V, 70V and P1.
 Muting function.
 Individual volume control.
 Low and high tone control.
 A five-element LED level meter is provided for the quick and easy visual monitoring of
sound level.
 The protection and alarm in case of output short-circuit.
2.Description of Appearance

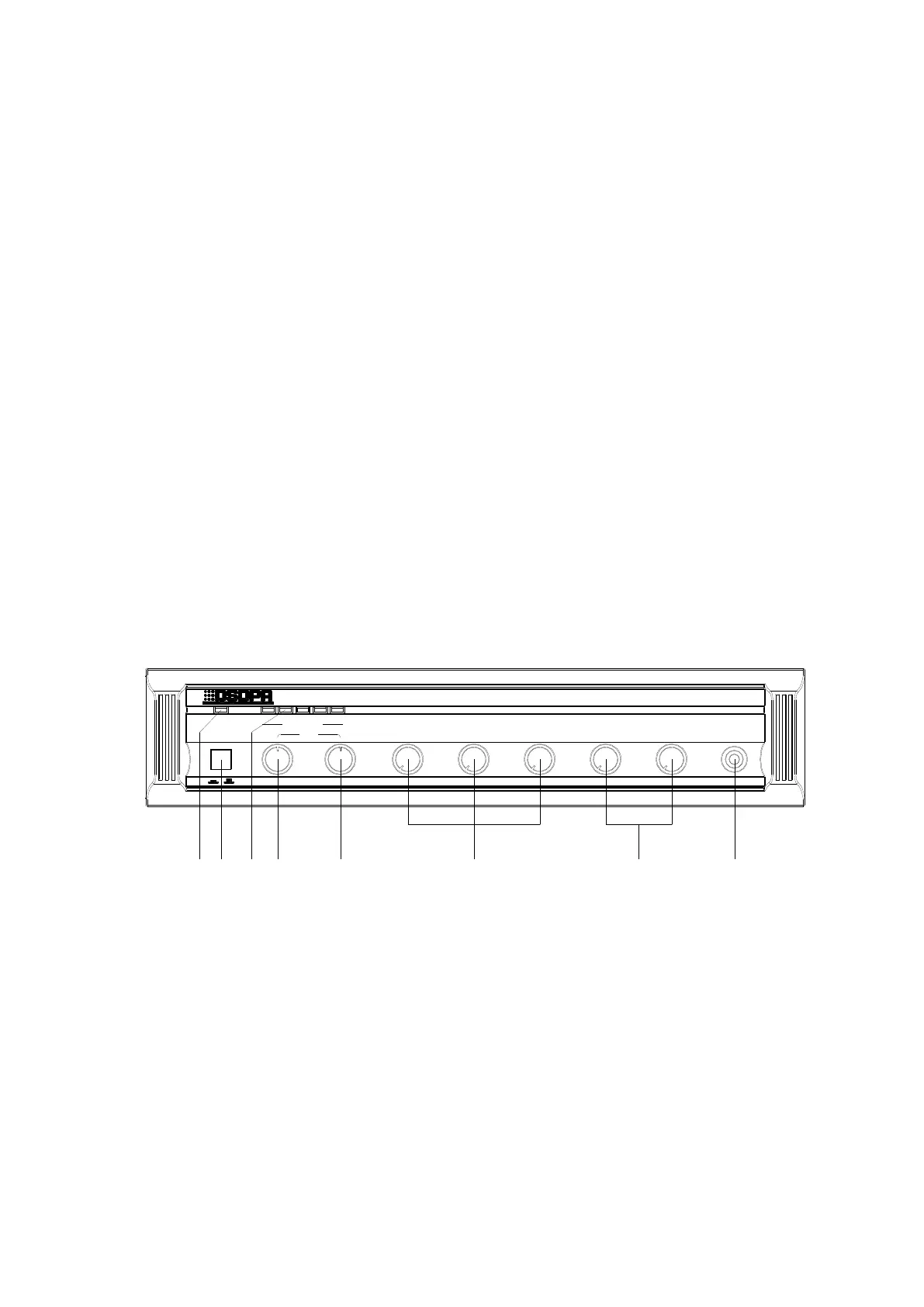

2.1 Description of front panel
1 2 3 4
5
6
7
8
MIC1 VOL MIC2 VOL MIC3 VOL AUX1 VOL AUX2 VOL
OFFON
ON
108
4
6
2
LEVELMETER
MIN MAX
MIC1
TREBLEBASS
TONE
MIX AMPLIFIER MP600PIII
MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX
1 LED power indicator 5 Treble control
For main power. Adjust treble response.
2 Power switch 6 MIC volume control
For main power. Adjust microphone volume.
3 LED level meter 7 AUX volume control
Indicate output level. Adjust AUX input volume.
4 Bass control 8 MIC1 input jack
Adjust bass response. Connect to microphone of unbalanced 30-600Ω with 1/4”phone
plug. The muting function is activated while the signal is sent to
MIC1.
Note:
When all the five elements of the LED level meter remain lit, it indicates that the sound is distorted. In such a case,
adjust each volume controlling button, until LED element 4 (+8dB) and LED element 5(+10dB) shall flash.
