DSPPA MP200PIII - Rear Panel Description

2

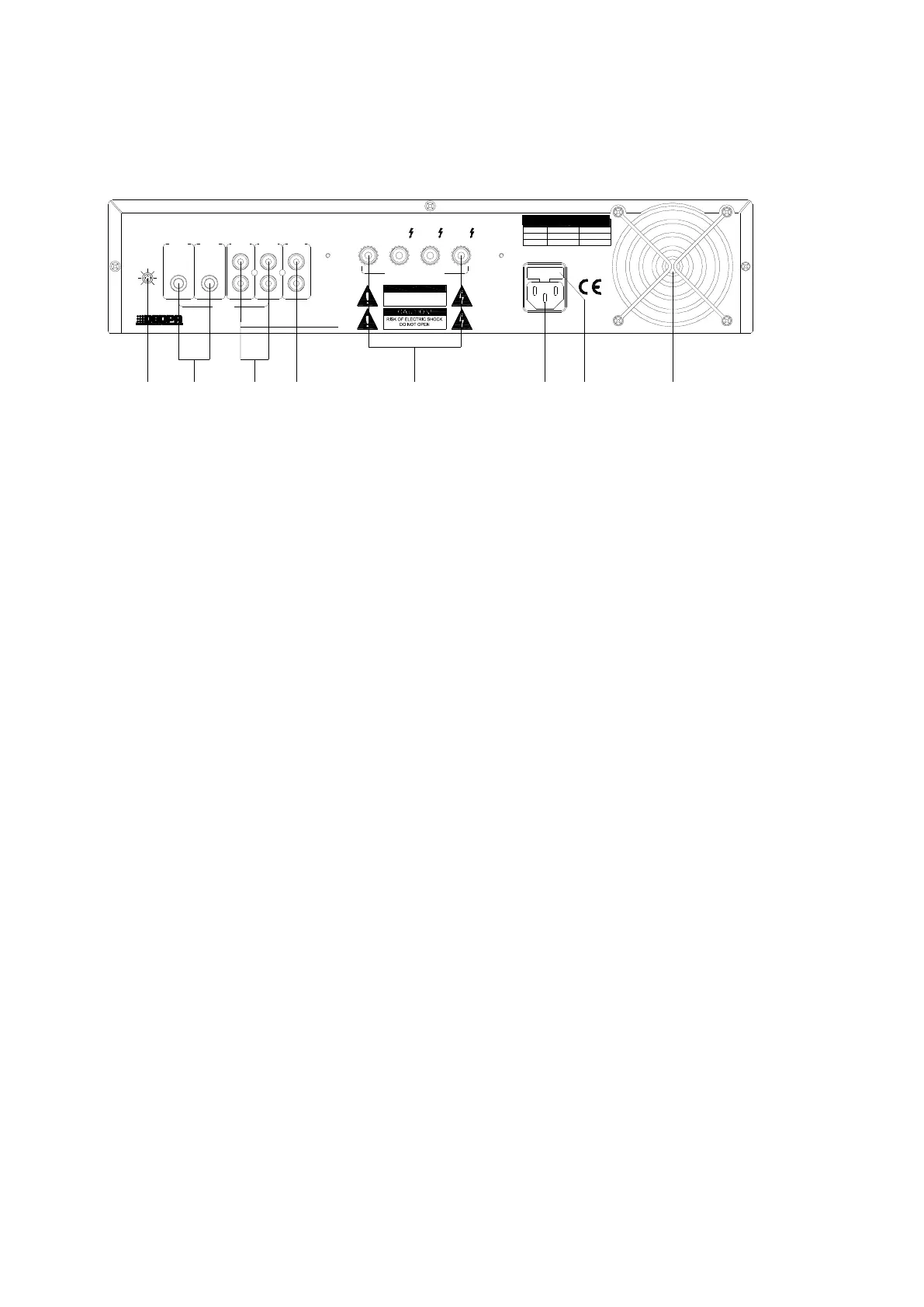

2.2 Description of rear panel
1 Mute control 4 AUX output
Adjust muting function. Connect to amplifier.
2 MIC2 input & MIC3 input 5 Output terminals
Connect to the microphones at unbalanced Connect to speakers.
30-600Ω with 1/4 phone plug. 6 AC power connector
The signals from MIC2 and MIC3 will Connect to AC power source.
be muted by the signal from MIC1. 7 AC fuse
3 AUX1 input & AUX2 input Prevent the excessive AC current flow.
Connect to auxiliary source equipment. 8 Fan intake window
Note:
When connecting to speakers, use one pair of speaker output terminals only.
MUTE
OUT
INPUT
MIC2 MIC3
AUX2AUX1
MAX MIN
MP200PIII.MP300PIII
SERIES MIXING AMPLIFIER
SER.
NO.
AUDIO OUTPUTS
COM P1
70V 100V
广州市迪士普音响科技有限公司
Guangzhou DSPPA Audio Co.,Ltd.
带前置广播功放
F4AL250VF2AL250V
MP200PIII
DSPPA
F A
MP300PIII
P1
16V
22V
~220-240V/50-60Hz/6A
Nur Sicherung 250V
Use Only With A 250V Fuse
Employer Unlquement Avec
Fusible De 250V
请勿打开，以免触电
1 2 3 4
5
6
7
8
FUSE TUPE 保险丝规格
