* * 6 Zones Mixer Amplifier with USB/Tuner

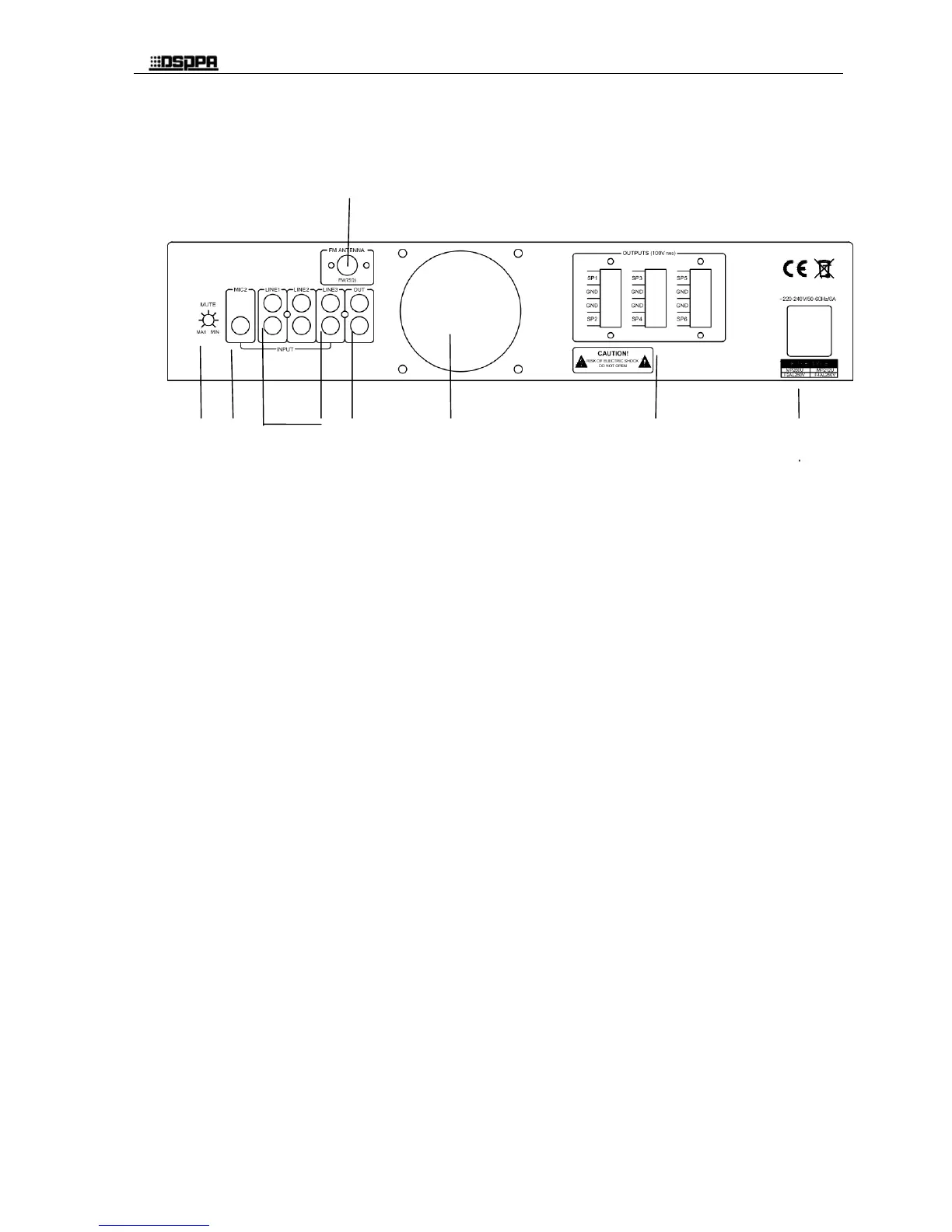

2.2 Description of rear panel
1. Mute control
Adjust muting function.
2. Mic2 input
Connect to the microphones at unbalanced 30-600
Ω with 1/4 ″phone plug. The signals from Mic2 be
muted by the signal from Mic1.
3. Line 1 input, Line 2 input & Line 3 input
Connect to linear source equipment.
4. Line output
Connect a recorder
5. Fan Exhaust Window
6. 6 Zone Output terminals
Connect to speakers.
7. AC power connector
Connect to AC power source.
8. FM Antenna
Note:When connecting to speakers, use one pair of speaker output terminals only.
