8
picture 5
a) Snip the water pipe at a distance of 10cm to 20cm from the water
entrance.
b) Turn on the power switch, get through to the power.

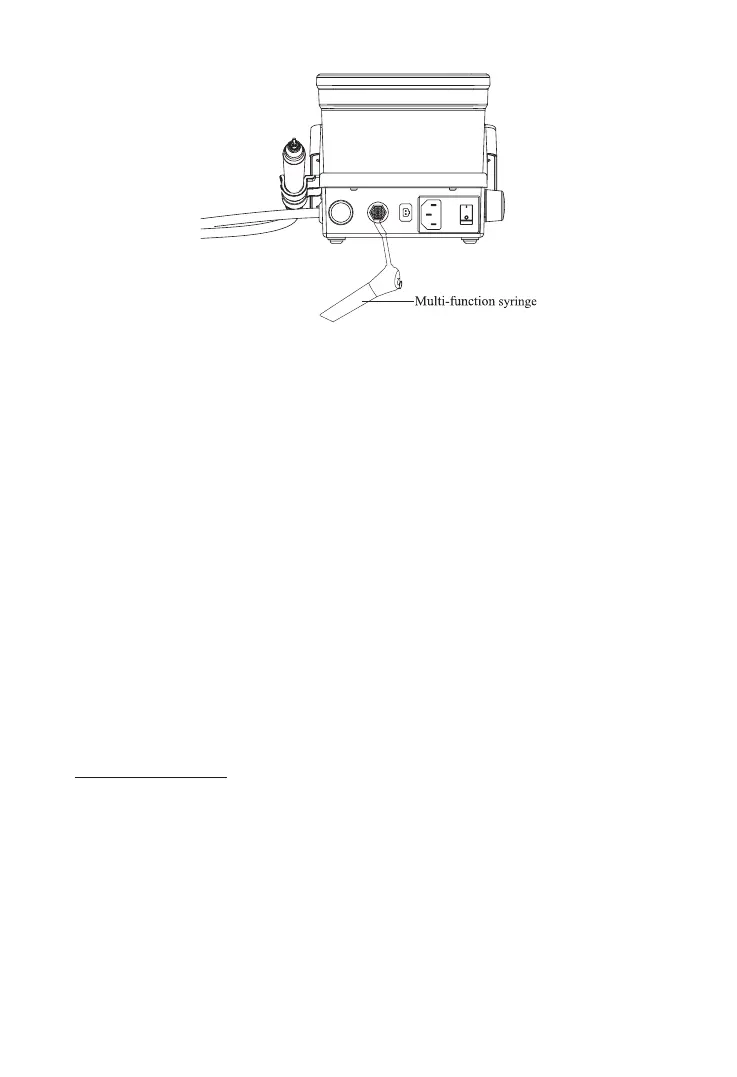

c) Connect the multi-function syringe of the dental unit to the water
pipe.
d) Screw o the scaling tip or pull out the handpiece.
e) Step on the foot switch.
f) Turn on the switch of the multi-function syringe, press the air or
water into the water pipe to clean and eliminate the impurity.
[Note 3 ] If the scaling tip has been screwed on tightly and there
is ne spray too, the following phenomena show that the scaling tip is
damaged:
a) The vibrating intensity and the pulverization degree become weak
obviously.
b) During operating, there is some buzz when the scaling tip is
working.
3.3 Cleaning mode
The liquid pipeline of the machine must be rinsed after each use of
the clinical liquid to reduce the crystal accumulation and the bacteria in
the liquid pipe.
Operation
1.Put distilled water or mineral substance into water tank.
2.Press the automatically water supply button and outside water
button at the same time (1s) to start the “Cleaning mode” after buzzer
beeps. The button of automatic water supply mode would flashes and
To Next Page
