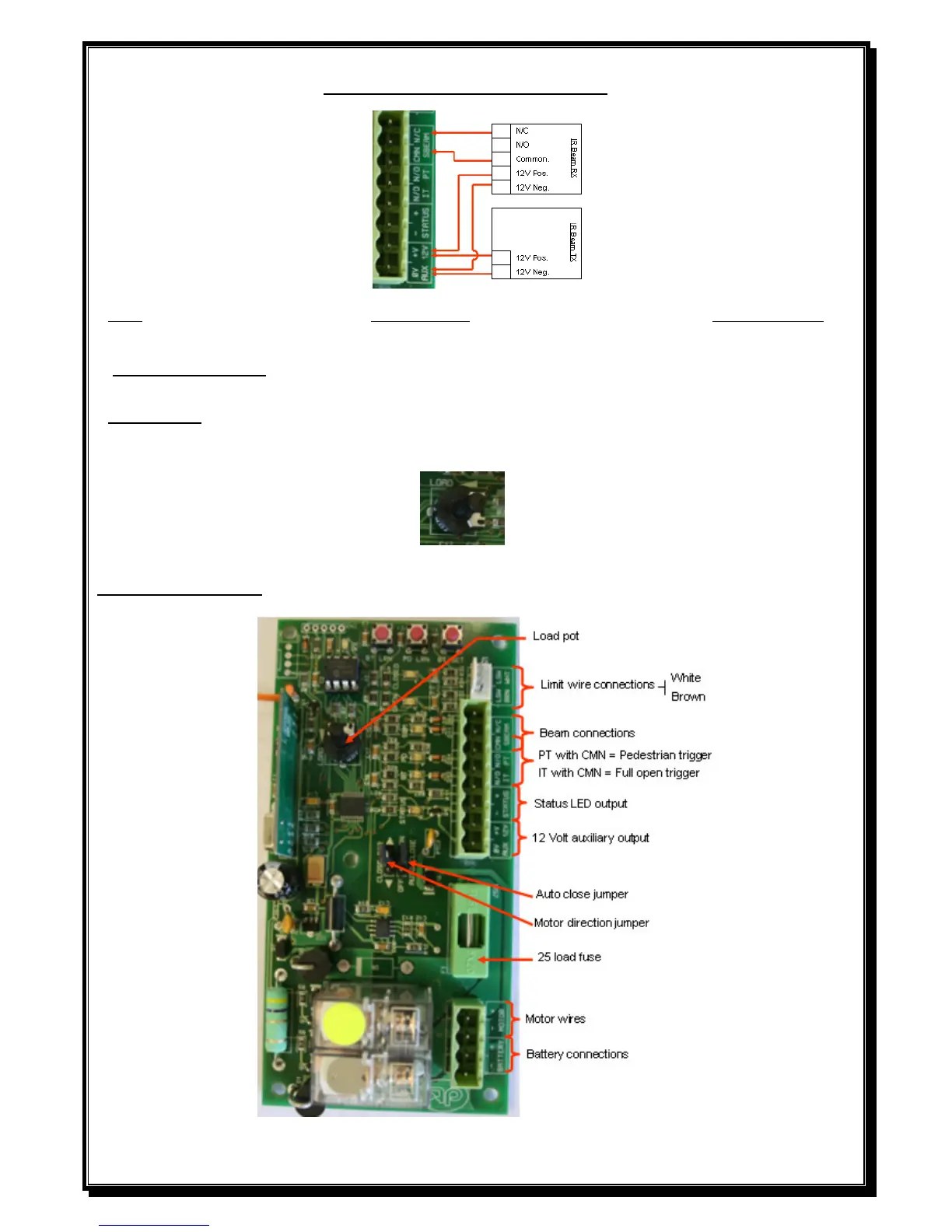

Diagram to connect IR Beams to PCB
Note: If sentry beams are fitted, then SBEAM, N/C on the PCB must be connected to N/O on the RX.
Pedestrian Opening (Default 1 meter / 8 seconds auto close)
Load setting
To adjust the load turn the load pot to determine the load setting (Minimum, anticlockwise & Maximum, clockwise).
PCB Control card.
(Please note, can only connect a low voltage power supply and therefore cannot be modified as a High excess motor)
