4.2.3. Target Interface
Item Specifications
Target connector Type M12
Male/female Female
Number of port 2

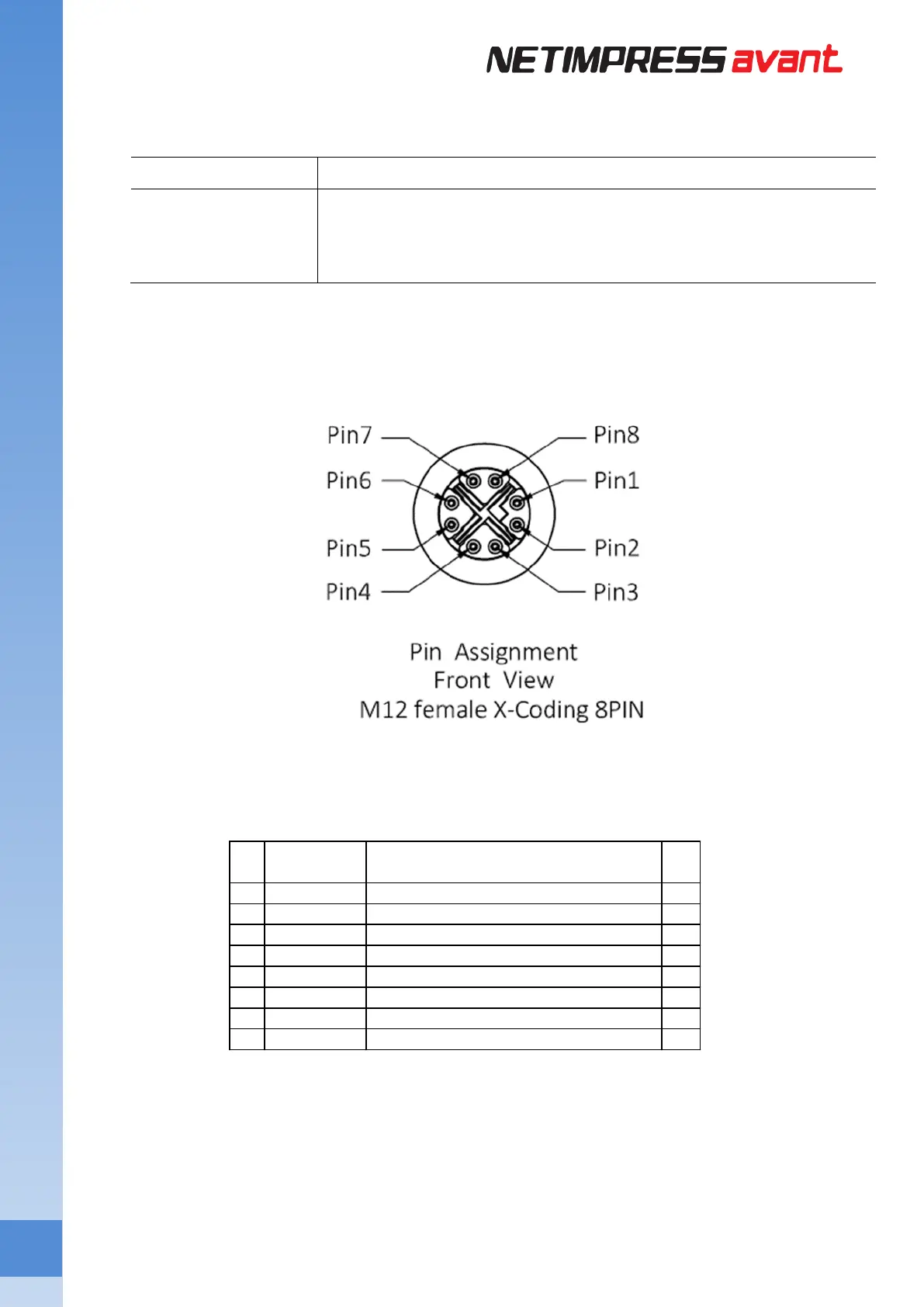

 Pin arrangement
Connector pin arrangement (mate side view) Signal Table
Table 1: AFX100 Probe Connector Signal List
pin
No
Signal Name
definition I/O
1
TX1+
Send data 1 + Output O
2
TX1- Send data 1 - Output O
3
RX1+
Received data 1 + Input I
4
RX1- Received data 1 - Output I
5
Reserved Reserved signal line -
6
Reserved Reserved signal line -
7
PWR Power O
8
GND GND -
