4.2.4. DIO Interface
Item Specifications
DIO connector Type
HDRA-EA36LFDT-
SLE+ (Honda Tsushin Kogyo
Co.,Ltd.)
Digital output Number of status port 3 (Pass, ERR, RUN)
Number of general
purpose output port
5
Digital input
Number of script
selection port
8 (select from 255 types)
Number of general
purpose port
5
Number of control port 4 (STEP, START, EXT1, EXT2)
Clear signal 1(CLR)
Power input Power for output port DOCOM, DOVCC
Power for input port DICOM, DIVCC
Insulation Between input signal and output signal

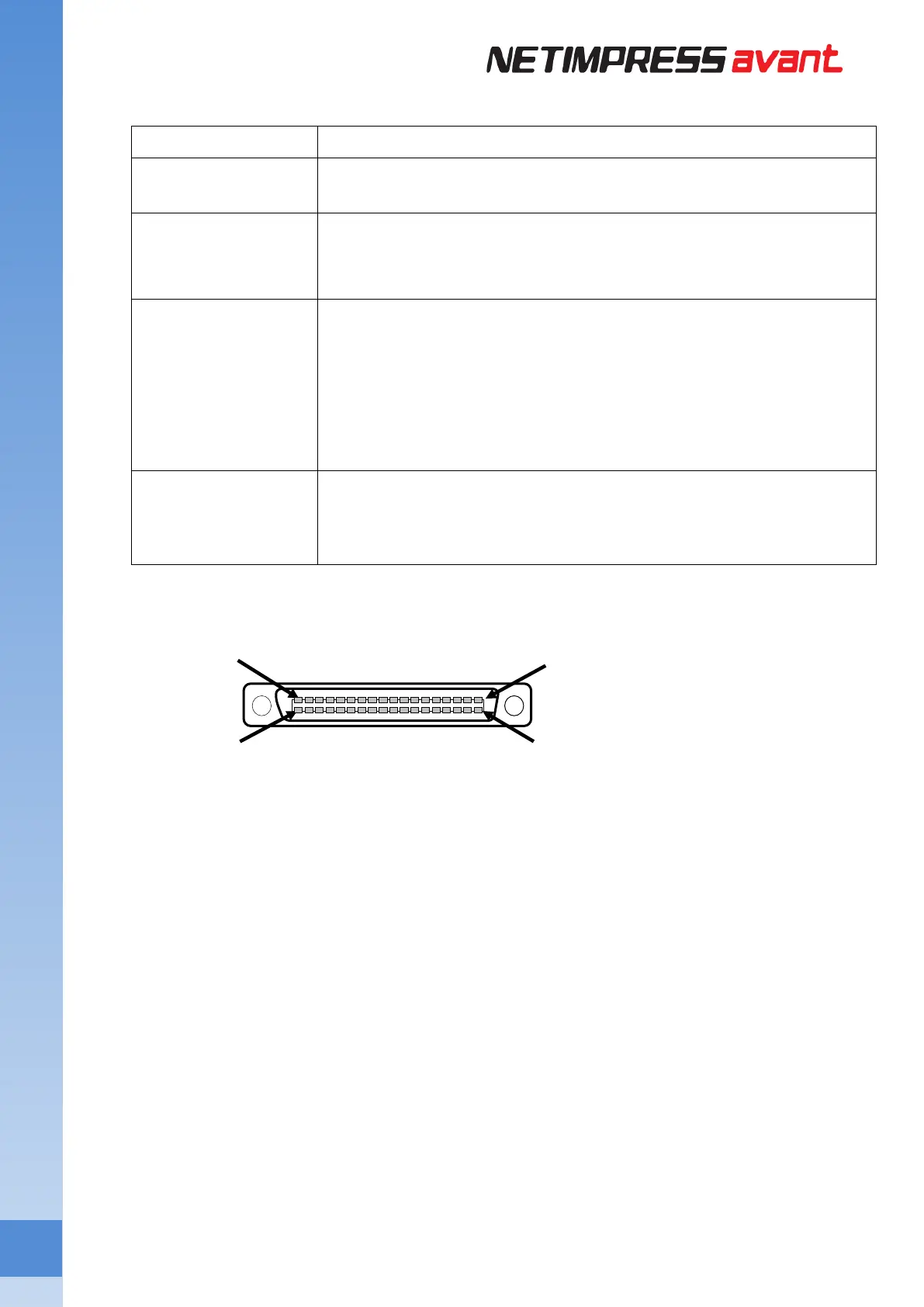

 Connector type
１
36
19
18
HDRA-EA36LFDT
(Honda Tsushin
Kogyo Co.,Ltd)
