5.2.3. PHX410

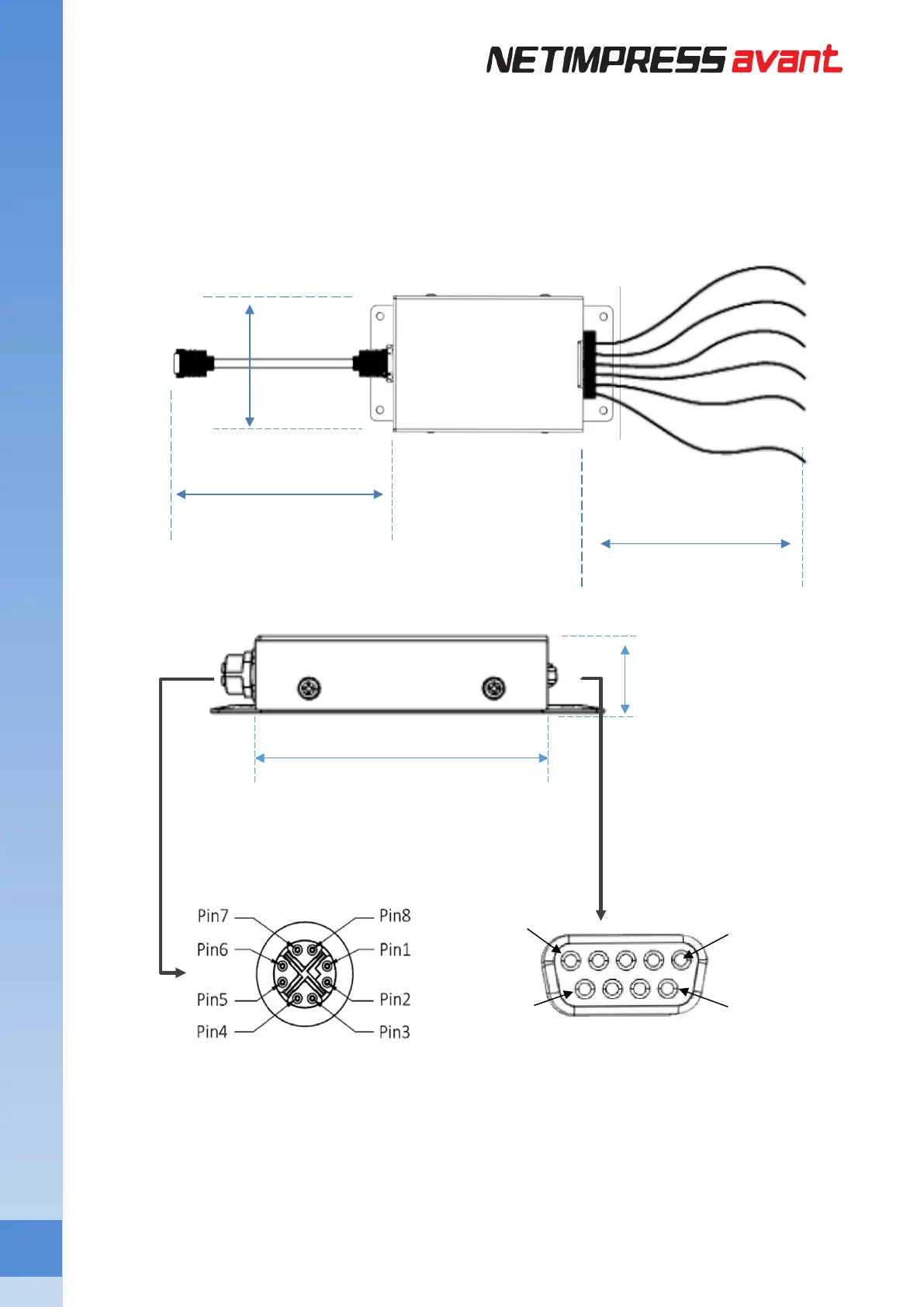

Dimensional drawing
Below shows surface and pins configuration
95(L)×65(W)×25(H)mm
MC08P2LPG30XSB2
(Cable Force)
5
1
9
6
RDED-9SE1/M2.6 (55)
（Hirose Electric Co.,LTD.）
95 ㎜
25 ㎜
300 ㎜
2000 ㎜
65 ㎜
