Dual 1226 - Record Drops When; Records Do Not Drop

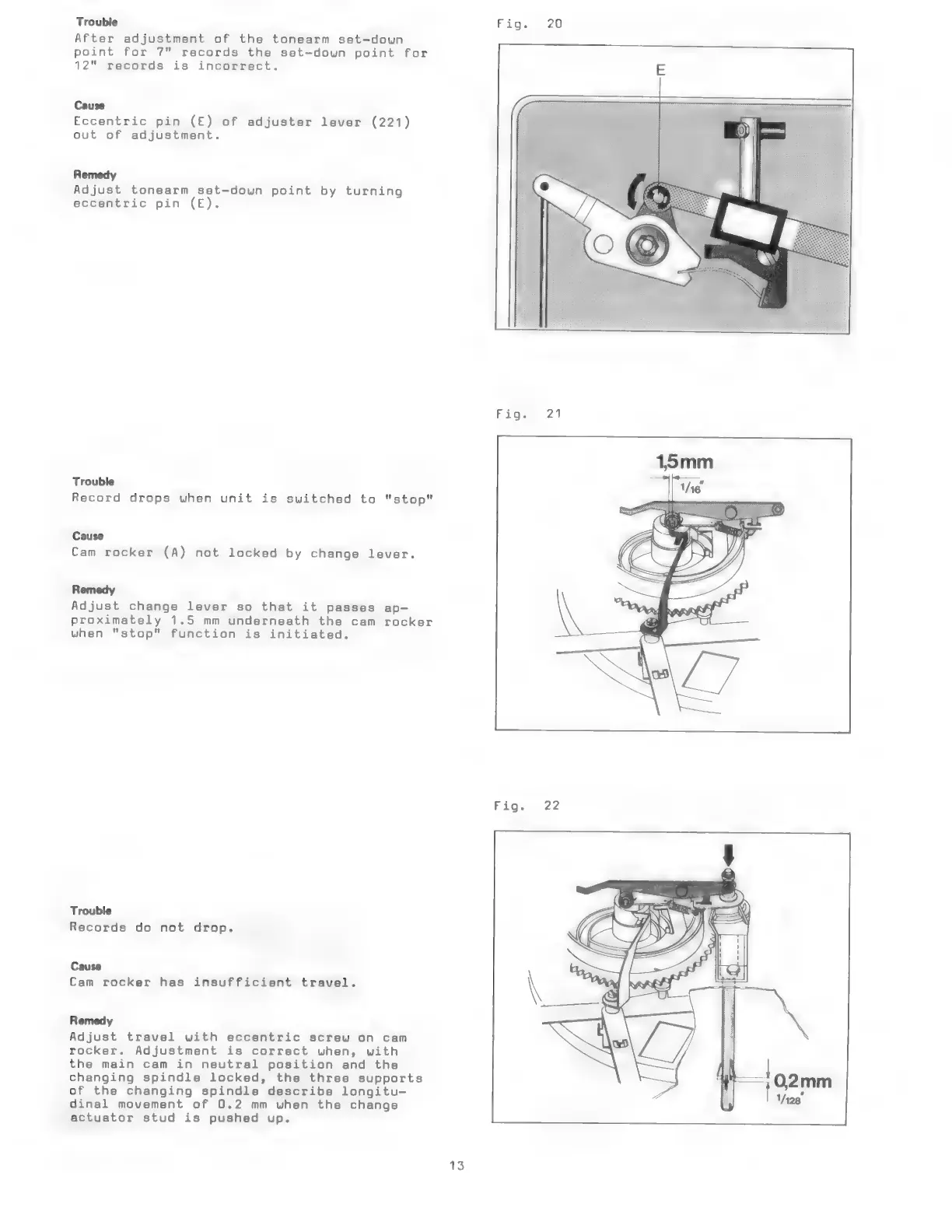

Trouble Fig. 20
After adjustment of the tonearm set-down
point for 7" records the set-down point for
12" records is incorrect.
Cause
Eccentric pin (E) of adjuster lever (221)
out of adjustment.
Remedy
Adjust tonearm set-down point by turning
eccentric pin (E).
Fig. 21
Trouble
Record drops when unit is switched to "stop"
Cause
Cam rocker (A) not locked by change lever.
Remedy
Adjust change lever so that it passes ap-
proximately 1.5 mm underneath the cam rocker
when "stop" function is initiated.
Fig. 22
Trouble
Records do not drop.
Cause
Cam rocker has insufficient travel.
Remedy
Adjust travel with eccentric screw on cam
rocker. Adjustment is correct when, with
the main cam in neutral position and the
changing spindle locked, the three supports
of the changing spindle describe longitu-
dinal movement of 0.2 mm when the change
actuator stud is pushed up.
13
