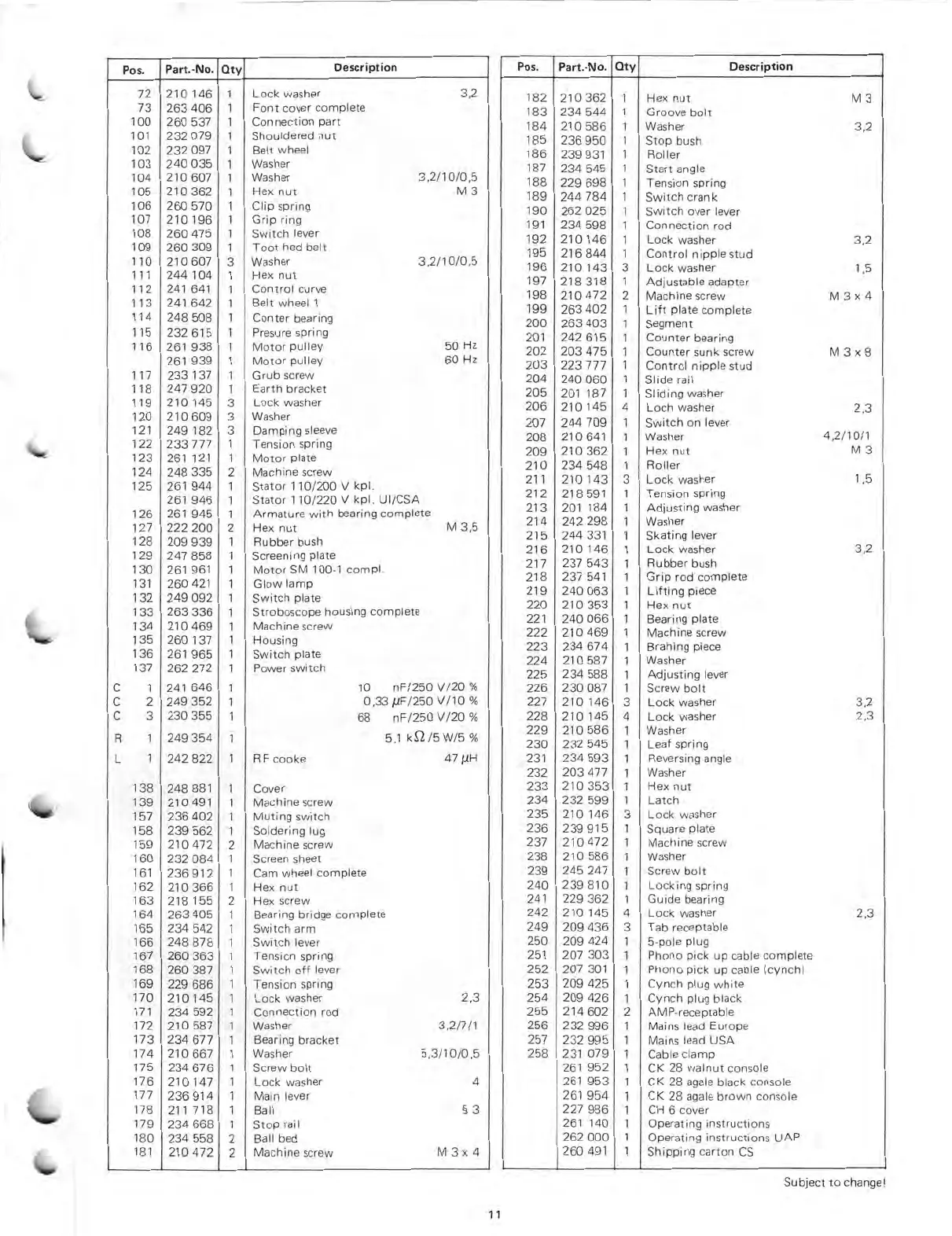

Dual 522 - Page 11

Pos.
Part.-No. Qty
Description
72 210 146
1 Lock
washer
3,2
73 263
406 1
Font cover
complete
100 260
537 1
Connection part
101 232 079 1 Shouldered nut
102 232
097 1 Belt wheel
103 240 035 1 Washer
104 210 607 1 Washer
3,2/10/0,5
105 210 362 1 Hex nut
M3
106 260 570 1 Clip
spring
107 210
196 1
Grip
ring
108
260 475 1 Switch lever
109 260 309 1 Toot hed belt
110
210 607 3
Washer 32/10/0,5
111 244 104 1 Hex nut
112 241 641 1 Control
curve
113 241 642 1 Belt
wheel 1
114
248 508 1
Conter
bearing
115 232 615 1 Presure
spring
116
261 938 1 Motor pulley
50
Hz
261 939 1
Motor pulley
60
Hz
117 233 137 1 Grub screw
118
247 920 1 Earth bracket
119 210 145 3 Lock washer
120 210 609 3 Washer
121 249
182 3 Damping
sleeve
122 233 777 1 Tension spring
123 261 121 1 Motor plate
124 248 335
2 Machine screw
125 261
944 1 Stator
110/200
V
kpl.
261 946 1 Stator 110/220
V kpl .
Ul/CSA
126 261 945 1 Armature
with
bearing
complete
127 222 200 2 Hex nut
M3,5
128 209 939 1 Rubber bush
129 247 858 1 Screening plate
130 261
961 1 Motor SM
100-1
compl .
131 260 421 1 Glow lamp
132
249
092 1
Switch plate
133
263 336 1
Stroboscope
housing
complete
134 210 469 1 Machine screw
135 260 137 1 Housing
136 261 965 1 Switch plate
137 262 272 1 Power switch
C 1 241 646 1
10
nF/250 V/20 %
C 2 249 352
1 0,33
biF/250
V/10 %
C 3 230 355 1
68
nF/250 V/20 %
R 1
249 354 1
5,1
k2/5
W/5 %
L 1 242 822 1 RF cooke
47 /IH
138
248 881 1 Cover
139 210
491 1 Machine screw
157 236 402 1 Muting switch
158
239
562 1
Soldering lug
159 210 472 2 Machine screw
160
232 084 1 Screen sheet
161 236 912 1
Cam wheel complete
162 210 366 1 Hex nut
163 218 155 2 Hex screw
164 263 405 1
Bearing bridge complete
165 234 542 1 Switch arm
166 248 878 1 Switch lever
167
260 363 1
Tension spring
168
260
387 1
Switch off lever
169 229 686 1 Tension
spring
170 210 145 1 Lock washer
2,3
171
234 592 1 Connection rod
172
210
587 1 Washer
3,2/7/1
173
234
677 1
Bearing bracket
174
210 667 1
Washer
5,3/10/0,5
175
234
676 1
Screvv bolt
176
210
147 1 Lock
washer
4
177
236 914 1
Main lever
178 211 718
1 Ball § 3
179
234
668
1 Stop rail
180 234 558
2 Ball bed
181
210
472 2 Machine screw
M 3 x 4
Pos.
Part.-No. Qty
Description
182
210 362 1
Hex nut M3
183 234 544 1
Groove bolt
184
210 586 1 Washer
3,2
185
236 950 1 Stop
bush
186 239 931 1 Roller
187 234 545
1 Start angle
188
229 698 1 Tension spring
189 244 784
1 Switch
crank
190
262 025 1
Switch over lever
191
234 598 1
Connection rod
192 210 146
1 Lock
washer
3,2
195 216 844
1 Control
nipple stud
196
210
143 3
Lock washer
1,5
197
218 318 1
Adjustable
adapter
198 210
472 2
Machine screw M 3 x 4
199
263 402 1
Lift plate complete
200
263
403
1
Segment
201 242 615
1
Counter bearing
202 203 475
1 Counter sunk
screw
M 3 x 8
203 223 777 1
Control nipple
stud
204
240 060 1
Slide rail
205
201
187 1 Sl iding washer
206 210
145 4
Loch washer
2,3
207
244 709 1 Switch on
lever
208 210 641 1
Washer
4,2/10/1
209 210 362
1 Hex nut
M3
210
234 548 1
Roller
211 210
143 3
Lock
washer
1,5
212 218 591 1 Tension
spring
213 201 184 1 Adjusting
washer
214 242 298 1 Washer
215 244 331
1 Skating lever
216 210 146 1 Lock
washer
3,2
217 237 543 1 Rubber bush
218 237 541 1 Grip
rod complete
219 240 063 1 Lifting piece
220 210 353 1 Hex nut
221 240 066 1 Bearing plate
222 210 469 1
Machine screw
223 234 674 1 Brahing piece
224 210 587 1 Washer
225 234 588 1 Adjusting lever
226 230 087 1 Screw bolt
227 210 146 3
Lock washer
3,2
228 210
145 4 Lock washer
2,3
229 210 586 1 Washer
230 232 545 1 Leaf spring
231 234 593 1 Reversing angle
232 203 477
1 Washer
233 210 353 1
Hex nut
234 232
599 1 Latch
235 210
146 3 Lock washer
236 239 915 1 Square plate
237 210 472 1 Machine screw
238 210 586 1 Washer
239 245
247 1 Screvv bolt
240 239 810
1 Locking spring
241 229 362 1
Guide bearing
242 210
145 4 Lock
washer 2,3
249 209 436
3 Tab receptable
250
209 424 1 5 -pole plug
251 207 303 1
Phono pick up cable complete
252
207 301 1
Phono pick up cable
(cynch)
253 209 425
1 Cynch plug
vvhite
254
209 426 1 Cynch
plug black
255
214 602 2
AMP-receptable
256 232
996 1 Mains
lead Europe
257 232 995
1 Mains lead
USA
258
231 079 1
Cable clamp
261 952 1 CK
28 vvalnut
console
261 953 1 CK
28 agale bleck console
261 954 1 CK
28 agale brown console
227
986 1 CH 6 cover
261 140
1 Operating
instructions
262 000 1
Operating instructions
UAP
260 491 1
Shipping carton
CS
11
Subject
to change!
