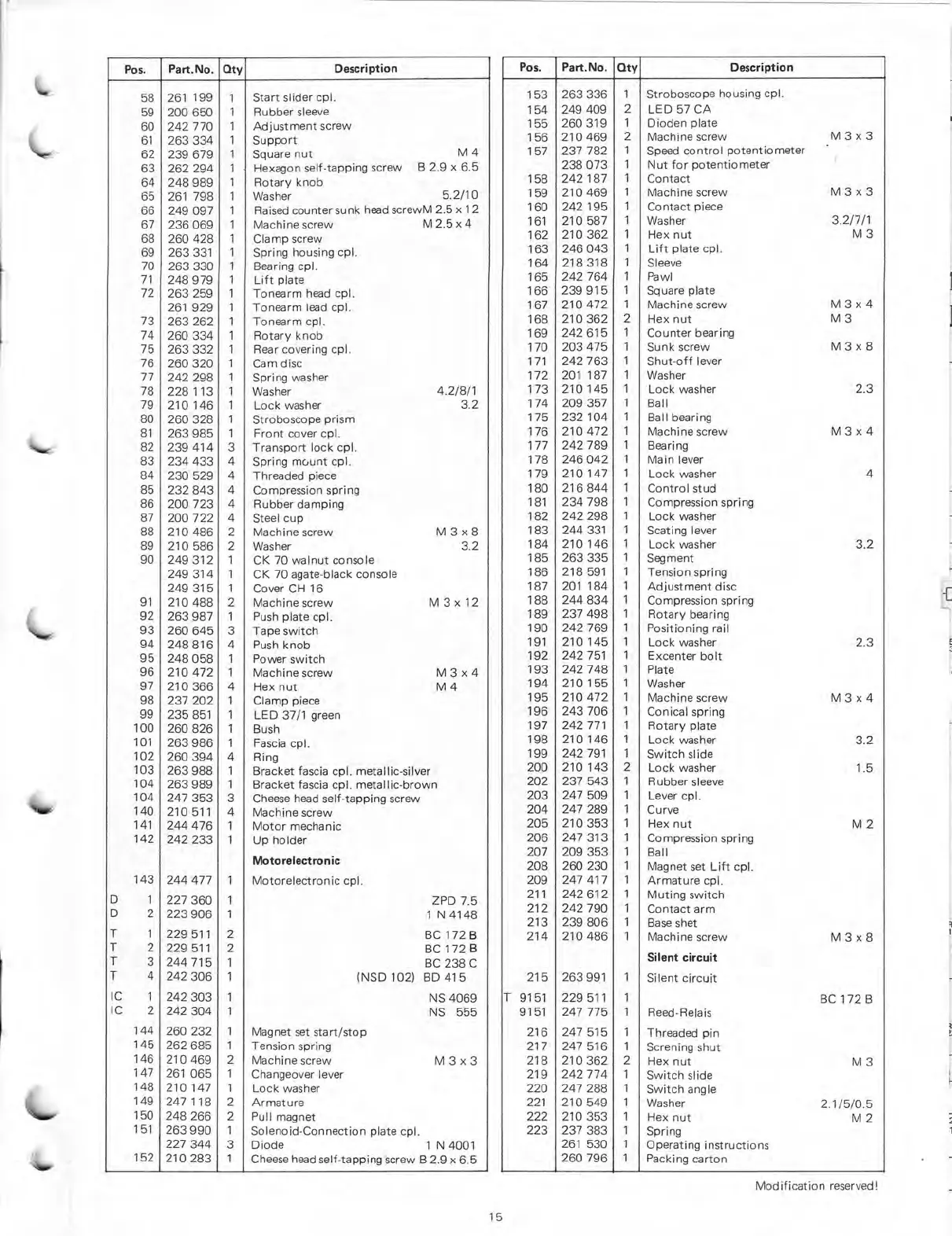

Dual CS 650 RC Service Manual

Pos.
Part.No. Qty
Description
58
261 199 1 Start
slider cpl.
59 200 650
1 Rubber
sleeve
60 242 770
1
Adjustment screw
61 263
334 1
Support
62 239 679 1
Square nut
M 4
63 262 294
1 Hexagon
seif-tapping screw B
2.9 x 6.5
64 248 989
1 Rotary knob
65 261 798 1
Washer
5.2/10
66 249 097
1
Raised counter
sunk head
screwM 2.5 x 12
67
236 069 1
Machine screw
M 2.5 x 4
68 260 428 1 Clamp screw
69 263 331 1
Spring housing cpl.
70
263 330 1
Bearing cpl.
71
248 979 1 Lift plate
72
263 259
1 Tonearm head cpl.
261 929 1 Tonearm
lead cpl.
73
263 262 1 Tonearm cpl.
74 260 334 1 Rotary knob
75 263 332 1 Rear covering cpl.
76
260 320 1 Cam disc
77
242 298 1 Spring
washer
78 228 113 1 Washer
4.2/8/1
79
210 146 1 Lock
washer
3.2
80
260 328 1
Stroboscope prism
81 263 985 1 Front cover cpl.
82 239 414
3
Transport lock cpl .
83 234 433 4 Spring mount cpl.
84 230 529
4 Threaded piece
85 232 843 4
Compression spring
86 200 723 4 Rubber damping
87 200 722
4 Steel cup
88 210
486 2 Machine screw
M
3 x 8
89 210
586 2 Washer
3.2
90 249
312 1 CK 70 walnut
console
249 314 1 CK 70 agate-black
console
249
315 1 Cover CH
16
91
210 488 2
Machine screw
M
3 x 12
92 263 987 1
Push plate cpl.
93
260 645 3 Tape
switch
94
248
816 4 Push knob
95 248
058 1 Power
switch
96 210
472 1
Machine screw
M 3 x 4
97
210
366 4 Hex nut
M4
98 237 202 1 Clamp piece
99
235 851 1 LED
37/1
green
100 260
826 1
Bush
101
263
986 1
Fascia cpl.
102
260
394 4 Ring
103
263
988 1
Bracket
fascia cpl. metallic-silver
104
263 989 1
Bracket fascia cpl.
metallic-brown
104
247
353 3
Cheese head seif-tapping screw
140
210
511 4
Machine screw
141
244
476 1
Motor mechanic
142
242
233 1
Up holder
Motorelectronic
143
244
477
1 Motorelectronic cpl.
D
1
227 360 1
ZPD
7.5
D
2
223 906
1
1 N4148
T
1
229
511
2
BC 172 B
T
2
229
511
2
BC 172 B
T
3
244 715 1
BC 238 C
T
4
242 306 1
(NSD 102) BD 415
IC 1
242
303 1
N54069
IC
2
242
304
1
NS
555
144
260
232 1
Magnet set start/stop
145
262 685 1
Tension spring
146
210
469 2
Machine
screw M
3 x 3
147
261
065
1 Changeover lever
148
210
147
1 Lock washer
149
247
118 2
Armature
150
248 266
2
Pull
magnet
151
263
990 1
Solenoid-Connection
plate cpl.
227
344 3
Diode
1 N 4001
152
210
283
1
Cheese head self-tapping
screw B 2.9 x 6.5
Pos.
Part.No. Oty
Description
153
263
336 1
Stroboscope
housing cpl.
154
249 409 2
LED 57 CA
155
260 319 1
Dioden plate
156
210 469 2
Machine screw
M 3 x 3
157
237 782 1
Speed control
potentiometer
.
238 073
1 Nut for
potentiometer
158 242
187 1 Contact
159 210 469
1 Machine screw
M 3 x 3
160 242 195 1 Contact
piece
161
210 587
1
Washer
3.2/7/1
162
210
362 1 Hex
nut
M3
163
246 043 1 Lift plate cpl.
164
218 318 1 Sleeve
165
242
764 1
Pawl
166
239 915 1 Square plate
167
210 472 1 Machine screw
M 3 x
4
168 210 362 2
Hex nut
M3
169 242 615 1 Counter bearing
170 203 475
1 Sunk screw
M 3 x 8
171 242 763 1 Shut-off lever
172
201 187 1
Washer
173 210 145 1 Lock washer
2.3
174
209 357 1 Ball
175 232 104
1 Ball bearing
176 210 472 1 Machine screw
M 3 x 4
177 242 789 1 Bearing
178 246 042
1
Main
lever
179 210 147 1 Lock washer 4
180
216 844 1
Control
stud
181 234
798 1 Compression spring
182 242
298 1 Lock washer
183 244 331 1 Scating lever
184 210 146
1 Lock washer 3.2
185 263 335 1
Segment
186 218 591
1 Tension spring
187 201 184 1
Adjustment
disc
188 244 834 1
Compression
spring
189 237 498 1
Rotary
bearing
190
242 769
1
Positioning raul
191 210 145
1 Lock washer
2.3
192 242 751 1
Excenter bolt
193 242 748 1
Plate
194 210 155
1 Washer
195 210 472 1
Machine screw M
3 x 4
196 243 706
1
Conical
spring
197 242 771 1
Rotary plate
198 210 146 1
Lock washer
3.2
199 242 791 1
Switch slide
200 210 143 2
Lock washer
1.5
202 237 543 1
Rubber
sleeve
203 247 509 1
Lever
cpl.
204
247 289
1
Curve
205
210 353 1 Hex nut
M2
206 247 313
1
Compression spring
207
209
353
1 Bal l
208 260 230
1 Magnet set
Lift cpl.
209 247 417 1
Armature cpl.
211
242 612 1
Muting switch
212
242 790
1
Contact arm
213 239
806 1 Base shet
214
210 486 1
Machine
screw M
3 x 8
Silent circuit
215 263
991 1
Silent
circuit
T 9151 229
511 1
BC 172 B
9151 247 775 1
Reed
-Relais
216
247 515 1
Threaded pin
• 217 247
516 1
Screning
shut
218 210 362 2
Hex
nut
M3
219 242 774
1
Switch slide
220
247 288 1
Switch angle
221 210
549 1
Washer
2.1/5/0.5
222 210
353 1
Hex nut
M
2
223
237 383 1
Spring
261 530
1
Operating
instructions
260
796 1
Packing
carton
5
5
15
Modification
reserved!
