Ducane 4AC13 - Model Number Guide; Electrical and Physical Data; Unit Dimensions & Sound Ratings

4AC13 Split System Air Conditioner
13
Model
Voltage/ Hz/
Phase
Voltage
Range
Min.
Circuit
Amp.
Max.
Fuse
(amps)*
Compressor Fan Motor
Refrig.
Charge
(oz.)**
Weight
(lbs.)
Rated
Load
(Amps)
Locked
Rotor
(Amps)
Full Load
Amps
Rated
HP
Nom.
RPM
Wire
Guard/
Louvered
4AC13(B,L)18P-1A 208-230/60/1 197 - 253 11.9 20 9.0 48 0.7 1/10 1075 72 129/139
4AC13(B,L)24P-1A 208-230/60/1 197 - 253 17.5 25 13.4 58.3 0.7 1/10 1075 75 130/140
4AC13(B,L)30P-1A 208-230/60/1 197 - 253 16.7 25 12.8 64 0.7 1/10 1075 98 166/179
4AC13(B,L)36P-1A 208-230/60/1 197 - 253 18.7 30 14.1 77 1.1 1/5 1075 106 172/187
4AC13(B,L)42P-1A 208-230/60/1 197 - 253 23.5 35 17.9 112 1.1 1/5 1075 126 207/229
4AC13(B,L)48P-1A 208-230/60/1 197 - 253 28.3 40 21.8 117 1.1 1/5 1075 140 222/238
4AC13(B,L)60P-1A 208-230/60/1 197 - 253 34.2 50 26.4 134 1.2 1/4 1075 166 239/256
 4 AC 13 B/L 24 P - 1 A 
 ModelNumberGuide
Refrigerant – R410a
AC = Condenser
13 - 13 SEER Nominal
Family / Coil Protection
B = Non-Louvered
L = Louvered
Minor Revision Code
Major Revision Code
Voltage
P - 208-230v/60hz
Single Phase
Nominal Capacity
24 - 24,000 Btuh
ElectricalandPhysicalData
* Overcurrent protection device
** Factory charge adequate for 15 feet of line set. Adjust per Installation Instructions

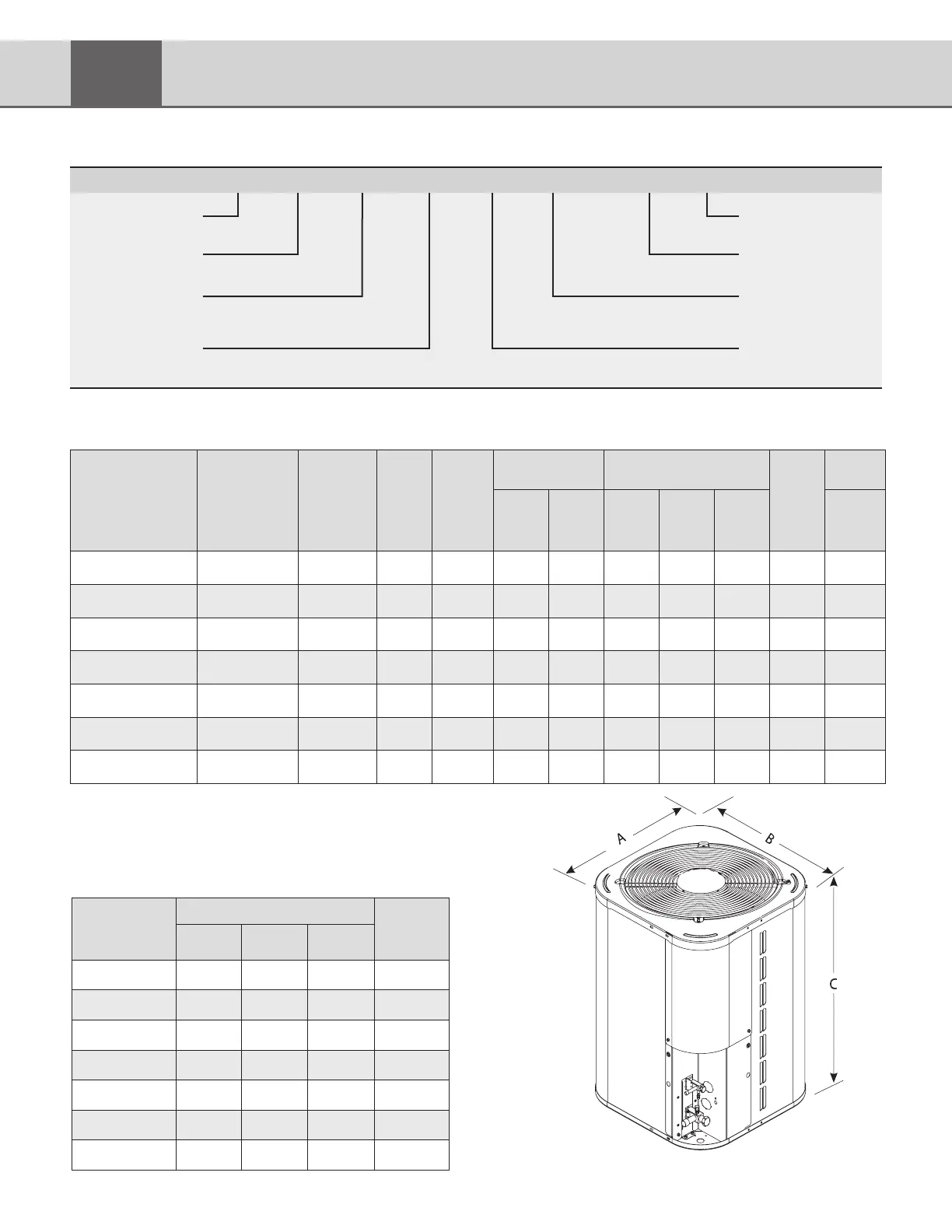

 UnitDimensions&SoundRatings
Model
Dimensions
Sound
Ratings
(dBa)
A - width
(in.)
B - depth
(in.)
C - height
(in.)
4AC13(B,L)18P-1A 22.5 22.5 25 76
4AC13(B,L)24P-1A 22.5 22.5 25 76
4AC13(B,L)30P-1A 30 30 25 78
4AC13(B,L)36P-1A 30 30 29 76
4AC13(B,L)42P-1A 30 30 37 78
4AC13(B,L)48P-1A 30 30 29 80
4AC13(B,L)60P-1A 30 30 33 80
