Ducar 161CC - Lawnmower Description and Assembly; 1-DESCRIPTION; 2-HANDLE ASSEMBLY

3
IMPORTANT: Read with care the security requirements included in the
engine manual before the first use of the engine.
SUMMARY:
1.DESCRIPTION
2
. HANDLE ASSEMBLY
3. ADJUSTMENT
OF CUTTING HEIGHT
4. SAFETY
PRECAUTIONS
5.OPERATION
6.SAFETY RULES
7.MAINTENANCE
8.EXPLODING
VIEW
9.GUARANTEE
10. CERTIFICATE OF CONFORMITY

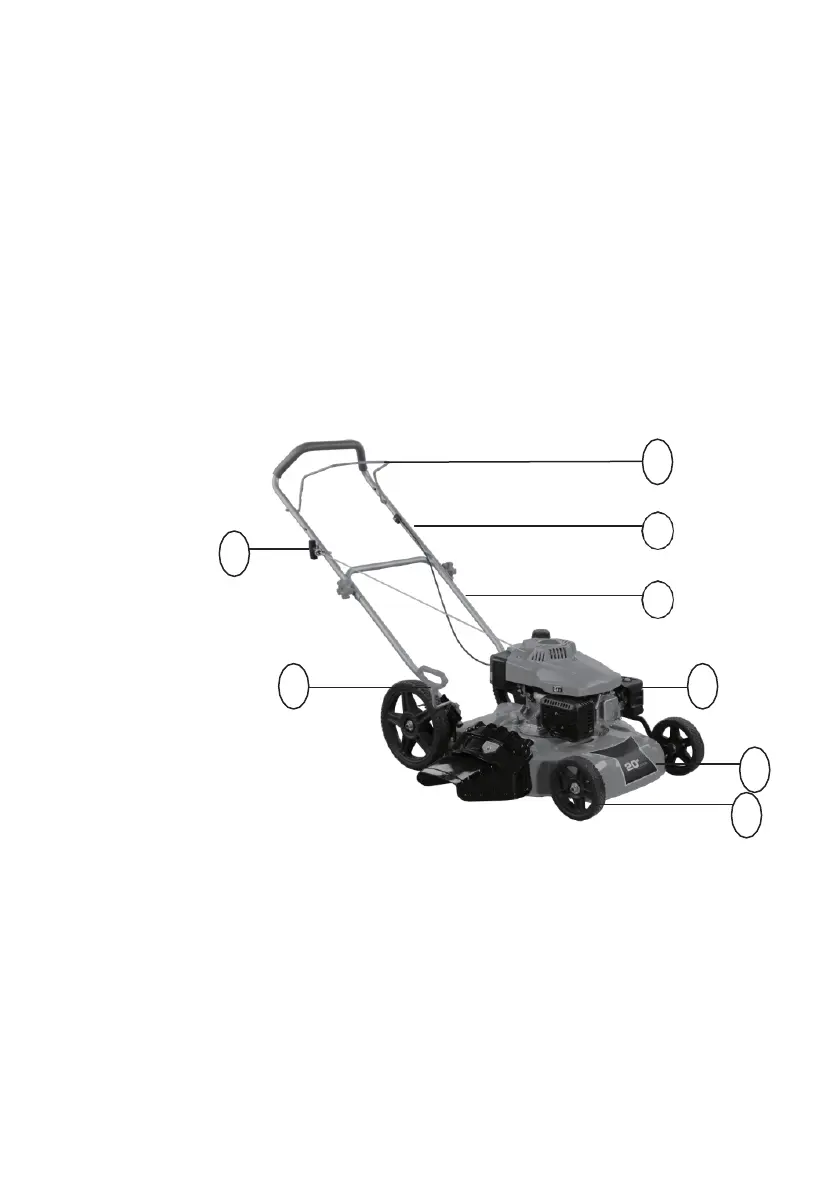

1-DESCRIPTION
1. Engine control bar
1
2. Superior handle
3. Inferior handle
2
4. Engine
7
5.
Carter
3
6.Wheel
7.Recoil Starter
8. Adjust handle
8
4
5
6
2- ASSEMBLY OF THE HANDLE
Open out the handle and screw the handles parts with the two screws and plastic nuts.
Put the recoil starter on the right of the handle and fix the cable with the plastic collar.
Introduce the rope of the recoil starter handle on its support guide rope.
Adjust the traction cable : Make sure the lever is fully engage on the gearbox.
Adjust the safety break cable : Make sure the engine stop right after you let go the
handle. The cable should not be under any tension after the handle is release.
