Ducar 161CC - Throttle Control Cable Regulation; 2 IN 1 FUNCTION (Mulching & Side discharge)

6
6.1 The regulation method of throttle control cable：
On the brake stand of flameout，there are switch of flameout,，if the cable is
elongates, make throttle control（3） against the superior handle，rocker of
brake can’t touch the switch of flameout，spark plug do not create spark，
engine can’t run. This time，you need regulate the cable.
The method is as follows
Method 1：
1） Dismantle throttle control，and Dismantle the top of cable，then use
spanner Loosen the nut of regulate the screw；
2） Revolve the regulate the screw to make the plastics set lengthen，then will
avoid the length of cable that has lengthen out.；
3） After regulation，fix the cable into the throttle control , （Simple method to
put the throttle control into superior handle easy.）: put right end of the throttle
control into the superior handle first, then put the other end of throttle control
into the superior handle.）。
4） Tension the throttle control（3）to against the superior handle ,this time ,
the angle of rocker of brake to cover is 90°（or the distance of brake stand to
rocker of brake is 1-2mm，otherwise ，if it is no distance ，the cable will break
off.；
5） Use spanner screw down the nut after regulation;
6） Contrarily，Repeat the method above ,as far as the spark plug create spark.
Method 2：
remove the dipstick，and dismantle the end of cable ，use tool to make a larger
angle depend on pull the support of cable.

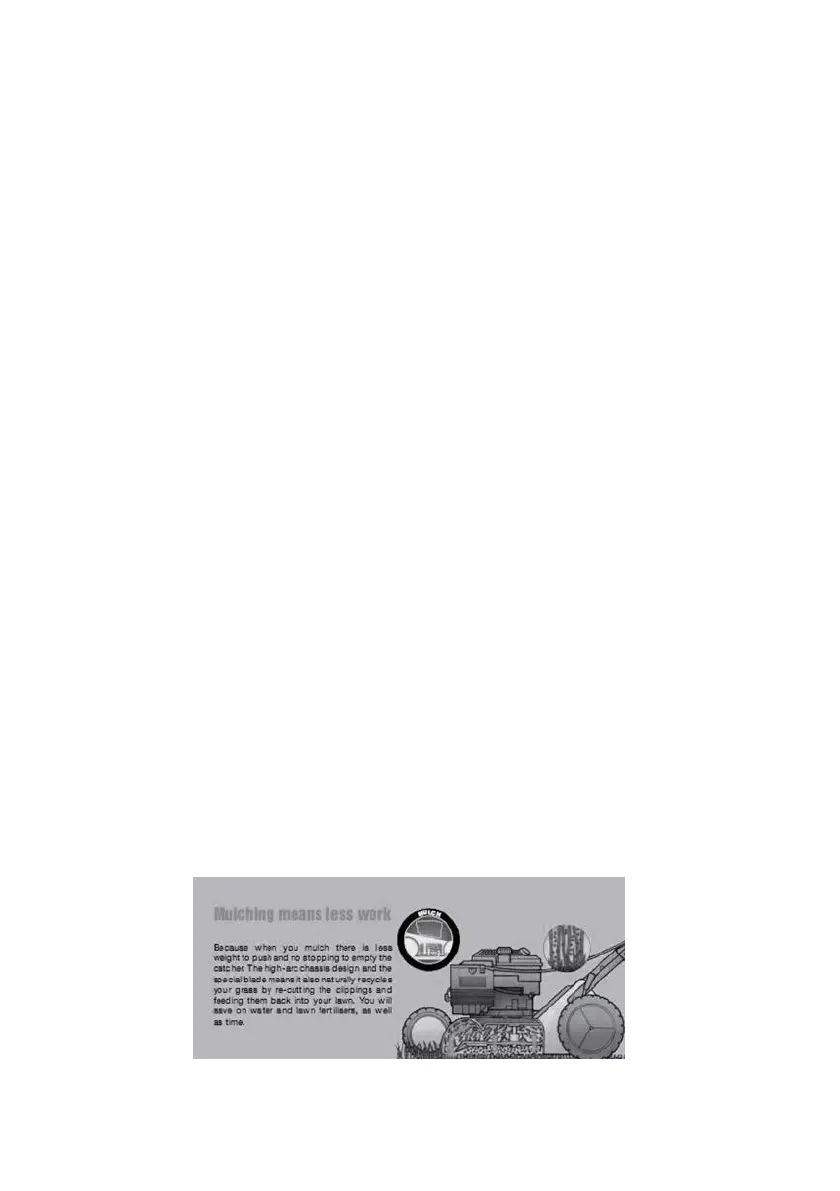

6.2 2 IN 1 FUNCTION ( Mulching & Side discharge)
1. mulching mower or as
