ASSEMBLY

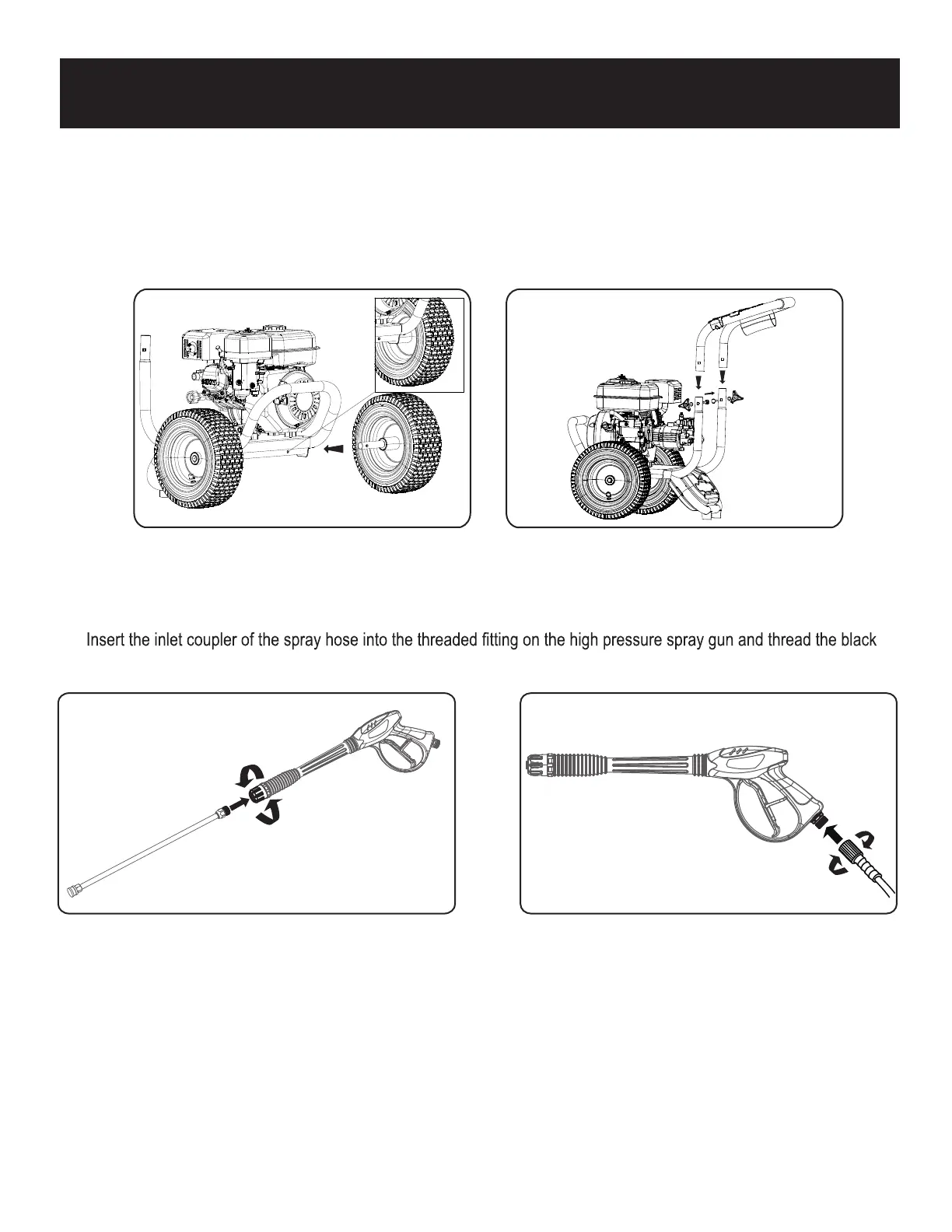

Install Handle (See fig 1 & 2)
• Install the wheel assembly into the frame sleeve on the side of the fuel tank. The wheel spring button is aligned with
the casing hole and pops out.
• Install upper frame (handle) onto the lower frame by sliding the handle over the two upright tubes on the lower frame
and pressing down firmly until the handle is seated and the two detent pins snap in place.
FIG 1
11
• Screw the spray wand and the trigger handle together until they are secure.
•
nut on by turning clockwise until it is hand tight.
FIG 3
FIG 4
Attaching the Spray Gun (See fig 3 & 4)
FIG 2
