Note: When setting the height of the cutter head, grasp the
handle of the height adjustment lever, only when it is fixed
Release your hand only when you are in the required card
slot. If the adjustment lever is released quickly, it may
cause a danger of squeezing or pulling the operator's hand.

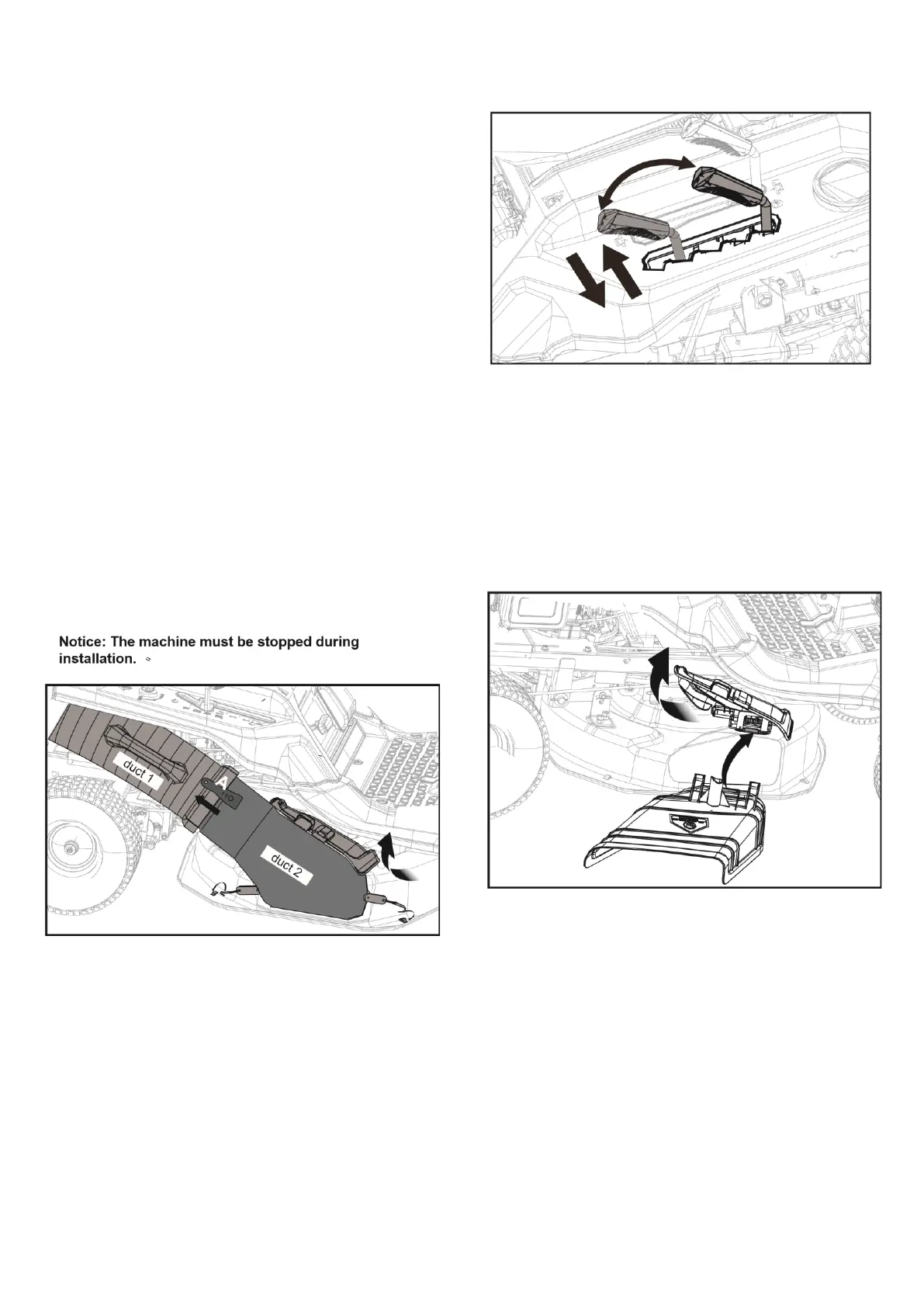

Install the rear duct Assembling the side discharge chute
1.Adjust cutter (7)to lowest gear. 1.Adjust cutter (7)to lowest gear.
2.Insert the duct 1 to grass catcher deeply. 2.Hold the side cover switch and flip the side cover up.
3.Hold the side cover switch and flip the side cover up. 3.place side discharge chute to bayonet。
4.Place duct 2 in bayonet. 4.Release the side discharge cover to secure the duct in
position
5.Hang the two tension springs on the cutter deck.
6.Connect duct 1 to duct 2 and hang rubber A on side Notice: The machine must be stopped during discharge
chute. installation.
7.Release the side discharge cover to secure the duct in position
