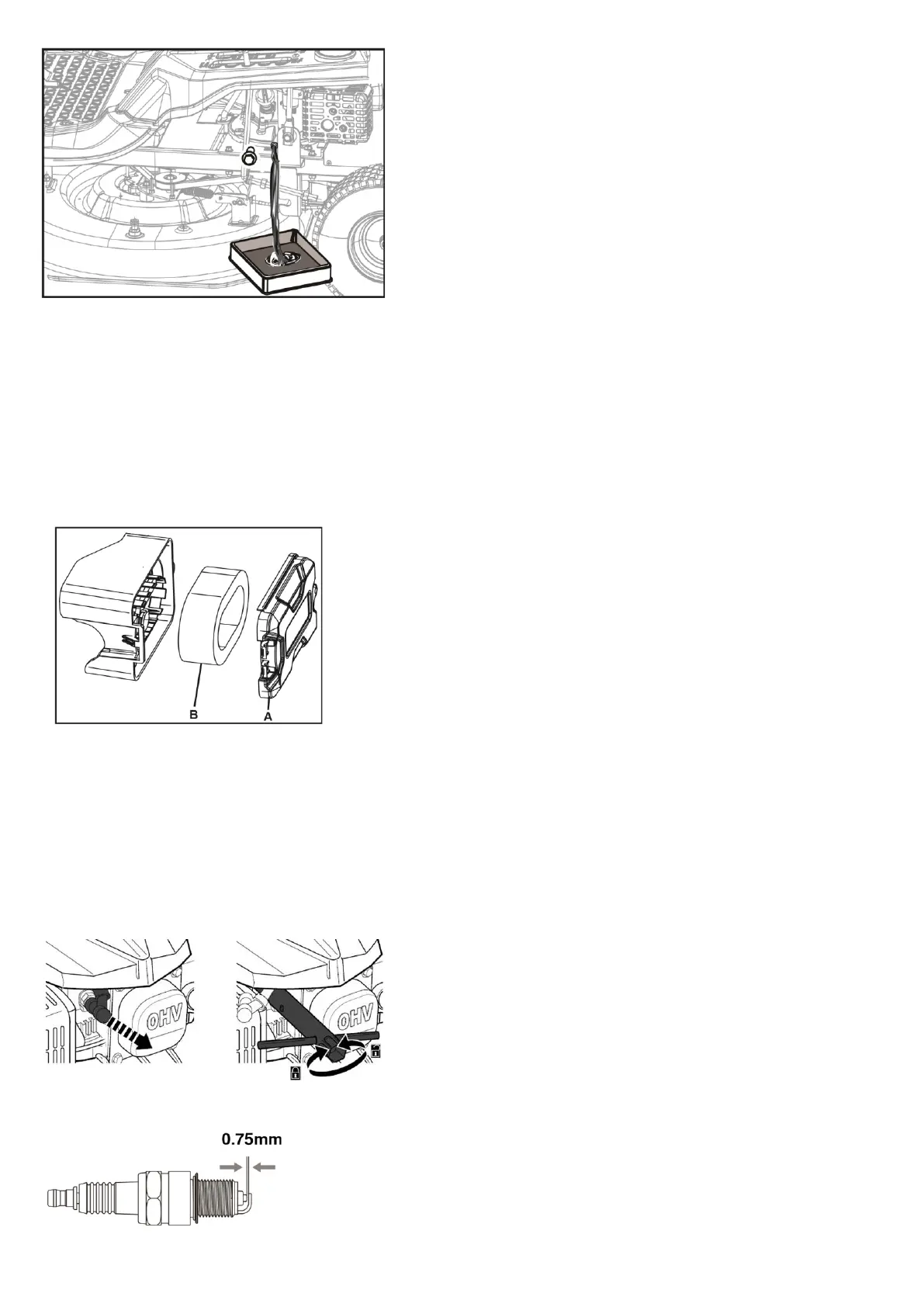

Air filter maintenance
Fouled air filters (19) diminish the motor performance due to
reduced air supply to the carburettor. Regular inspection is
therefore essential.
The air filter should be checked every 25 operating hours and
cleaned as required. The air filter must be checked more often
in case of very dusty air.
• Before check air filter, fold the seat first.
• Open the air fliter.
• Open air filter cover (A) ,Remove air filter element (B).
• Clean the paper filter (B) with compressed air only or by
knocking them out.
Important: Never clean the air filter with petrol or in lammable
cleaning agents. Clean the paper filter with compressed air or
simply by knocking out any soiling.
Maintenance of the spark plug
Check the spark plug for dirt and grime after 10 hours of opera-
tion and if necessary clean it with a copper wire brush. Thereaf-
ter service the spark plug after every 50 hours of operation.
Pull off the spark plug boot with a twist. Remove the spark plug
(22) with a spark plug wrench
Using a feeler gauge, set the gap to 0.75mm( 0.030”). Refit the
spark plug (22)taking care not to overtighten.
Replace fuse
• The electrical start is protected with a 5 A fuse.
• Never use another fuse or bypass the fuse.
Battery Pack and Charger
Damp areas can cause corrosion of terminals and electrical
contacts. If stored for long periods in high temperatures (120°
F / 50° C), perma-nent damage to the battery pack can result.
Check electrical terminals and contacts on battery packs and
charger. Wipe with clean cloth or blow clean with compressed
air.
After storage, a normal charge may be required. To check
available charge, press the Battery Fuel Gauge button and
charge if required. See the Bat-tery Fuel Gauge section.
Tyre pressure:
Check the tyre pressure prior to starting!
The correct tyre pressure is 1.8 bar in the front wheels and 1.3
bar in the rear wheels.
Important: If the tyre pressure is too low, the risk of damage to
the valves and therefore the hoses increases.
Repairs
After any repair or maintenance work, check that all safetyre-
lated parts are in place and in proper work-ing order. All parts
which may cause injury must be kept where they are inacces-
sible to children or oth-ers.
Important: In accordance with product liability legis-lation
we are not liable for any damages caused by improper re-
pairs or the use of spare parts that are not original spare
parts or parts approved by us.
In addition, we are also not liable for any damages arising from
improper repairs. Such work should be performed by a custo-
mer services workshop or au-thorized specialist. The same ap-
plies to accessory parts.
Service information
Please note that the following parts of this product are subject
to normal or natural wear and that the fol-lowing parts are
therefore also required for use as consumables. Wear parts*:
Spark plug, air filter, pet-rol filter, blade, v-belt, battery, blade,
tyres
* Not necessarily included in the scope of delivery
22. Storage
Store the device and its accessories in a dark, dry and
frostfree place that is inaccessible to children. The opti-
mum storage temperature lies between 5 and 30 ˚C. Store
the operating manual with the tool.
• Never store the machine with petrol in the tank in-side a buil-
ding in which fuel vapours may come into contact with naked
flames or sparks
• Allow the engine to cool before storing it.
• In order to reduce the risk of fire, keep the engine, exhaust,
battery box and the area surrounding the fuel tank free of
grass, straw, moss, leaves or es-caping grease.
Preparing the mower for long-term storage Caution: Do
not empty the petrol tank in enclosed areas, near fire or
when smoking. Petrol fumes can cause explosions and fire.
• Empty the petrol tank with a petrol suction pump.
