Use and maintenance manual
ASSEMBLY
The bicycle is delivered as
preassembled to the local Dealer,
or to the address indicated during
the purchase phase.
Either the new owner or the
retailer is tasked with completing
the assembly of the components
supplied with the bicycle, by
following the various preparation
phases indicated below:

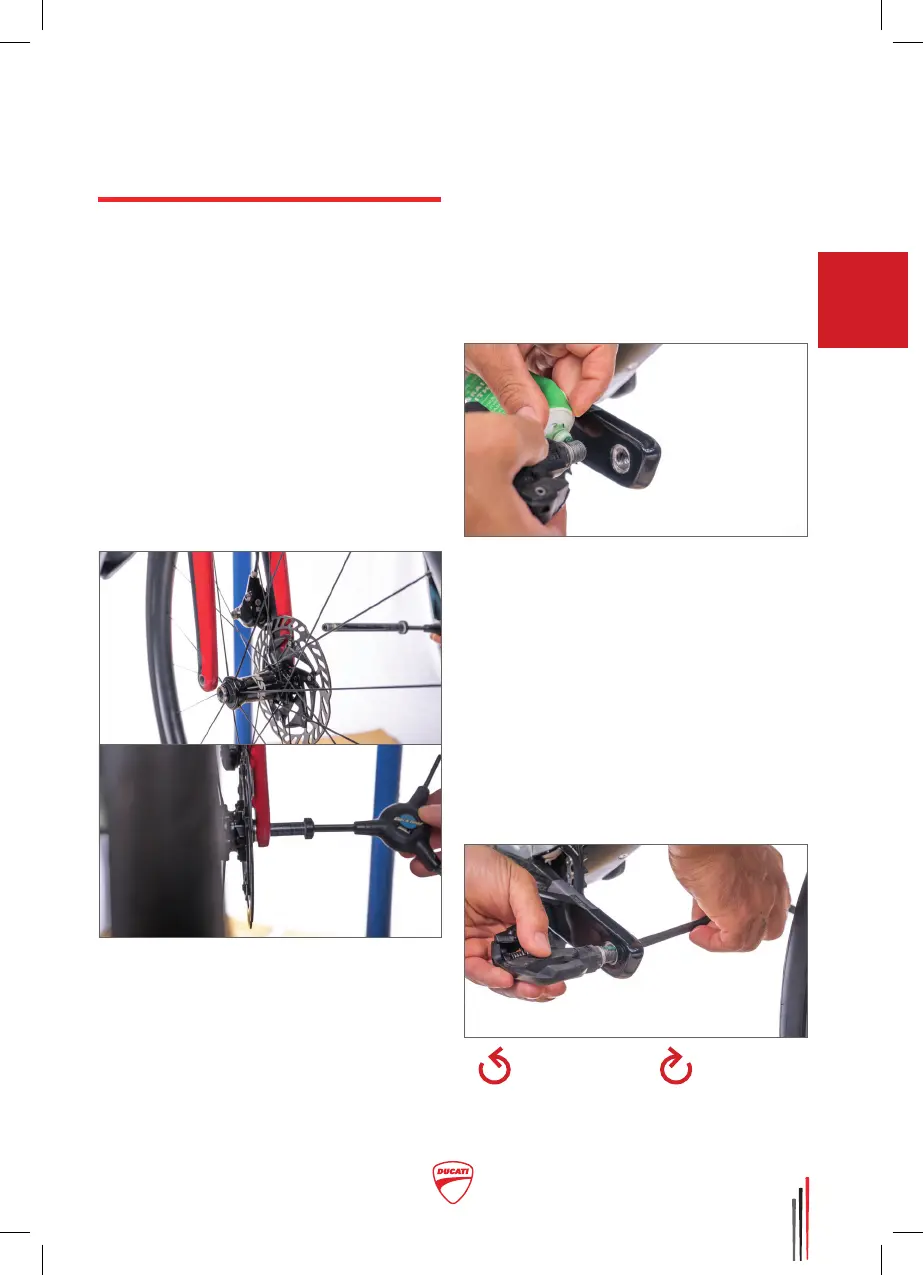

–Installing the front wheel:
Insert and tighten the axle to the
bottom while maintaining the
tightening torque indicated on the
axle itself.
–Installing the pedals:
Unscrew the through-axle of the fork
and remove it; remove the spacer
inside the brake calliper; put a layer
of grease on the axle. Insert the wheel
between the fork blades, positioning
it with the disc on the left side making
sure that the disc enters between the
calliper pads.
Pay great attention during this
operation. Before proceeding, apply a
layer of grease on the thread of the
pedal.
The thread of the right pedal is
; it is
therefore important to screw every
pedal by rotating the axle of the pedal
in the direction, as illustrated in the
picture based on the left or right side
of the bicycle.
RIGHT
PEDAL (R)
LEFT
PEDAL (L)
Direction of rotation of the axle, indicated by the
corresponding side of the bicycle, to screw in the
pedals: left pedal (L); right pedal (R).
