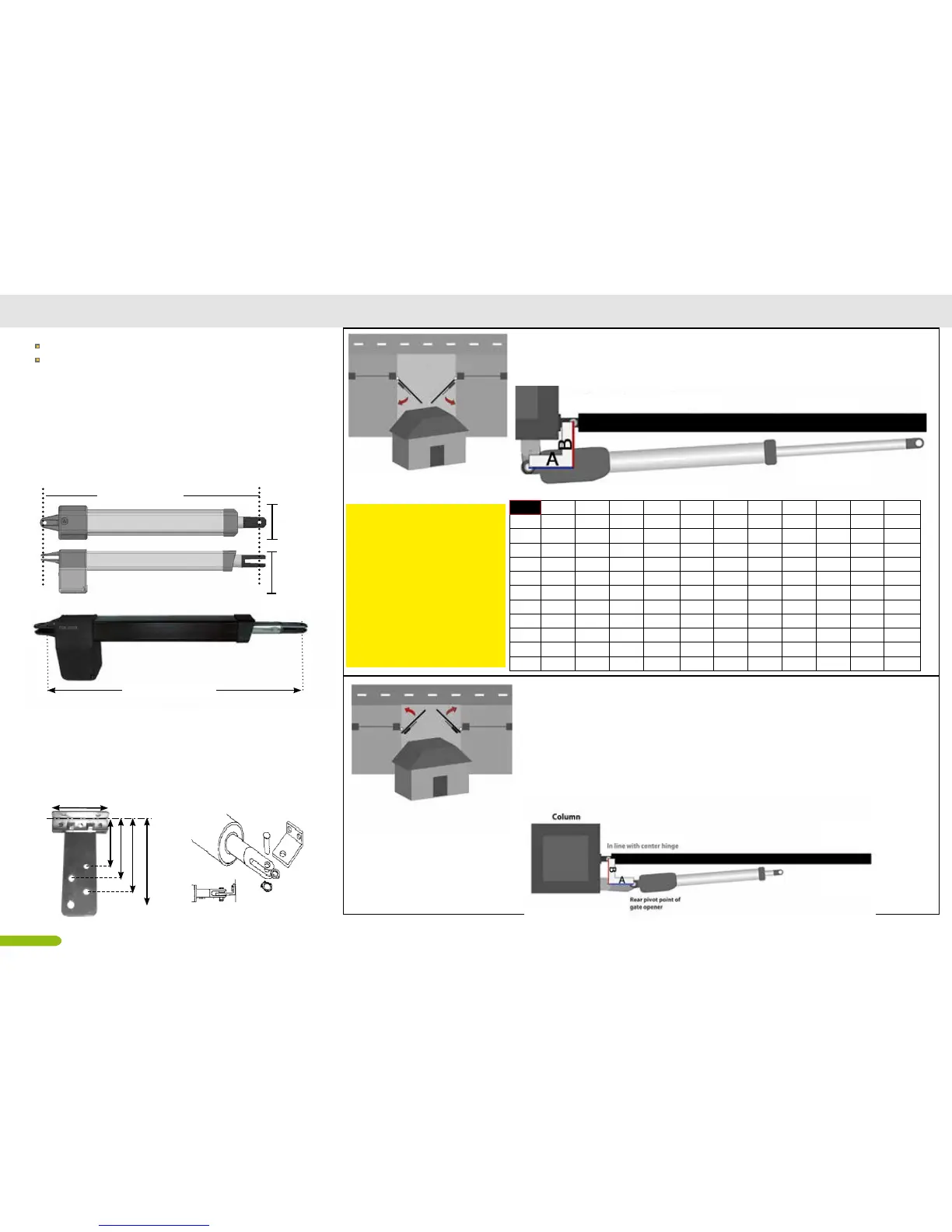

DUCATI actuator model HC512 Installation diagram
HC512
HC512 FC (with on board open position
mechanical limit)
each model is also available in 24V version
METRIC CONVERSION
1 cm = 1⁄2
”
= 0,3
”
10 cm = 4
”
12 cm = 4
3⁄4
”
= 4,7
”
14 cm = 5
1⁄2”
= 5,5“
16 cm = 6
1⁄5”
= 6,2
”
18 cm = 7
”
20 cm = 7
7/8”
= 7,87
”
25 cm = 9
3/4"
= 9,8
”
30cm = 11
8/9”
= 11,8
”
OUTSIDE
INSIDE
PUSH TO OPEN OPERATION (opens towards inside)
If your driveway slopes up after the gate, preventing it from swin-
ging in. This means the gate operator is mounted on the inside
of the property and pushes your gate out away from the property.
Warning: only compatible with telescopic tube actuators, Check
the overall dimensions before installation.
Warning:remember to reverse the polarity of the motor cables
when connecting to the electronic board
Maximal wing dimension:
Maximal wing lenght: up to 4m/ 14 ft
Maximal wing weight: up to 400kg/ 860lb
A = min. 8cm max. 14cm
B = min. 8cm max. 14cm
10
cm
820÷1320 mm
16
cm
PULL TO OPEN OPERATION ( opens towards inside)
This means the gate operator is mounted on the inside of the property
and pulls your gate in towards the property to open.
OUTSIDE
INSIDE
Rear pivot point of gate opener
In line with center hinge
TAB
A= 8cm A= 10cm A= 12cm A= 14cm A= 16 cm A= 18cm A= 20cm A= 22cm A= 24cm A= 26cm A= 28cm
B= 8cm
16 sec/97° 18sec/110° 21sec/118° 23sec/125° 23sec/130° 24sec/135° 26sec/137° 27sec/115° 31sec/108° 32sec/103° 32sec/105°
B= 10cm
18sec/98° 19sec/107° 22sec/114° 23sec/121° 25sec/127° 27sec/131° 27sec/125° 29sec/115° 31sec/108° 32sec/103° 33sec/99°
B= 12cm
20sec/98° 23sec/105° 24sec/112° 26sec/118° 27sec/124° 29sec/127° 30sec/120° 33sec/110° 34sec/104° 35sec/100° 369sec/96°
B= 14cm
21sec/95° 24sec/103° 25sec/108° 27sec/105° 28sec/120° 30sec/125° 32sec/111° 33sec/105° 35sec/99° 36sec/95° 37sec/93°
B= 16cm
23sec/94° 25sec/102° 28sec/108° 30sec/103° 31sec/118° 33sec/113° 34sec/102° 35sec/98° 37sec/94° 38sec/90°
B= 18cm
26sec/94° 27sec/100° 29sec/106° 32sec/111° 33sec/115° 34sec/105° 36sec/97° 36sec/93° 38sec/90°
B= 20cm
28sec/94° 30sec/100° 32sec/105° 34sec/109° 35sec/103° 37sec/96° 40sec/90°
B= 22cm
29sec/93° 33sec/99° 33sec/103° 34sec/106° 37sec/95° 38sec/90°
B= 24cm
32sec/93 34sec/99 36sec/102 37sec/93°
B= 26cm
34sec/93° 36sec/98° 37sec/92°
B= 30cm
38sec/93°
820 -1320 mm
Supplied xing braket:
choose the hole most suitable to your gate. you
can cut the plate if necessary
D= 9 cm
D= 11cm D= 13cm D= 15,5 cm
10cm
Post xing
Front xing
