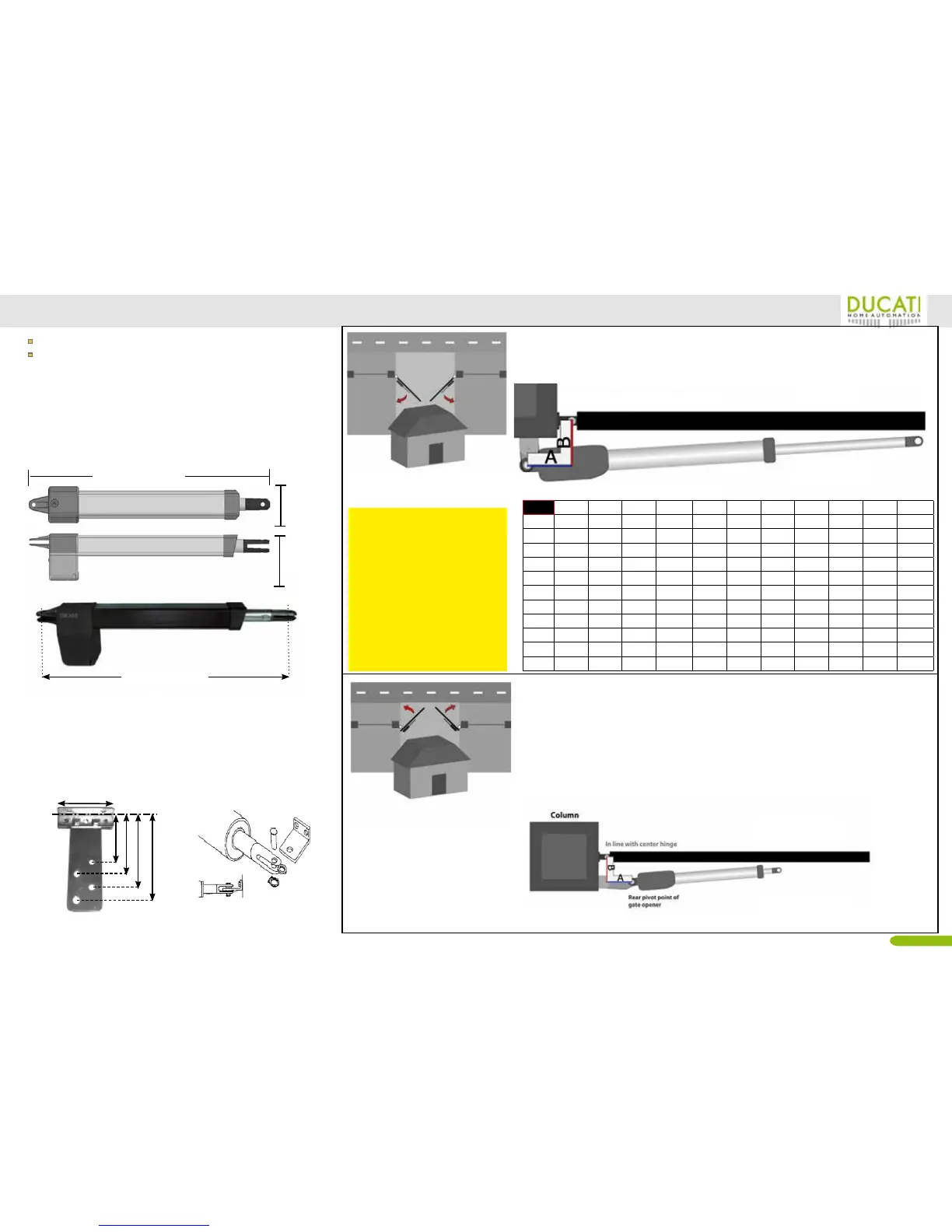

DUCATI actuator model HC512 Installation diagram
DUCATI actuator model HC612 Installation diagram
HC612
HC612 FC (with on board open position mechanical
limit)
each model is also available in 24V version
OUTSIDE
INSIDE
PUSH TO OPEN OPERATION (opens towards outside)
If your driveway slopes up after the gate, preventing it from swin-
ging in. This means the gate operator is mounted on the inside
of the property and pushes your gate out away from the property.
Warning: only compatible with telescopic tube actuators, Check
the overall dimensions before installation.
Warning:remember to reverse the polarity of the motor cables
when connecting to the electronic board
Supplied xing braket:
choose the hole most suitable to your gate. you
can cut the plate if necessary
A = min. 8cm max. 14cm
B = min. 8cm max. 14cm
PULL TO OPEN OPERATION ( opens towards inside)
This means the gate operator is mounted on the inside of the property
and pulls your gate in towards the property to open.
OUTSIDE
INSIDE
Rear pivot point of gate opener
In line with center hinge
D= 9 cm
D= 11cm D= 13cm D= 15,5 cm
10cm
Post xing
Front xing
100
mm
160
mm
920÷1520 mm
920 -1520 mm
METRIC CONVERSION
1 cm = 1⁄2
”
= 0,3
”
10 cm = 4
”
12 cm = 4
3⁄4
”
= 4,7
”
14 cm = 5
1⁄2”
= 5,5“
16 cm = 6
1⁄5”
= 6,2
”
18 cm = 7
”
20 cm = 7
7/8”
= 7,87
”
25 cm = 9
3/4"
= 9,8
”
35cm = 13
4/5
= 13,7
”
TAB
A= 8cm A= 10cm A= 12cm A= 14cm A= 16 cm A= 18cm A= 20cm A= 22cm A= 24cm A= 26cm A= 28cm
B= 8cm
16 sec/97° 18sec/110° 21sec/118° 23sec/125° 23sec/130° 24sec/135° 26sec/137° 27sec/115° 31sec/108° 32sec/103° 32sec/105°
B= 10cm
18sec/98° 19sec/107° 22sec/114° 23sec/121° 25sec/127° 27sec/131° 27sec/125° 29sec/115° 31sec/108° 32sec/103° 33sec/99°
B= 12cm
20sec/98° 23sec/105° 24sec/112° 26sec/118° 27sec/124° 29sec/127° 30sec/120° 33sec/110° 34sec/104° 35sec/100° 369sec/96°
B= 14cm
21sec/95° 24sec/103° 25sec/108° 27sec/105° 28sec/120° 30sec/125° 32sec/111° 33sec/105° 35sec/99° 36sec/95° 37sec/93°
B= 16cm
23sec/94° 25sec/102° 28sec/108° 30sec/103° 31sec/118° 33sec/113° 34sec/102° 35sec/98° 37sec/94° 38sec/90°
B= 18cm
26sec/94° 27sec/100° 29sec/106° 32sec/111° 33sec/115° 34sec/105° 36sec/97° 36sec/93° 38sec/90°
B= 20cm
28sec/94° 30sec/100° 32sec/105° 34sec/109° 35sec/103° 37sec/96° 40sec/90°
B= 22cm
29sec/93° 33sec/99° 33sec/103° 34sec/106° 37sec/95° 38sec/90°
B= 24cm
32sec/93 34sec/99 36sec/102 37sec/93°
B= 26cm
34sec/93° 36sec/98° 37sec/92°
B= 35cm
38sec/93°
Maximal wing dimension:
Maximal wing lenght: up to 5m/ 16 ft
Maximal wing weight: up to 500kg/ 110lb
