Ducati Monster 796 2011 User Manual

23
E

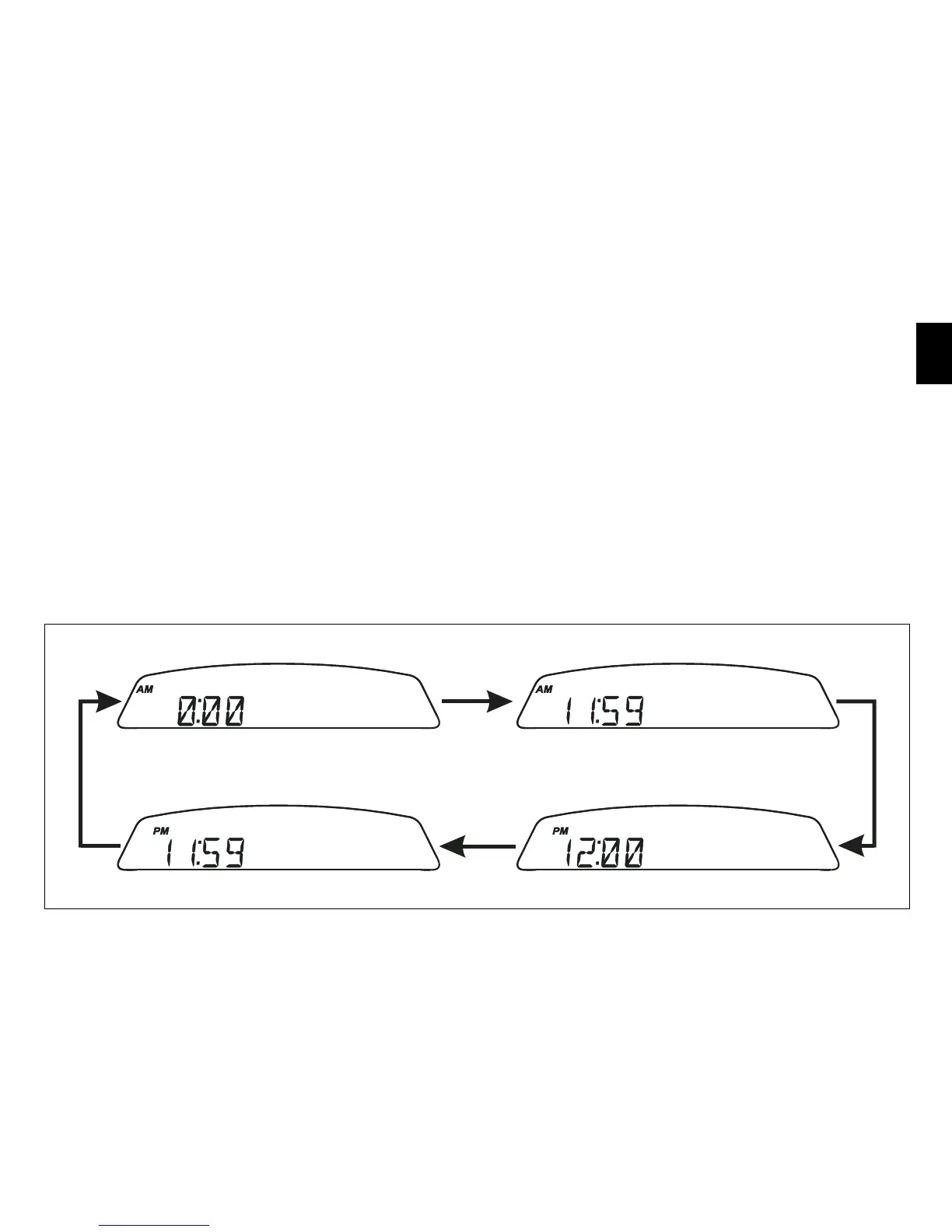

Clock display indicator
This function shows the time.
Time is always displayed as follows:
AM from 0:00 to 11:59
PM from 12:00 to 11:59
If battery power is suddenly cut off (Batt-OFF), when battery
power is restored and upon next Key-On, the clock is reset
and restarts operating from ”0:00”.
fig. 15

Ducati Monster 796 2011 Specifications

General

Displacement	803 cc
Compression Ratio	11:1
Power	87 hp (64 kW) @ 8250 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	Lightweight 2-1-2 system with catalytic converter and lambda probe
Transmission	6-speed
Final Drive	Chain; Front sprocket 15; Rear sprocket 39
Frame	Tubular steel Trellis frame
Front Suspension	43 mm upside-down fork
Front Wheel Travel	120 mm (4.7 in)
Rear Wheel Travel	148 mm (5.8 in)
Front Brake	2 x 320 mm discs, 4-piston radial caliper
Rear Brake	245 mm disc, 2-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Dry Weight	167 kg (368 lb)
Seat Height	800 mm (31.5 in)
Engine Type	L-Twin, Desmodromic, 2 valves per cylinder, air cooled
Bore x Stroke	88 mm x 66 mm
Torque	78 Nm @ 6250 rpm
Rear Suspension	Progressive linkage with preload and rebound adjustable monoshock
Fuel Capacity	15 L
