Ducati Monster 796 2011 User Manual

38
E

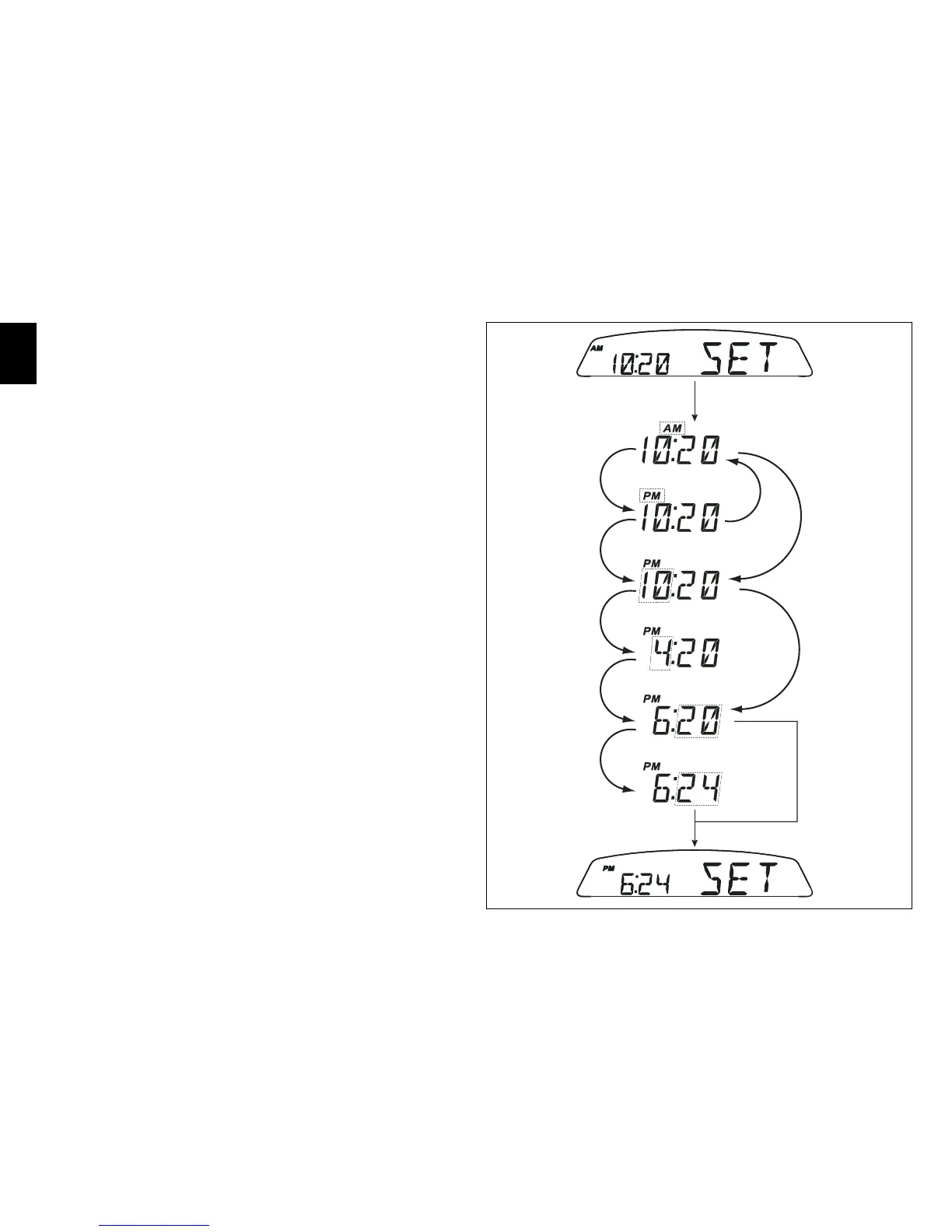

Clock setting function
This function is used to set the clock time.
To set the clock, access the ”SET” page in the menu.
Setting the time.
Holding switch (1, fig. 10) pressed in position B “▼“ for 3
seconds in this menu page gives access to the setup mode.
On entering this function, the message “AM” flashes on the
display; if you press switch (1, fig. 10) in position B “▼” the
message “PM” flashes; if you press switch (1, fig. 10) in
position B “▼” the mode will go back to previous setting (if
it is 00:00, when toggling from “AM” to “PM”, 12:00 will be
displayed).
Pressing switch (1, fig. 10) in position A ”▲” gives access to
the hour setting mode; hours start to flash. Each time you
press the button in position B ”▼”, the digit will increase by
one hour. If the switch is held pressed in position B “▼” the
number increases cyclically in steps of one hour every
second (when the switch is held depressed, the hours do not
flash).
Pressing switch (1, fig. 10) in position A ”▲” gives access to
the minute setting mode; minutes start to flash. Each time
you press the button in position B ”▼”, the digit will increase
by one minute. If you hold the switch down in position B
“▼”, the count increases cyclically in steps of 1 minute every
second. If the button is held depressed in position B ”▼” for
over 5 seconds, minutes will increase by 1 minute every
100ms (while the button is held depressed in position B ”▼”,
seconds will not flash).
Pressing the button in position A ”▲”, exits setup mode and
the new time is displayed.
fig. 30
set
B
flash
Press B (for 3 secs.)
A
A
A
B
flash
flash
flash
set
flash
A
B
B
A
A

Ducati Monster 796 2011 Specifications

General

Displacement	803 cc
Compression Ratio	11:1
Power	87 hp (64 kW) @ 8250 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	Lightweight 2-1-2 system with catalytic converter and lambda probe
Transmission	6-speed
Final Drive	Chain; Front sprocket 15; Rear sprocket 39
Frame	Tubular steel Trellis frame
Front Suspension	43 mm upside-down fork
Front Wheel Travel	120 mm (4.7 in)
Rear Wheel Travel	148 mm (5.8 in)
Front Brake	2 x 320 mm discs, 4-piston radial caliper
Rear Brake	245 mm disc, 2-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Dry Weight	167 kg (368 lb)
Seat Height	800 mm (31.5 in)
Engine Type	L-Twin, Desmodromic, 2 valves per cylinder, air cooled
Bore x Stroke	88 mm x 66 mm
Torque	78 Nm @ 6250 rpm
Rear Suspension	Progressive linkage with preload and rebound adjustable monoshock
Fuel Capacity	15 L
