Ducati Scrambler Valve Measurement And Adjustment User Guide

http://www.ducatitoolrental.com/
4
Checking Valve Clearances
Before the clearances can be checked there is some disassembly required. Try and
have as little fuel as possible in the gas tank before beginning this procedure. It is
easiest to measure all the clearances prior to disassembling the valve train to
replace the shims.
1. Place the motorcycle on a swing arm stand, transmission in neutral.
2. Remove the seat.
3. Remove the fuel tank.
4. Remove the blow-by (part of the air box)
5. Remove the following components from the electrical component box:
a. Battery
b. Starter Relay
c. Fuse box

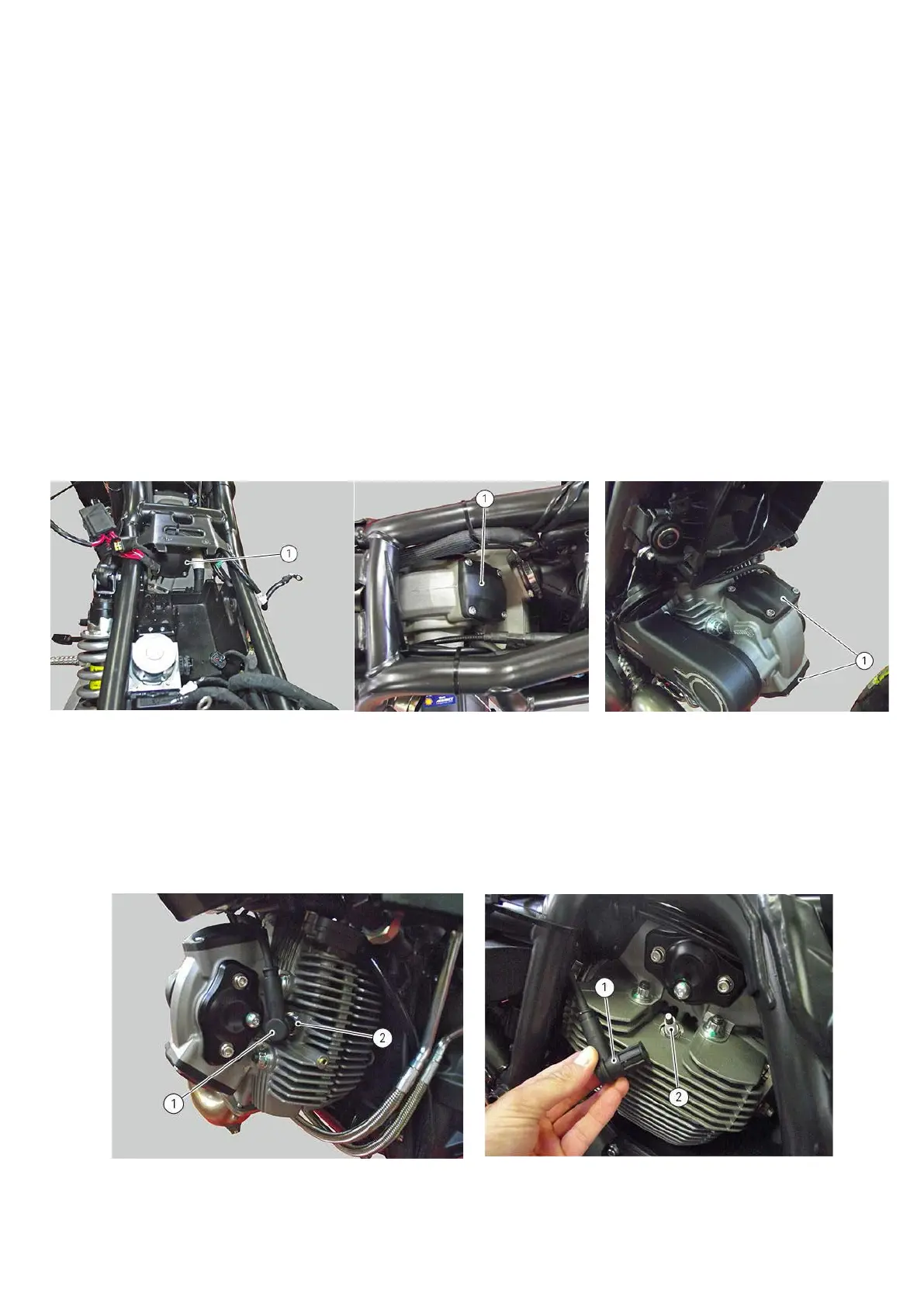

6. Remove the cylinder head valve covers (1) ,be careful if not replacing the
gaskets with new ones
Vertical Cylinder Vertical Cylinder Horizontal Cylinder
Remove the Spark Plugs
Remove the spark plug boots (1) and the spark plugs (2) from the horizontal and
vertical cylinders.

Ducati Scrambler Specifications

General

Power	73 hp (54 kW) @ 8, 250 rpm
Transmission	6-speed
Frame	Tubular steel trellis frame
Torque	49 lb-ft (67 Nm) @ 5, 750 rpm
Front Suspension	USD Kayaba 41 mm fork
Rear Suspension	Kayaba rear shock, preload adjustable
Rear Brake	245 mm disc, single-piston caliper
Fuel Tank Capacity	13.5 l (3.6 US gal)
Front Brake	330mm disc, radial 4-piston caliper, ABS
