Dukane Projectors - For 3000 & 4000 Lumen Models

8

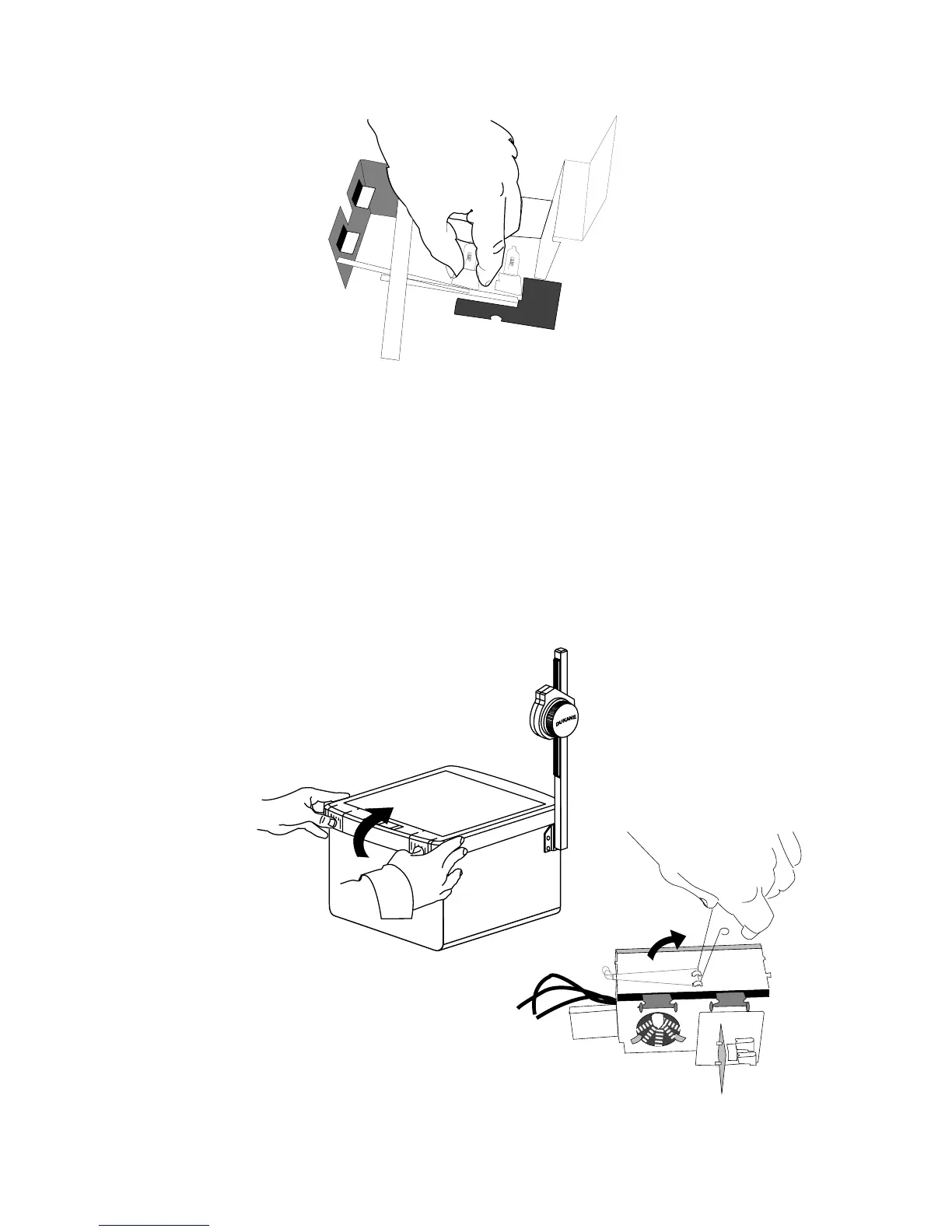

Lamp replacement, SP4xxx and SP3xxx units:
1. Open unit stage by depressing the latch tabs on front of stage
and lifting (Step 1). Remove the stage.
2. Pull up retainer clip wires and rotate lamp cover into open
position (Step 2).
Carefully pull out bulb.
S TEP 2 —
FOR 2000 LUMEN MODELS —
FOR 3000 & 4000 LUMEN MODELS —
Pull up retainer clip and
rotate open the lamp cover.
S TEP 2 —
Open stage.
S TEP 1 —
