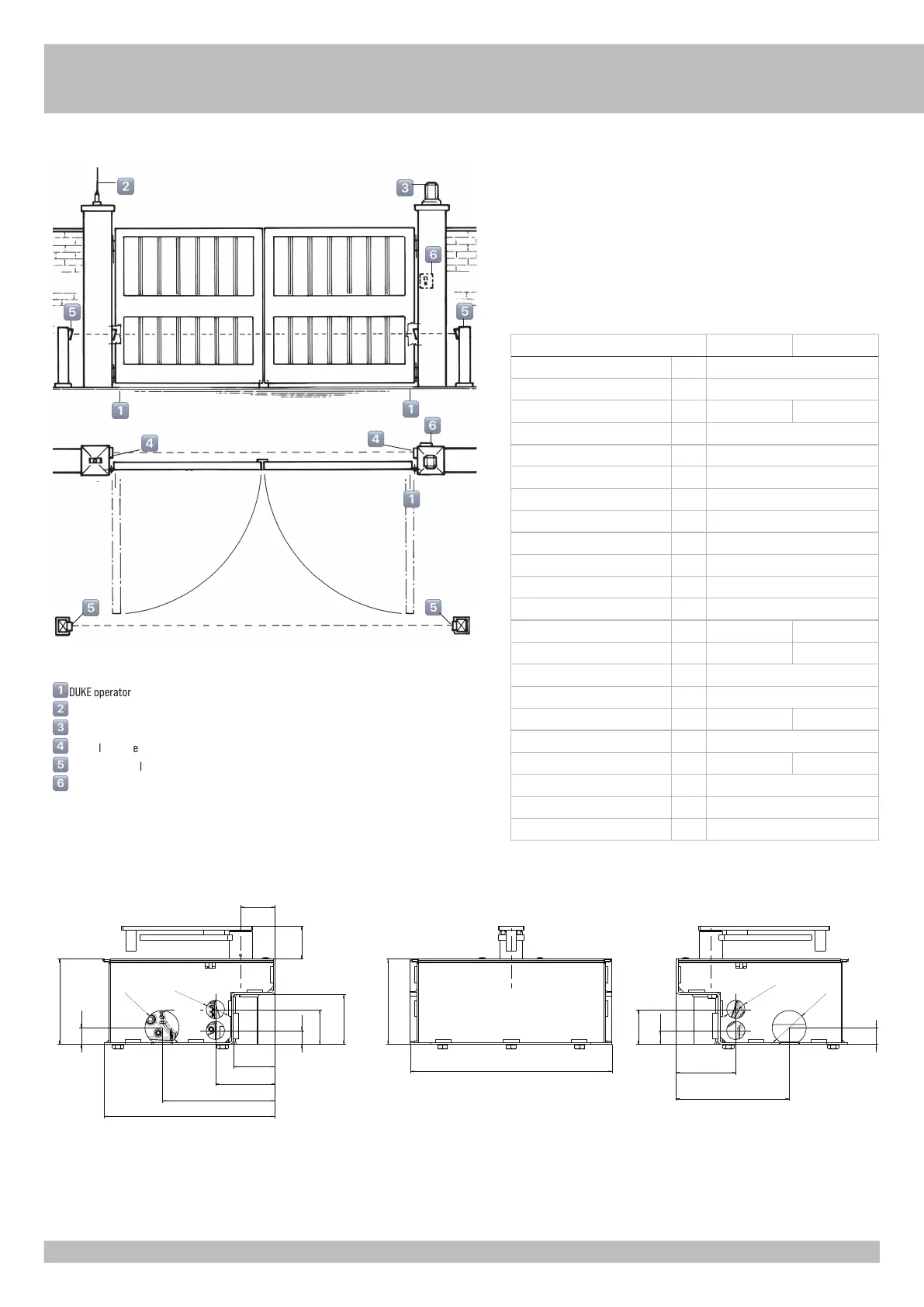

SYSTEM LAY-OUT
Measurements in mm
TECHNICAL FEATURES
The DUKE is an irreversible operator complete with mechanical limit switches and
a trafficable cover.
DUKE 110° varying the speed of the opening and closing movements (opening
movement initially slow, then fast; closing movement initially fast, then slow
immediately before shutting).
The DUKE functions as a load-bearing centre hinge, designed in such a way that
the motor can be removed for servicing purposes without taking down the gate.
The DUKE will comfortably operate gates and doors up to 800 kg in weight and 2
metres in length.
* For leaves longer than 2 m it is suggested fitting an electro-lock
1
G
B
TECHNICAL DATA DUKE 110° DUKE 180°
Max. leaf weight kg 3,5*
Max. leaf weight kg 800 (2 m) - 400 (3,5 m)
Average opening time s. 20 30
Max torque Nm 330
EEC Power supply 230V~ 50/60Hz
Motor capacity W 302
Power absorbed A 1,5
Capacitor µF 10
Power supply 120V 120V~ 60Hz
Thrust force with constant turns
N 352
Power absorbed A 3,7
Capacitor µF 35
Normative cycles 230V/50-60Hz n° 8 - 20s/2s 6 - 30s/2s
Normative cycles 120V/60Hz n° 14 - 20s/2s 9 - 30s/2s
Daily operations suggested n° 100
Service 50%
Guaranteed consecutive cycles
n° 22 - 20s/2s 13 - 30s/2s
Lubrification with grease
Weight of operator + its box kg 21 35
Noise db <70
Working temperature °C -10 ÷ +55
Protection IP 67
163
Ø35
163
385
66
327
67
Ø35
62
67
27
80
114
95
114
27
Ø65
32
216
216
32
Ø65
DUKE operator
Radio antenna
Blinker
Photoelectric cells (external)
Photoelectric cells (internal)
Key selector
