Duke IRHS22 - Kitchen Minder Connections; Stacking Units

IRHS Holding Unit
Restaurant Equipment Manual
12
STACKING UNITS
The IRHS Holding Unit is designed to allow limited stacking capabilities. This section outlines how to safely
stack the holding unit.

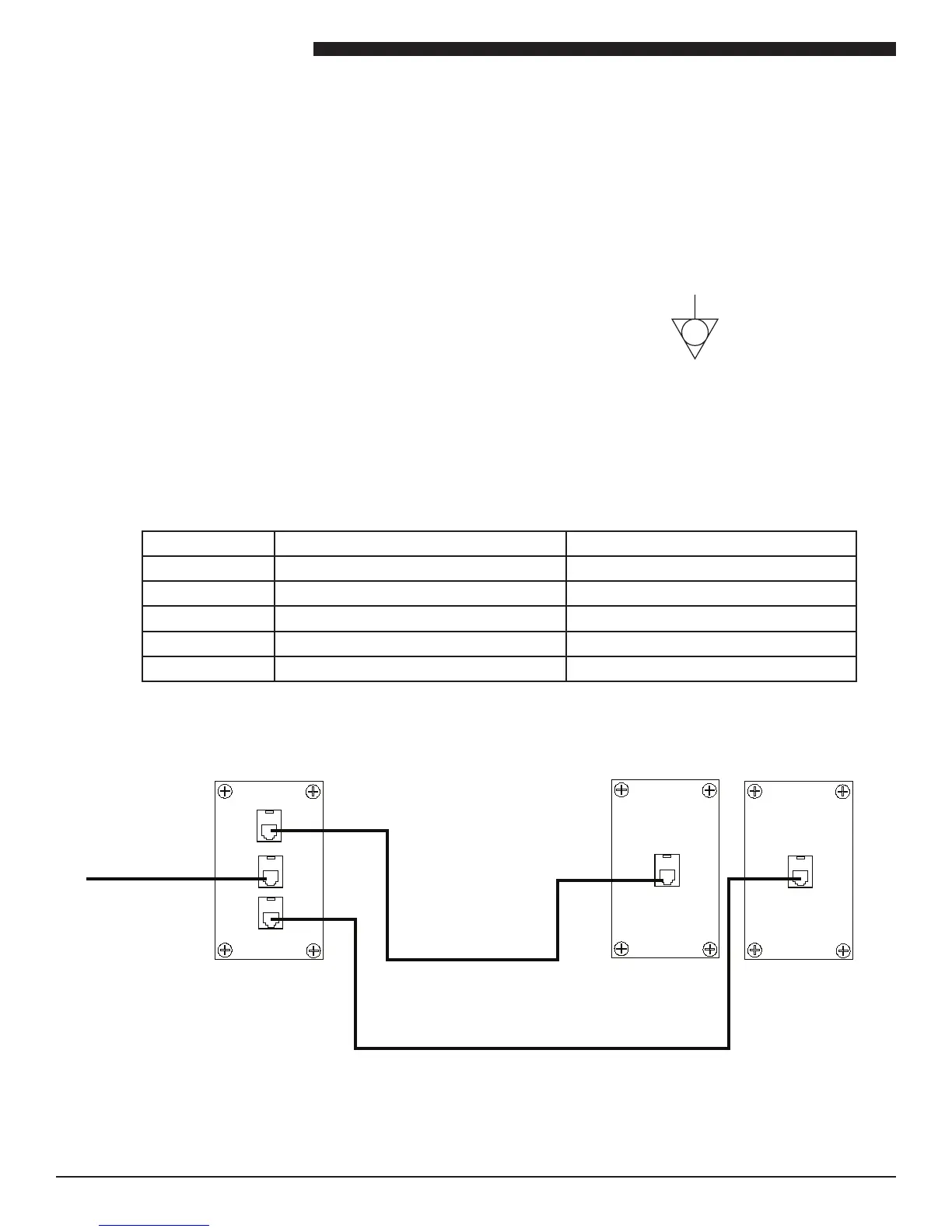

KITCHEN MINDER CONNECTIONS
(OPTIONAL UPGRADE; NOT AVAILABLE ON STANDALONE UNIT)
IRHS
(MASTER)
CONNECTION
CABLE (RJ12’s)
IRHS
(SATELLITE 1)
IRHS
(SATELLITE 2)
CONNECTION
CABLE (RJ12’s)
RJ45 TO
KITCHEN
MINDER
WRM 2
WRM 3
MASTER SATELLITE 1 (WMR 2) SATELLITE 2 (WMR 3)
IRHS22 IRHS22, IRHS23, IRHS24, IRHS42 IRHS22, IRHS23, IRHS24, IRHS42
IRHS23 IRHS22, IRHS23, IRHS24, IRHS42 IRHS22, IRHS23, IRHS24, IRHS42
IRHS24 IRHS22, IRHS23, IRHS24, IRHS42 IRHS22, IRHS23, IRHS24, IRHS42
IRHS34 NOT AVAILABLE IRHS22, IRHS23, IRHS24, IRHS42
IRHS42 IRHS22, IRHS23, IRHS24, IRHS42 IRHS22, IRHS23, IRHS24, IRHS42
*IF A IRHS34 IS USED AS SATELLITE 2 THIS ELIMINATES THE CAPABILITY OF A SATELLITE 1
EARTHING INSTRUCTIONS
THE UNIT MUST BE GROUNDED. Earthing reduces
risk of electric shock by providing an escape wire for
the electric current if an electrical short occurs. This
unit is equipped with a cord having a earthing wire
with a earthing plug. The plug must be plugged into a
receptacle that is properly installed and earthed.
Consult a qualied electrician or service agent
if grounding instructions are not completely
understood, or if doubt exists as to whether the unit
is properly earthed.
DO NOT USE AN EXTENSION CORD. If the product
power cord is too short, have a qualied electrician
install a three-slot receptacle (or the country specic
receptacle for International Units). This unit should
be plugged into a separate circuit with the electrical
rating as provided on the product data plate.
EXTERNAL EQUIPOTENTIAL BONDING
TERMINAL (EXPORT ONLY)
This equipment has supplemental bonding
terminal. The terminal provides an external bonding
connection used in addition to the earthing prong
on the plug. The terminal provides a connection for
bonding to the equipment enclosure. The external
equipotential bonding terminal is located on the rear
outside surface of the unit, the terminal is marked
with this symbol.
