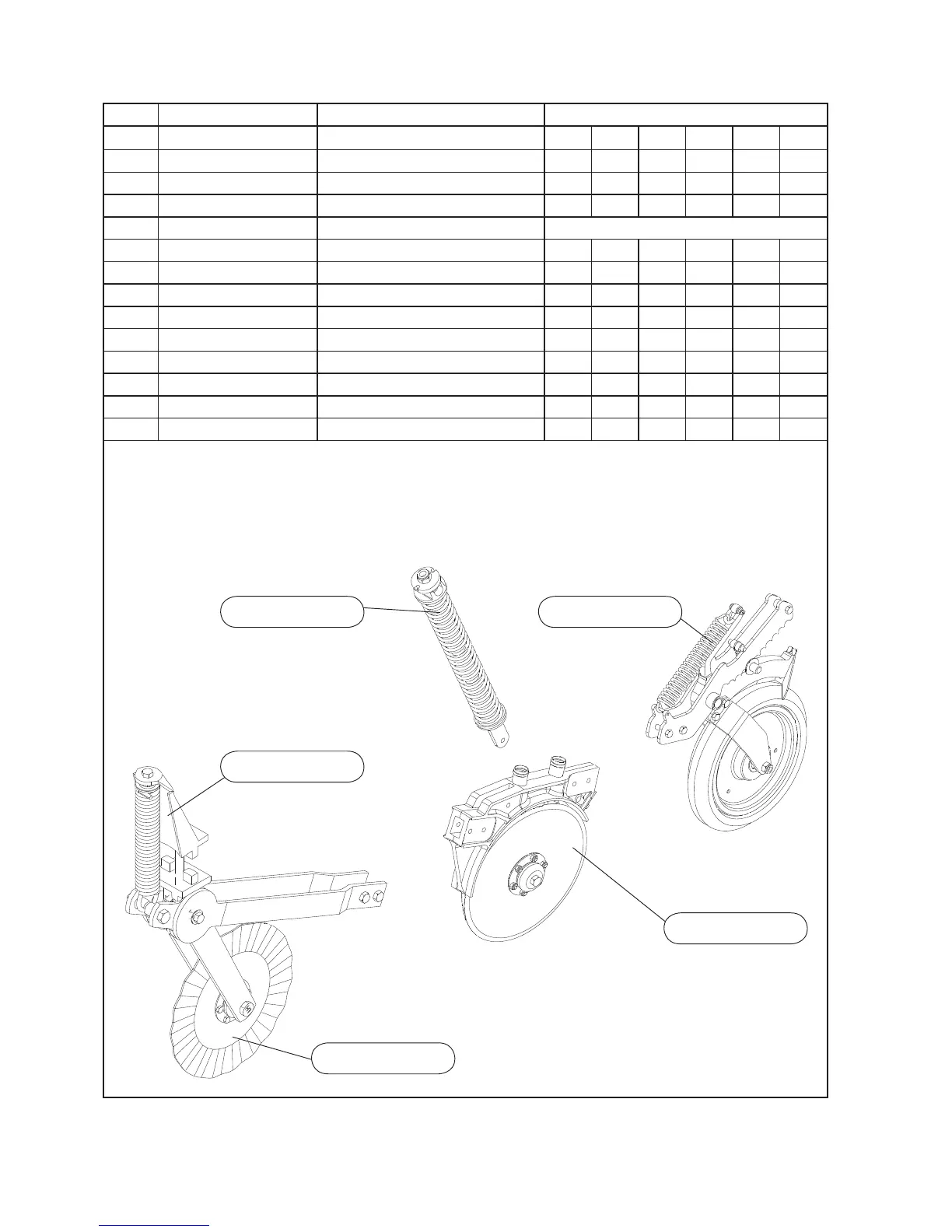

‘Enviro’ Seed Drill Coulter Assembly
ITEM PART No. DESCRIPTION QUANTITIES
15R 17R 19R 21R 23R 26R
1 Refer P 46/47 Front Disc & Springs Assembly 15 17 19 21 23 26
2 Refer P 48/49 Double Disc Assembly 15 17 19 21 23 26
3 Refer P 50/51 Press Wheel Assembly 15 17 19 21 23 26
4 Refer P 52 Optional Press Wheels As Required
5 22057 LH Mounting Bracket 7 8 9 10 11 13
6 22058 RH Mounting Bracket 7 8 9 10 11 12
7 22060 Rubbing Block 150 mm Spacing 14 - 18 - 22 -
8 22067 Rubbing Block 135 mm Spacing - - - 20 - -
9 22068 Rubbing Block 130 mm Spacing - 16 - - - 25
10 45031 M12 x 100 Class 8.8 Z/P Bolt 444444
11 45032 M12 x 110 Class 8.8 Z/P Bolt 12 14 16 18 20 24
12 45139 M12 Nyloc Nut 16 18 20 22 24 28
13 45910 M6 x 25 Pan Hd Posidrive Screw 28 32 36 40 44 50
See Page 48 See Page 52
See Page 48
See Page 45
See Page 46
To Next Page
